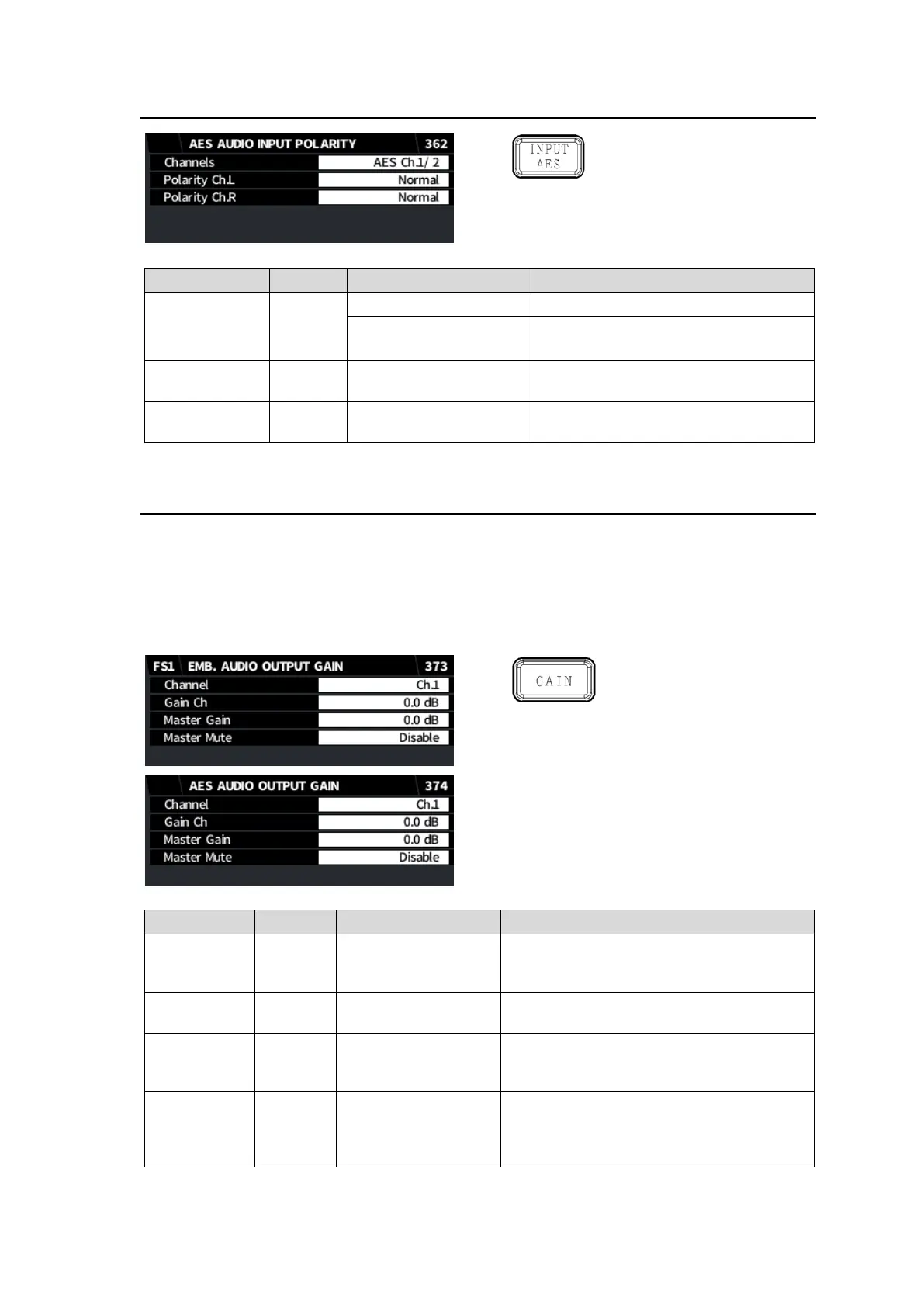

93
6-18. AES AUDIO INPUT POLARITY
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Item
Default
Setting
Description
Channels
-
AES Ch.1/2-7/8
Selects an AES input channel pair.
OP(AES) Ch.1/ 2-7/8
Selects an AES input channel pair.
(FA-96AES-UBL required)
Polarity Ch.L
Normal
Normal
Invert
Selects the polarity for the L (odd)
channel of the selected pair.
Polarity Ch.R
Normal
Normal
Invert
Selects the polarity for the R (even)
channel of the selected pair.
6-19. AUDIO OUTPUT GAIN
Allows you to adjust output audio gain for the following channels:
SDI output audio (EMB. AUDIO OUTPUT MAPPING menu, 345)
AES output audio (AES AUDIO OUTPUT MAPPING menu, 347)
Allowable gain adjustment ranges from -20 dB to 20 dB with Master Gain and individual channel
Gain. Gain values exceeding these limits are clipped and set to the respective limit value.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Item
Default
Setting
Description
Channel
-
EMB: Ch.1-16
AES: Ch1-8.
OP(AES): Ch.1-8
Selects a channel from each audio output.
(OP(AES) represents the FA-96AES-UBL
card.)
Gain Ch
0.0dB
-20.0dB to +20.0dB
Sets the gain for the selected audio
channel.
Master Gain
0.0dB
-20.0dB to +20.0dB
Sets the all channelsgain offset
respectively for FS1 embedded, FS2
embedded, AES and optional AES audio.
Master Mute
Disable
Disable
Enable
Enable: Mutes (sets to silent) all linear
PCM audio channels respectively for FS1
embedded, FS2 embedded, AES and
optional AES audio.
