153
11-3-7. Audio Gain (FS 1 / FS 2 / AES / Option)

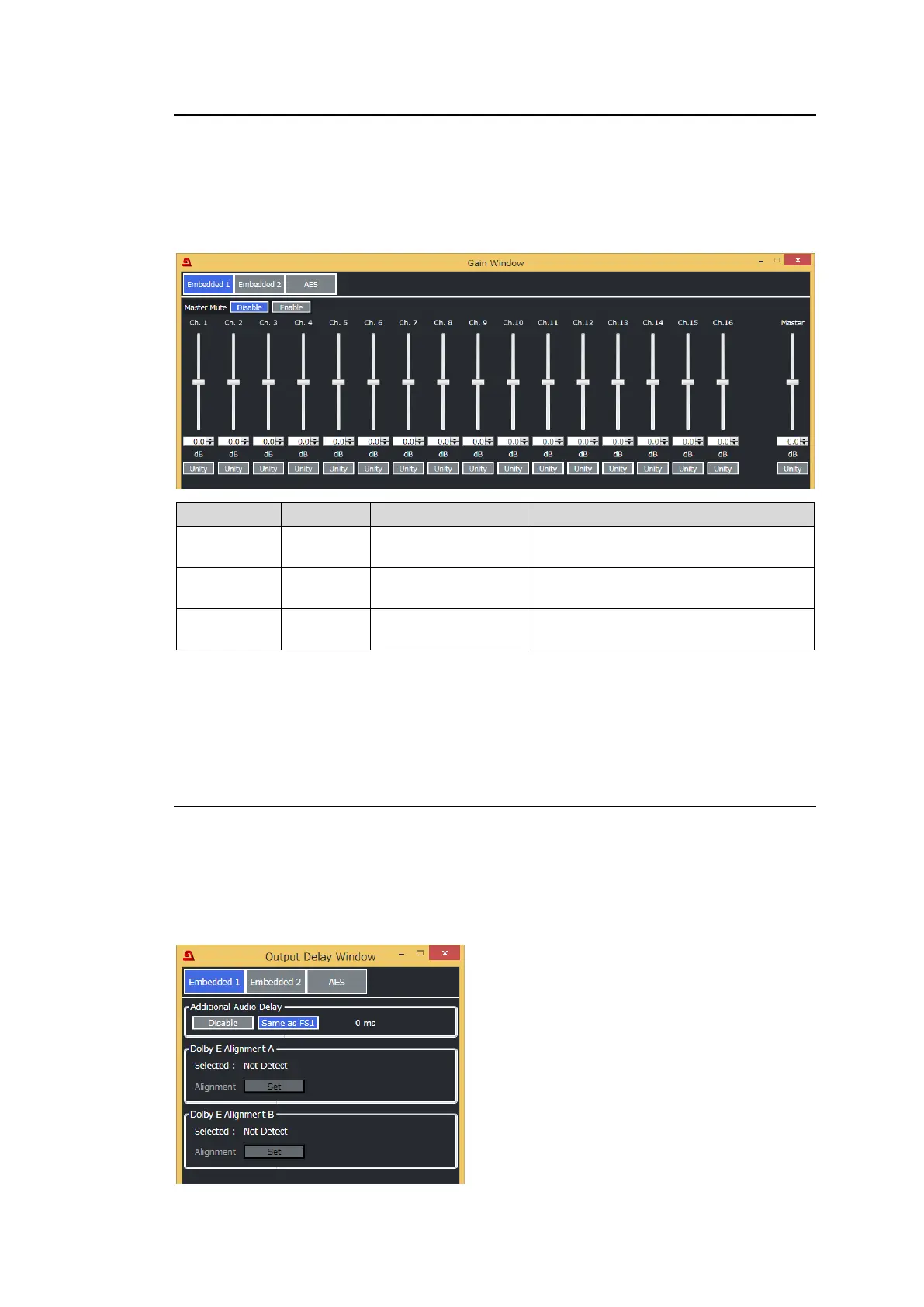

Click FS 1 Gain, FS 2 Gain, AES Gain or Option Gain in the Audio Block to display the Gain
Window, in which output audio can be gained or muted.
To set FS1 SDI embedded audio, click Embedded 1 to display the setting page.
To set FS2 SDI embedded audio, click Embedded 2 to display the setting page
Embedded Audio Setting
Item
Default
Setting
Description
Master Mute
Disable
Disable
Enable
Enable: Mutes all embedded audio
channels.
Ch.1 to 16
0.0dB
-20.0dB to +20.0dB
Sets the gain for each embedded audio
output channel.
Master
0.0dB
-20.0dB to +20.0dB
Sets the gain offset for all embedded
output channels.
To set Standard AES and optional FA-96AES-UBLC AES audio, click AES.
To set audio of the option card installed on Slot B (FA-96AES-UBL, FA-96ANA-AUD or
FA-96MADI), click Option B.
Set channel gains in the same manner as those for embedded audio.
11-3-8. Audio Delay (FS 1 / FS 2 / AES / Option)
Click FS 1 Output Delay, FS 2 Output Delay or AES/Option Output Delay in the Audio
Block to display the Output Delay Window, in which output audio and video can be aligned.
To set FS1 SDI embedded audio, click Embedded 1 to display the setting page.
To set FS2 SDI embedded audio, click Embedded 2 to display the setting page
Embedded Audio Setting
