Pre-process Amplifier/Post-process Amplifier
See Sec. 11-2-5-2. “Pre-process Amplifier/Post-process Amplifier” for menu details.
Dynamic Range / Color Space Conversion
Item
Default
Setting
Description
Dynamic
Range
Conversion
Bypass
Bypass
Operate
Setting to Operate enables
conversions using 3D-LUT.
3D-LUT
User 01:
See Sec. 5-7. “IN/OUT
GAMMA/COLOR
(FA-96AHDR2).”
Selects a 3D-LUT table.
Input >>
Output
Narrow >>
Narrow
Narrow >> Narrow
SDI >> SDI
Narrow >> SDI
SDI >> Narrow
Selects an "Input >> Output" range
pair for normalizing video data
between 0 and 1.
Narrow: 0x040 (64) - 0x3AC (940)
SDI: 0x004 (4) - 0x3FB (1019)
YCbCr Clip
See Sec. 11-2-5-7. “YCbCr Clip” for menu details.
11-2-5-1. Input / Output Gamma / Color (Dynamic Range Conversion)

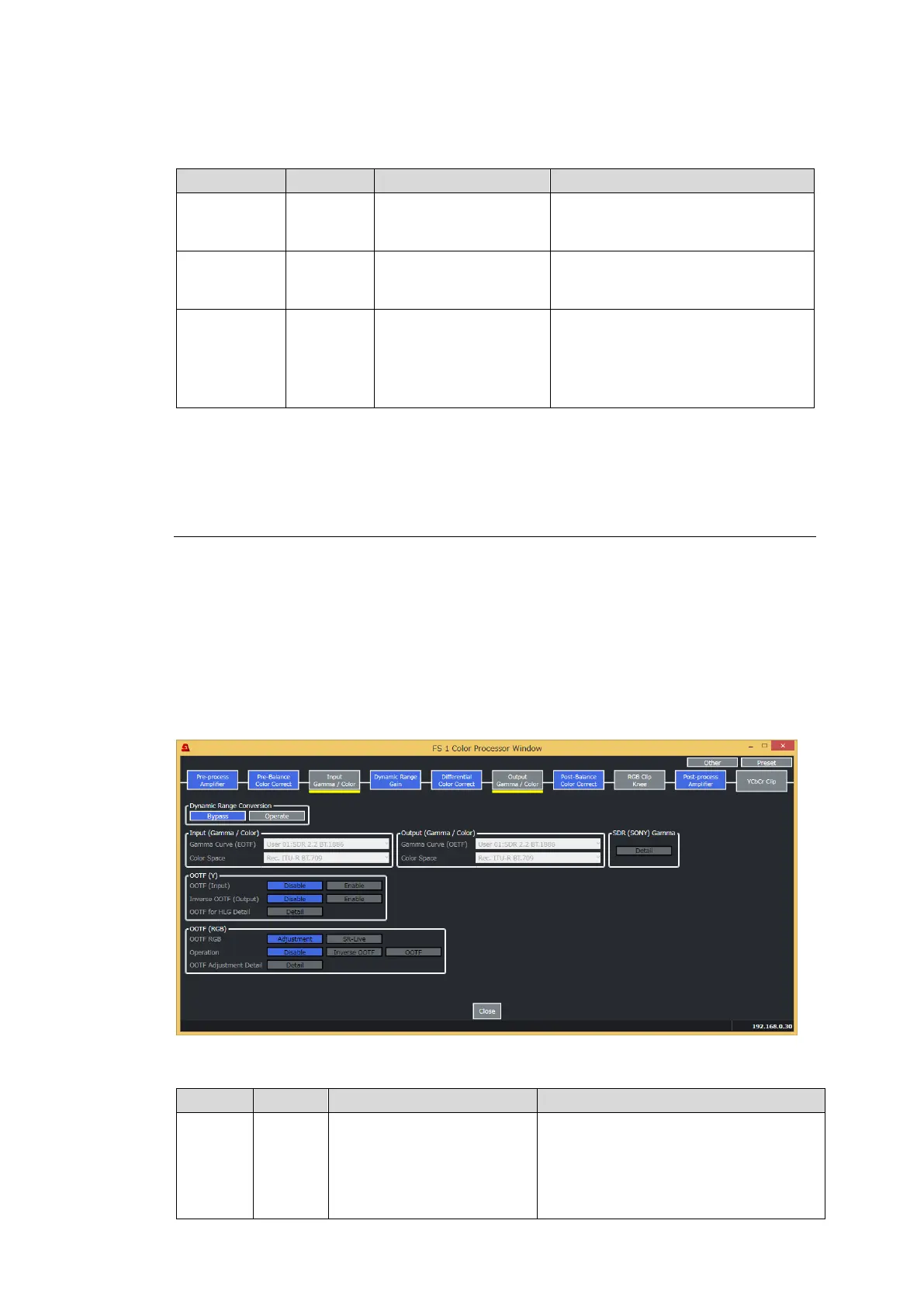

Click Color Processor 1 or Color Processor 2 in the Video Block and select Input Gamma /
Color or Output Gamma / Color to display the window as shown below.
Dynamic Range Conversion
Enables/disables DRC (Dynamic Range Conversion). If setting to Bypass, the DRC process
is bypassed. The following parameters are available when Dynamic Range Conversion is set
to Operate.
Using preset evets allows you to make settings easier, see Sec. 4-1 “Color Processer Setting
Example.”
Input (Gamma / Color)
Item
Default
Setting
Description
Gamma
Curve
(EOTF)
User 01:
SDR 2.2
BT.1886
User 01: SDR 2.2 BT.1886
User 02: SDR 2.4 BT.1886
User 03: HLG BT.2100
User 04: HLG (RGB SG1.2)
User 05: HLG (RGB SG1.4)
User 06: ST 2084 (PQ)
Selects a gamma curve for input.
Gamma setting data as shown at left are
respectively stored in files named User
01 to User 10.
Gamma data names and content can be
