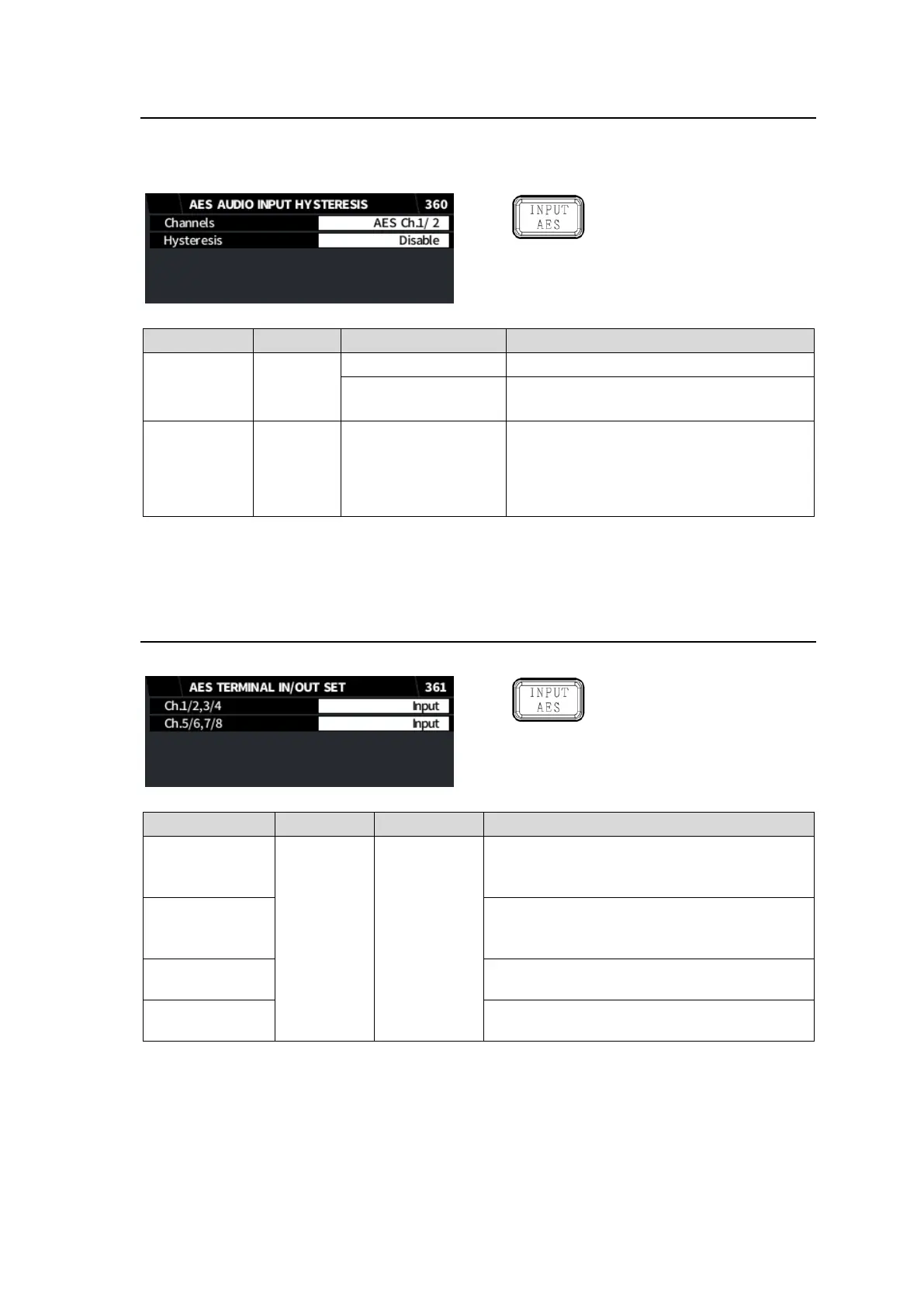

6-16. AES INPUT HYSTERESIS
Allows you to align timing of AES input channels by grouping them.
This function is useful for multi-channel audio input such as surround sound.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Item
Default
Setting
Description
Channels
-
AES Ch. 1/2-7/8
Selects an AES input channel pair.
OP(AES) Ch.1/ 2-7/8
Selects an AES input channel pair.
(FA-96AES-UBL required)
Hysteresis
Disable
Disable
Group A
Group B
Disable: Disables channel alignment.
Group A/B: Adds the channel pair to a
group (A or B) and aligns audio word timing
within the channel group by referring to the
smallest channel pair.
(*1)
(*1) If the reference audio is lost, the next smallest channel pair is used. Timing adjustment ranges within ±
0.25 samples.
Channel pairs in a group should be the same sampling rate and synchronized with each other.
6-17. AES TERMINAL IN/OUT SET
Allows you to select Input or Output for AES terminals.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Item
Default
Setting
Description
Ch.1/2,3/4
Input
Input
Output
Selects Input or Output for DIGITAL AUDIO
IN/OUT1/2 and 3/4 ports.
Fixed to Input if FA-96AES-UBLC installed.
Ch.5/6,7/8
Selects Input or Output for DIGITAL AUDIO
IN/OUT5/6 and 7/8 ports.
Fixed to Input if FA-96AES-UBLC installed.
Ch.1/2,3/4(OP)
Selects Input or Output for 1/2 and 3/4 ports
on FA-96AES-UBL.
Ch.5/6,7/8(OP)
Selects Input or Output for 5/6 and 7/8 ports
on FA-96AES-UBL.
