141
11-2-7. Output Select

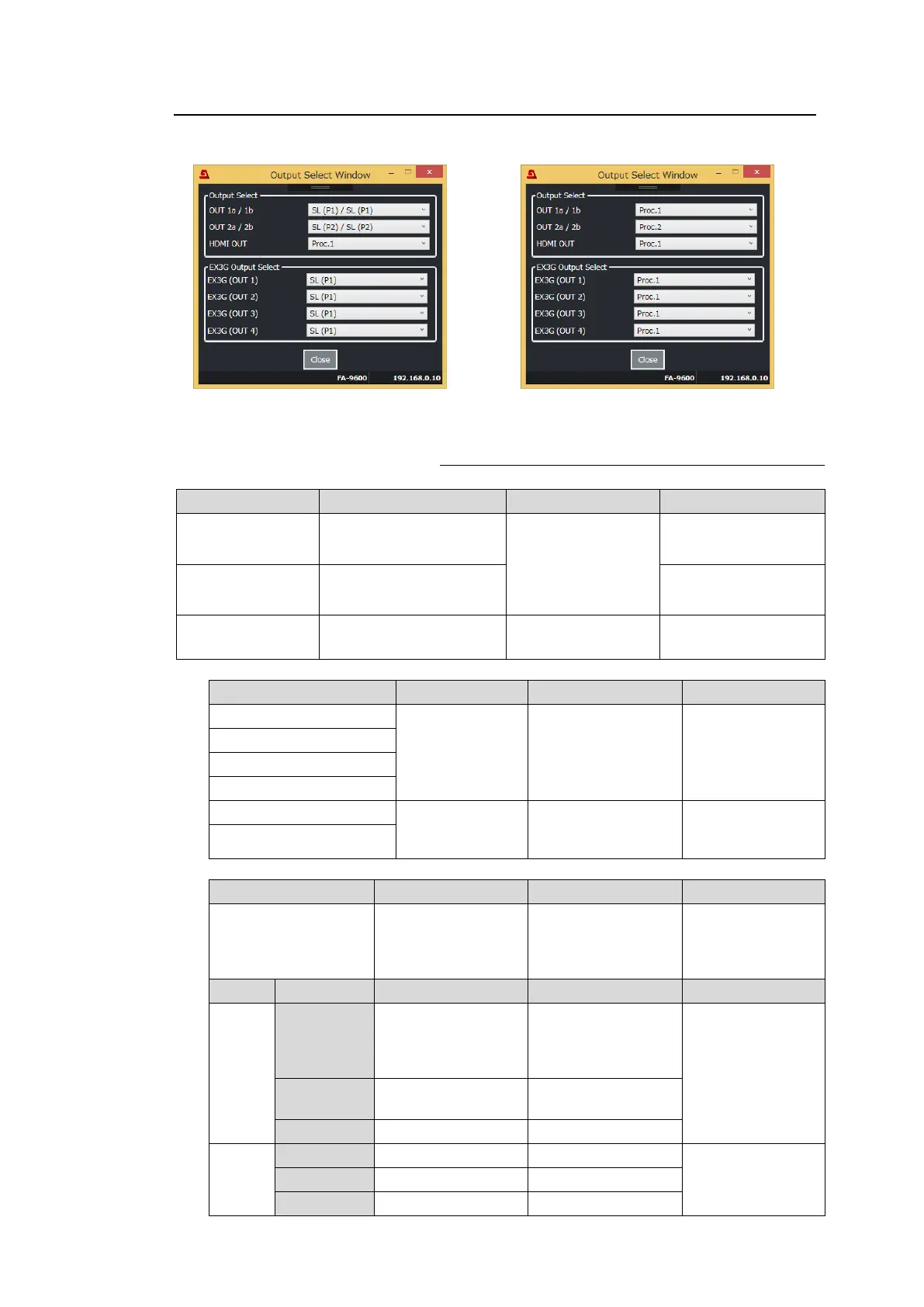

Click Output Select in the Video Block to display the window as shown below.
(Simultaneous 4K/HD mode)
(Dual HD mode)
<Simultaneous 4K/HD mode>
<3D-LUT mode>
SL: Single Link signal
DL: Single Link signal
QL: Quad Link signal
L1-L4: SDI Link number
P1, Proc.1:
Color Processor1 output(FS1)
P2, Proc. 2:
Color Processor2 output(FS2)
Proc. 2 is unavailable in 3D-LUT mode.
Item
Default
Setting
Description
OUT 1a / 1b
SL (Proc.1)
SL (Proc.1)
SL (Proc.2)
DL L1 / L2 (P1)
QL L1 / L2 (P1)
Selects an output
signal.
OUT 2a / 2b
SL (Proc.2)
Selects an output
signal.
HDMI OUT
Proc.1
Proc.1
Proc.2
Selects an HDMI
output signal.
If FA-96EX3G44-R or FA-96EX12G06 installed
Item
Default
Setting
Description
EX3G (OUT 1)
SL (Proc.1)
(See Sec. 5-19-1.
“OUTPUT
SELECT (Slot A)”)
Selects an output
signal for
FA-96EX3G44-R.
EX3G (OUT 2)
EX3G (OUT 3)
EX3G (OUT 4)
EX12G (OUT 1a / 1b / 2)
SL (Proc.1)
(See Sec. 5-19-1.
“OUTPUT
SELECT (Slot A)”)
Selects an output
signal for
FA-96EX12G06.
EX12G (OUT 3a / 3b / 4)
If FA-96SFPC4 installed
Item
Default
Setting
Description
UHD Link
Single Link
Single Link
Dual Link
Quad Link
Selects an SDI
Link format for
FA-96SFPC4
output.
Item
(UHD Link)
Default
Setting
Description
OUT
1/2
Single
SL (Proc.1)
SL (Proc.1)
SL (Proc.2)
SL (P1) / SL (P2)
SL (P2) / SL (P1)
Selects an output
signal for
FA-96SFPC4.
Dual
DL L1 (P1) / L2 (P1)
DL L1 (P1) / L2 (P1)
SL (Proc.2)
Quad
QL L1 (P1) / L2 (P1)
QL L1 (P1) / L2 (P1)
OUT
3/4
Single
SL (Proc.1)
(Same as OUT 1/2)
Selects an output
signal for
FA-96SFPC4.
Dual
DL L1 (P1) / L2 (P1)
(Same as OUT 1/2)
Quad
QL L3 (P1) / L4 (P1)
QL L3 (P1) / L4 (P1)
