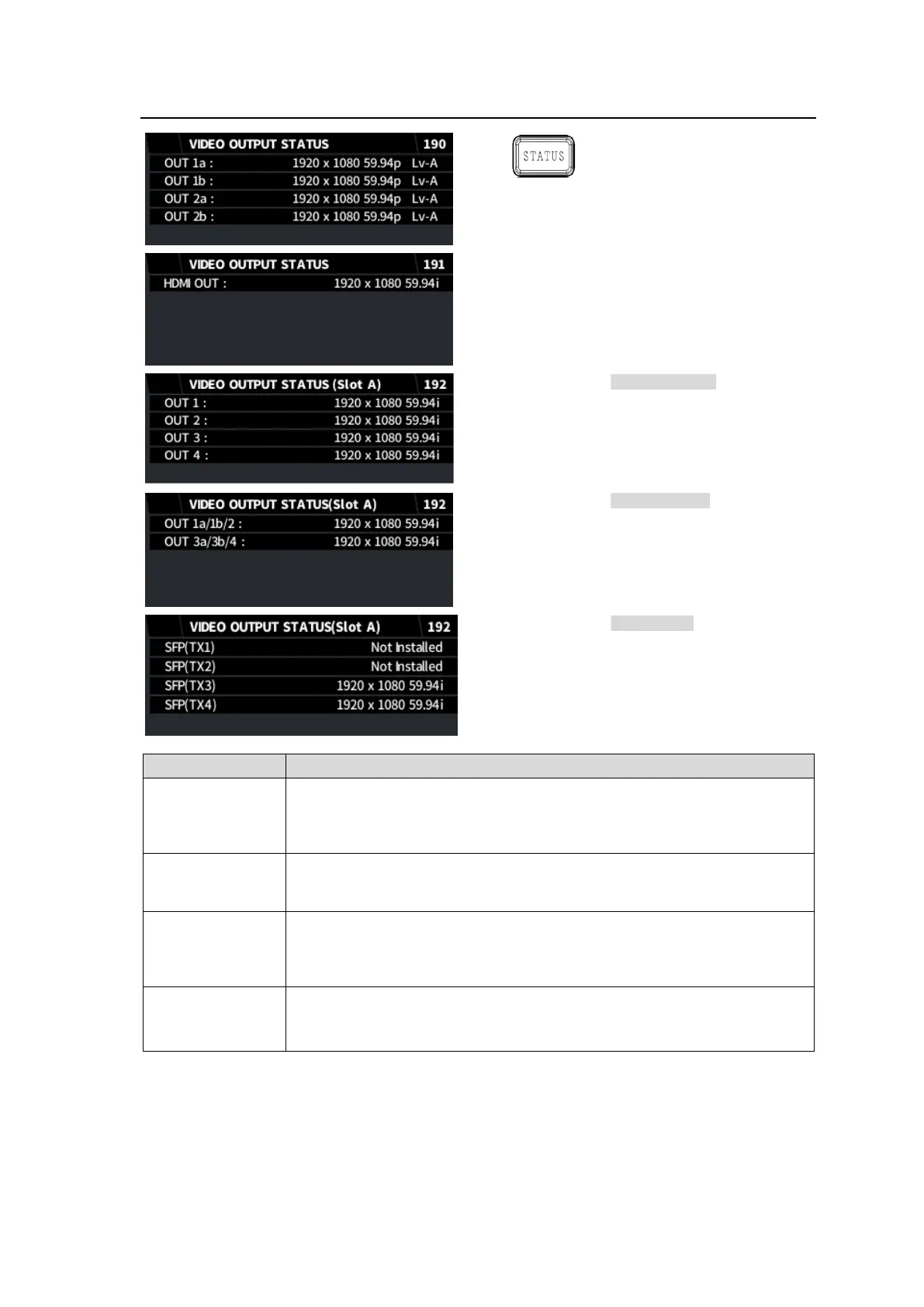

5-48. VIDEO OUTPUT STATUS
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Required
Option
FA-96EX3G44-R
FA-96EX12G06
FA-96SFPC4
Item
Description
OUT 1a
|
OUT 2b
HDMI OUT
Displays the output signal format.
OUT 1
|
OUT 4
Displays the output signal format of the optional card installed on Slot A
(FA-96EX3G44-R or FA-96SFPC4)
OUT 1a/1b
OUT 2
OUT 3a/3b
OUT 4
Displays the output signal format of the optional card installed on Slot A.
(FA-96EX12G06)
SFP(TX1)
|
SFP(TX4)
Displays the output signal format of the optional card installed on Slot A.
(FA-96SFPC4)
If no SFP modules are inserted into cages, ā€œNot Installedā€ is displayed.
