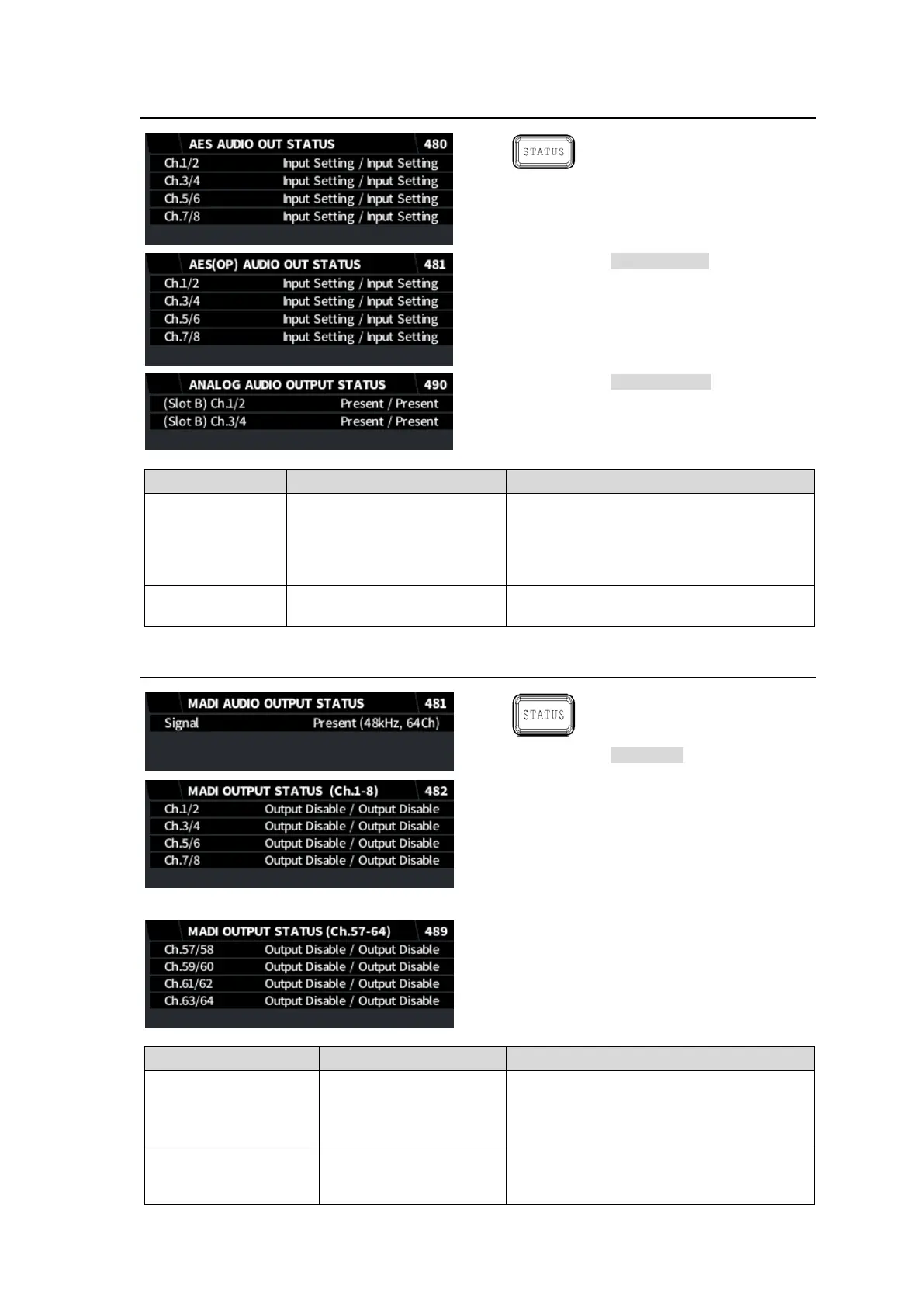

7-16. AES / ANALOG AUDIO OUT STATUS
* If FA-96AES-UBLC is installed,
ā€œ(UBLC)ā€ is displayed in the menu
title, since UBLC has become the
standard output of AES audio.
Option
FA-96AES-UBL
Option
FA-96ANA-AUD
Item
Display
Description
Ch.1/2
Ch.3/4
Ch.5/6
Ch.7/8
PCM, PCM (Async)
Mute, Mute (Async)
Dolby E, Dolby E (Async)
Non-PCM, Non-PCM (Async)
Input Setting
Displays each channel status of AES
outputs.
Input Settings is displayed if AES ports
are set to input.
Ch.1/2
Ch.3/4
Mute
Present
Displays analog audio channel output
status.
7-17. MADI AUDIO OUTPUT STATUS
Option
FA-96MADI
|
Item
Display
Description
Signal
Output Disable
Input Through
Present (48kHz, 56Ch)
Present (48kHz, 64Ch)
Displays the MADI audio output signal
status.
Ch.1/2 to Ch.63/64
Output Disable
PCM
Mute
Displays each audio channel status of
MADI output.
