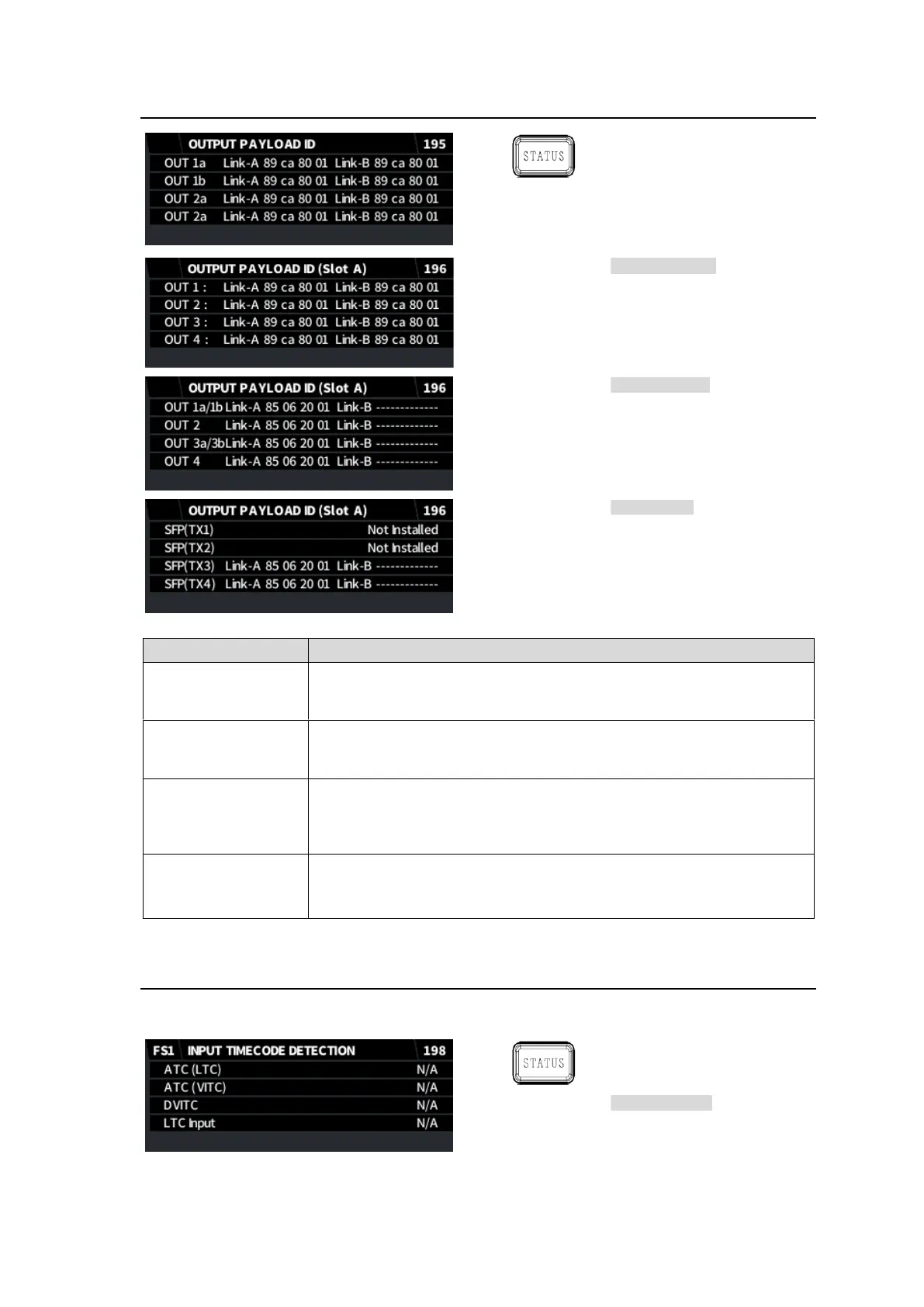

5-50. OUTPUT PAYLOAD ID
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Required
Option
FA-96EX3G44-R
FA-96EX12G06
FA-96SFPC4
Item
Description
OUT 1a
|
OUT 2b
Displays payload ID codes in outputs.
OUT 1
|
OUT 4
Displays payload ID codes in outputs.
(FA-96EX3G44-R, Slot A)
OUT 1a/1b
OUT 2
OUT 3a/3b
OUT 4
Displays payload ID codes in outputs.
(FA-96EX12G06, Slot A)
SFP(TX1)
|
SFP(TX4)
Displays payload ID codes in outputs.
(FA-96SFPC4, Slot A)
If no SFP modules are inserted into cages, “Not Installed” is displayed.
5-51. INPUT TIMECODE DETECTION (FA-96DIN4-CBL)
Displays the timecode status in the SDI input and LTC IN (FA-96DIN4-CBL).
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Required
Option
FA-96DIN4-CBL
