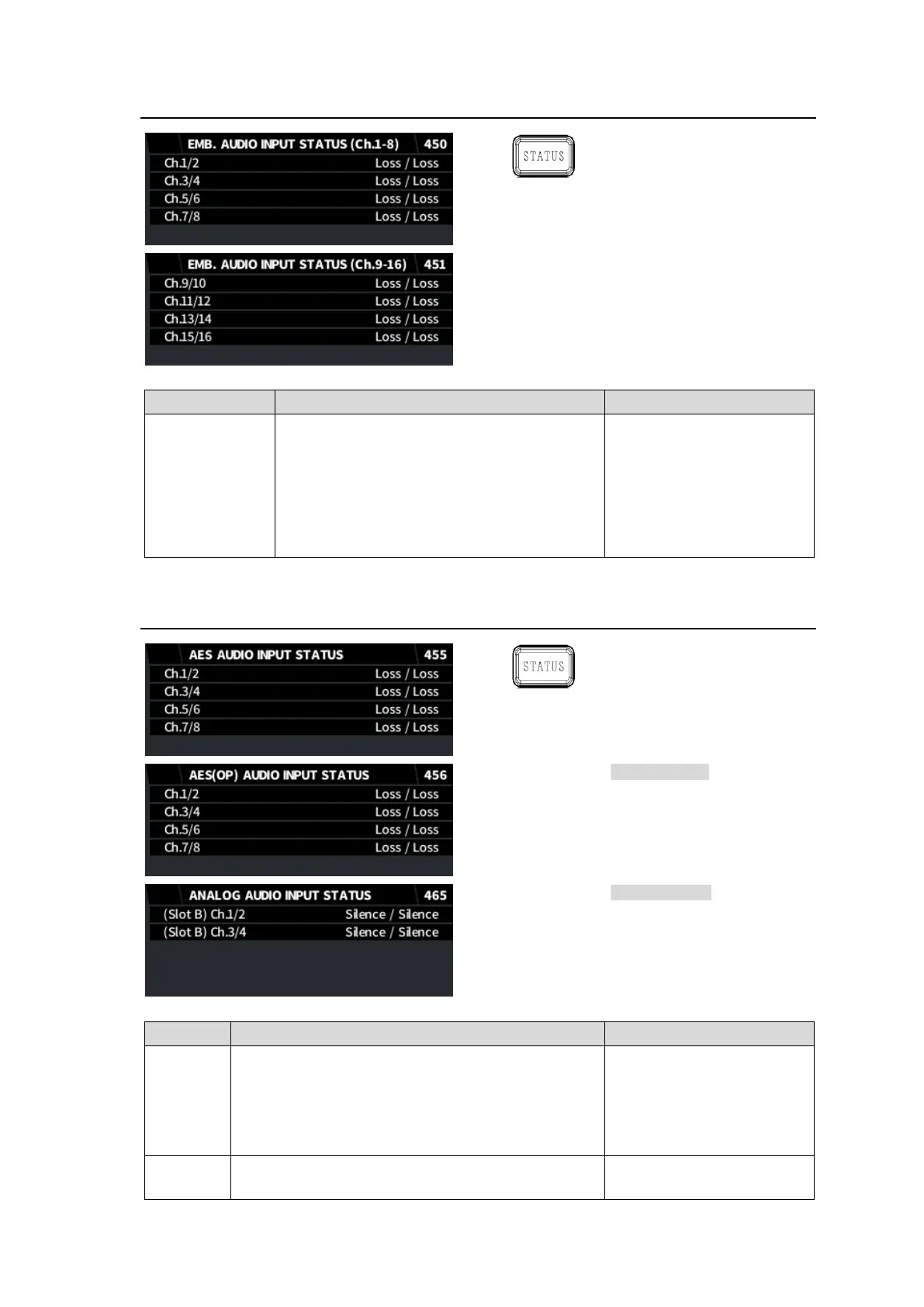

7-9. EMB. AUDIO INPUT STATUS
Item
Display
Description
Ch.1/2
Ch.3/4
Ch.5/6
Ch.7/8
Ch.9/10
Ch.11/12
Ch.13/14
Ch.15/16
Loss
PCM, PCM (Async)
Silence, Silence (Async)
Dolby E, Dolby E (Async)
Non-PCM, Non-PCM (Async)
Bypass
Not Supported (for HDMI audio only)
Displays FS1 and FS2 SDI
embedded audio input
status and HDMI audio input
status.
7-10. AES / ANALOG AUDIO INPUT STATUS
Option
FA-96AES-UBL
Option
FA-96ANA-AUD
Item
Display
Description
Ch.1/2
Ch.3/4
Ch.5/6
Ch.7/8
Loss
PCM (32kHz), PCM (44.1kHz), PCM (48kHz)
Silence (32kHz), Silence (44.1kHz), Silence (48kHz)
Dolby E,
Non-PCM
Output Settings
Displays each channel
status of AES audio inputs.
Output Settings is
displayed if AES ports are
set to output.
Ch.1/2
Ch.3/4
Silence
Present
Displays each channel
status of analog audio input.
