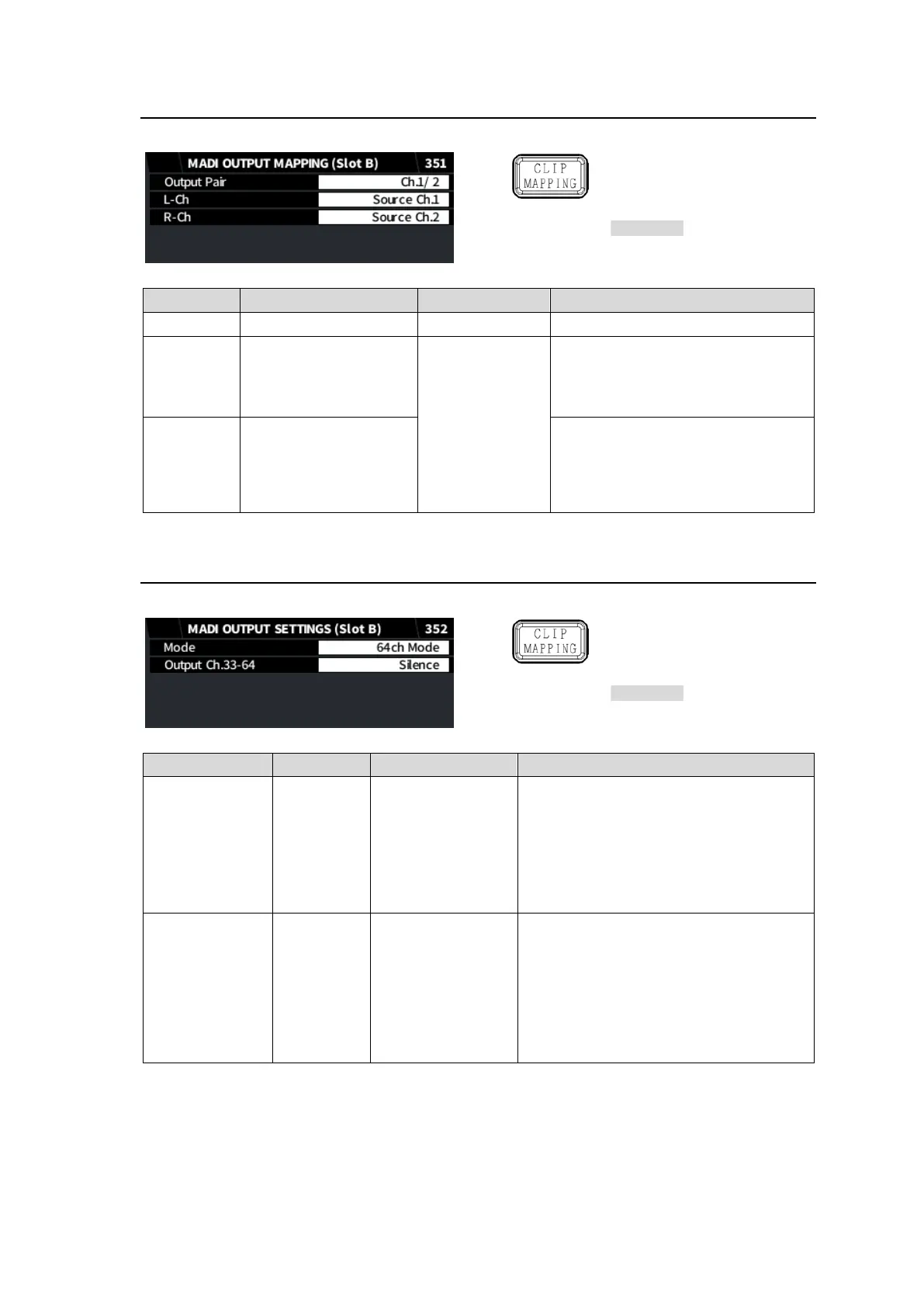

6-14. MADI OUTPUT MAPPING
Allows you to select MADI output signal from the same audio sources as those for SDI output.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Required
option
FA-96MADI
Item
Default
Setting
Description
Output Pair
-
Ch.1/2-31/32
Selects an output channel pair.
L-Ch
Source Ch.1-31
(Odd channel)
Source Ch.1-32
500Hz Tone
1kHz Tone
Silence
Downmix 1_L
Downmix 1_R
Downmix 2_L
Downmix 2_R
Mono Sum 1-16
Selects the L channel source.
R-Ch
Source Ch.2-32
(Even channel)
Selects the R channel source.
6-15. MADI OUTPUT SETTINGS
Allows you to set up MADI signal output.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Required
option
FA-96MADI
Item
Default
Setting
Description
Mode
64ch Mode
56ch Mode
64ch Mode
Input Through
Output Disable
Selects an MADI signal output mode.
56ch Mode: 56-channel mode
64ch Mode: 64-channel moce
Input Through: Outputs MADI input
signal without change.
Output Disable: Outputs no MADI
signal.
Output Ch.33-64
Silence
Silence
MADI In Ch.1-32
MADI In Ch.9-40
MADI In Ch.17-48
MADI In Ch.25-56
MADI In Ch.33-64
Selects audio source for Ch 33-64 in
MADI output signal.
Silence: Silent signal
MADI In Ch.xx-xx: MADI input channel
sources whose sampling rate are to be
converted into 48kHz (for
synchronization with other channels).
Their gain and delay cannot be adjusted.
