150
11-3-5. Output Mapping

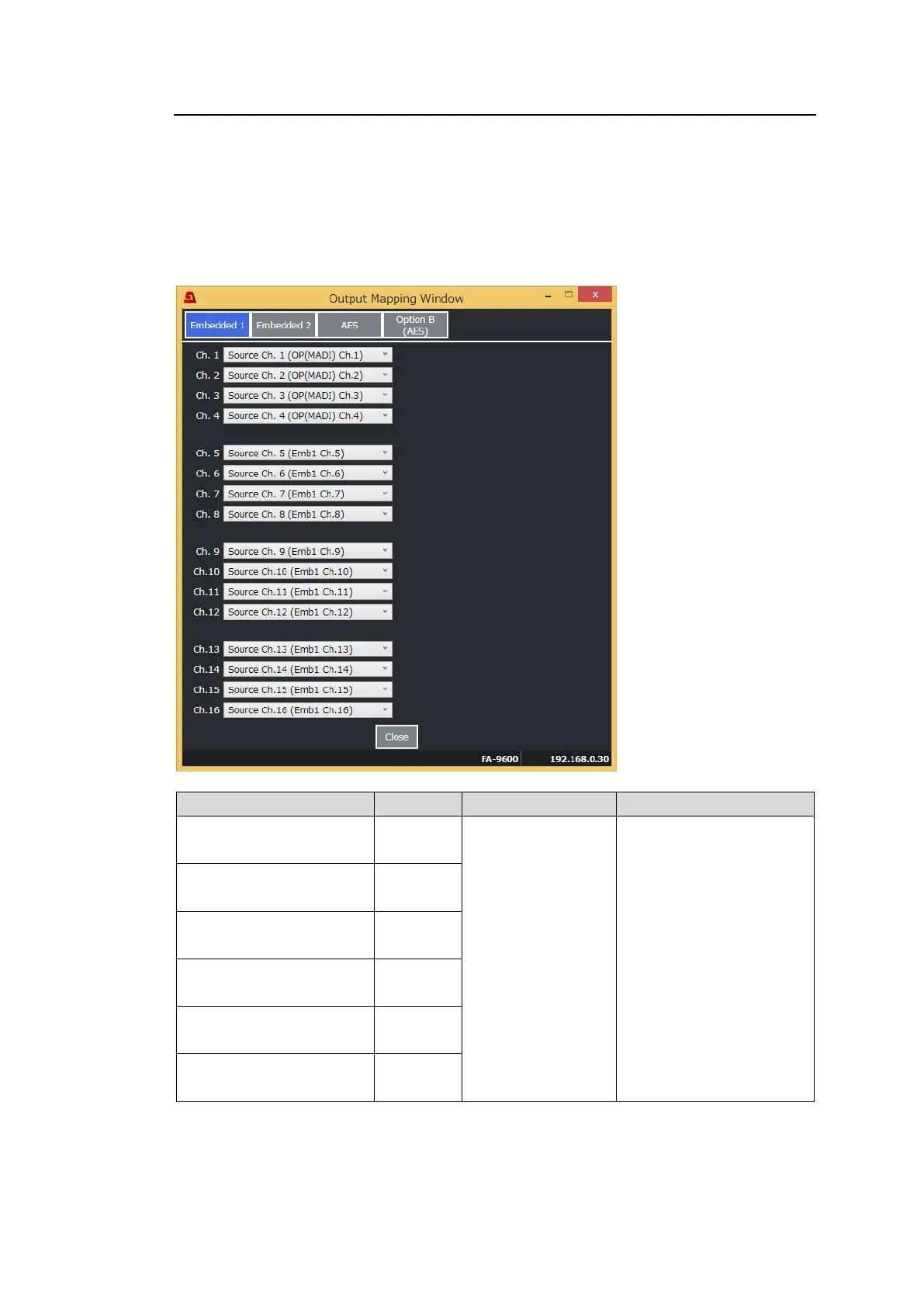

Click Output Mapping in the Audio Block to display the following window.
To set up FS1 SDI embedded audio, click Embedded 1.
To set up FS1 SD2 embedded audio, click Embedded 2.
To set up AES audio of standard and FA-96AES-UBLC option, click AES.
To set up optional audio in Slot B (FA-96AES-UBL, FA-96ANA-AUD or FA-96MADI), click
Option B.
Item
Default
Setting
Description
FS 1 Ch.1- 16
Source
Ch.1-16
Source Ch.1-32
(*1)
500Hz Tone
1kHz Tone
Silence
Down Mix 1_L
Down Mix 1_R
Down Mix 2_L
Down Mix 2_R
Mono Sum 1-16
Selects an audio source
for each channel.
Source Ch.1-32:
32 audio sources
1kHz / 500Hz Tone:
Test signals
Silence: Silent signal
Down Mix 1L/1R, 2L/2R:
2 downmix outputs
Mono Sum 1-16:
16 Mono Sum mix outputs
FS 2 Ch.1- 16
Source
Ch.17-32
AES Ch.1- 8
Source
Ch.1-8
Option B(AES)Ch.1-8
(FA-96AES-UBL)
Source
Ch.1-8
Option B(Analog) Ch.1-4
(FA-96ANA-AUD)
Source
Ch.1-4
Option B(MADI) Ch.1-32
(FA-96MADI)
Source
Ch.1-32
(*1) Channel names shown in parentheses after channel numbers indicate original audio input names.
Sec. 11-3-2. “Source Select.”
