65

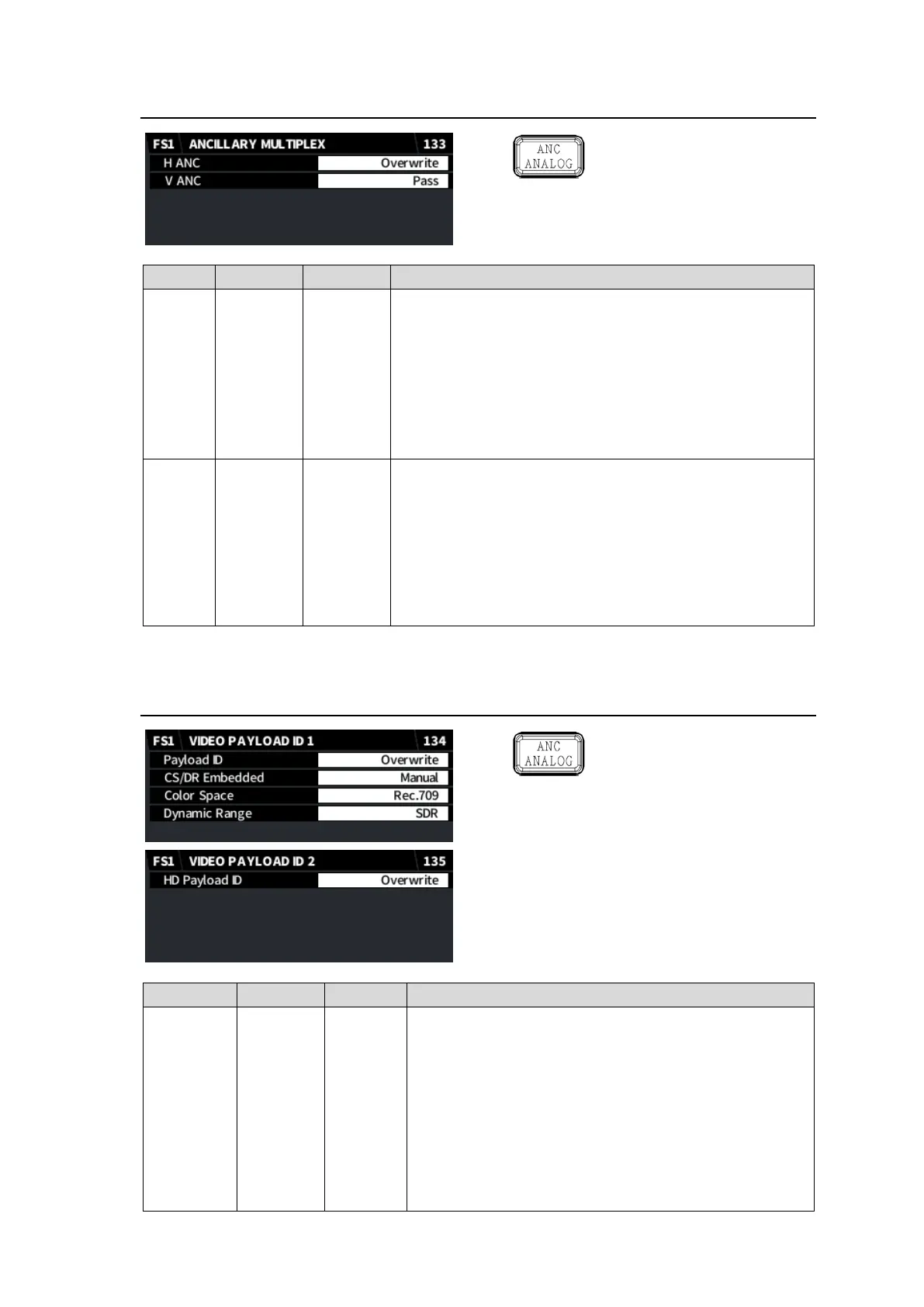

5-29. ANCILLARY MULTIPLEX
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Item
Default
Setting
Description
H ANC
Overwrite
Overwrite
Pass
Blank
Selects the HANC data insertion mode.
Overwrite: Inserts the input HANC data in which audio and
timecode data are rewritten.
Pass: Inserts the input HANC data without processing.
If input and output signal formats are different,Blank
setting is automatically applied.
Blank: Clears HANC space and inserts only the rewritten
input audio and timecode data. See VANC setting (below)
for SD timecode processing.
V ANC
Pass
Pass
Rewrite
Selects the VANC data insertion mode.
Pass: Passes through the input VANC data without
processing. If input and output signal formats are different,
the VANC space becomes blank.
Rewrite: Outputs black in the VANC area. If ARIB STD-B37
STD-B39 and/or User Packet are set to other than Disable
in the ANC DATA INSERTION menu (See Sec. 5-37.) and
corresponding packets are included in the input signal, they
are inserted in the proper space on the output signal.
To insert timecodes to SD output signals, select Rewrite under V ANC.
Whether a timecode is inserted into HD/3G/6G/12G-SDI signal depends on the H ANC setting.
5-30. VIDEO PAYLOAD ID 1, 2
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Item
Default
Setting
Description
Payload ID
Overwrite
Pass
Overwrite
Selects payload identifier insertion mode.
Note that payload identifiers are always inserted if output
video signals are 4K or HD, regardless of HANC and
VANC settings and Payload ID codes in input video.
Pass: Inserts the payload identifiers in the input signal
without change. If the input and output signal formats are
different, another payload ID code is automatically
inserted into the output signal according to the following
parameter settings.
Overwrite: Inserts payload ID codes according to the
following parameter settings.
