71
4
30/29.97/25p
P to I(PsF) conversion
(30 frames or less)
60/59.94/50i (30/29.97/25PsF)
Frame 1
Packet A
Inserts frame packets to Field 1.
Field 1
Packet A
Field 2
(None)
60/59.94/50i
I to P conversion
(30 frames or less)
30/29.97/25p
5
Field 1
Packet A
Inserts Field 1 packets to frames.
Frame 1
Packet A
Field 2
(None)
6
Field 1
Packet A
Packets in Field 2 are not passed
through.
Frame 1
Packet A
Field 2
Packet B
60/59.94/50i
I to P conversion
(more than 30 frames)
60/59.94/50p
7
Field 1
Packet A
Inserts one packet per 2 frames
Frame 1
Packet A
Field 2
(None)
Frame 2
(None)
8
Field 1
Packet A
Inserts field packets to frames.
Frame 1
Packet A
Field 2
Packet B
Frame 2
Packet B

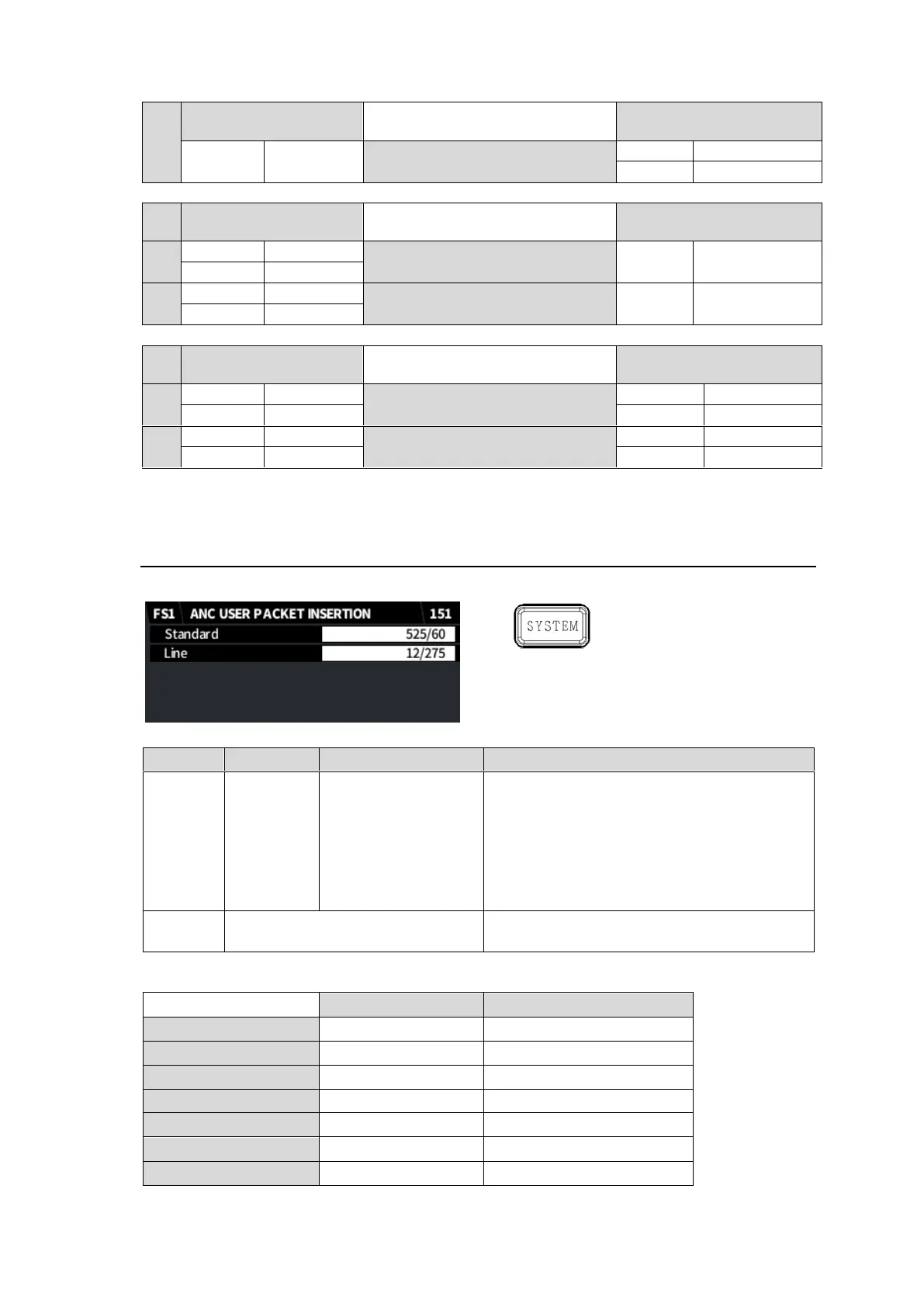

5-38. ANC USER PACKET INSERTION (Planned for future
support)
This menu is planned for future support.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Item
Default
Setting
Description
Standard
-
525/59.94i
625/50i
720p
1080i, PsF/2160PsF
1080p/2160p(1.5G)
1080p/2160p(3G-A)
1080p/2160p(3G-B)
Selects the TV standard of the signal into
which the user packet is inserted.
Line
(See the table below.)
Selects a line number into which the user
packet is inserted.
<Line default value and setting range>
Standard setting
Line default value
Line setting range
525/59.94i
12/275
12/275 - 19/282
625/50i
8/321
8/321 - 22/335
720p
9
9 - 25
1080i, PsF/2160PsF
9/571
9/571 - 20/582
1080p/2160p(1.5G)
9
9 - 41
1080p/2160p(3G-A)
9
9 - 41
1080p/2160p(3G-B)
9/571
9/571 - 20/582
