5-49. Payload ID (FA-96EX3G44-R / FA-96SFPC4)

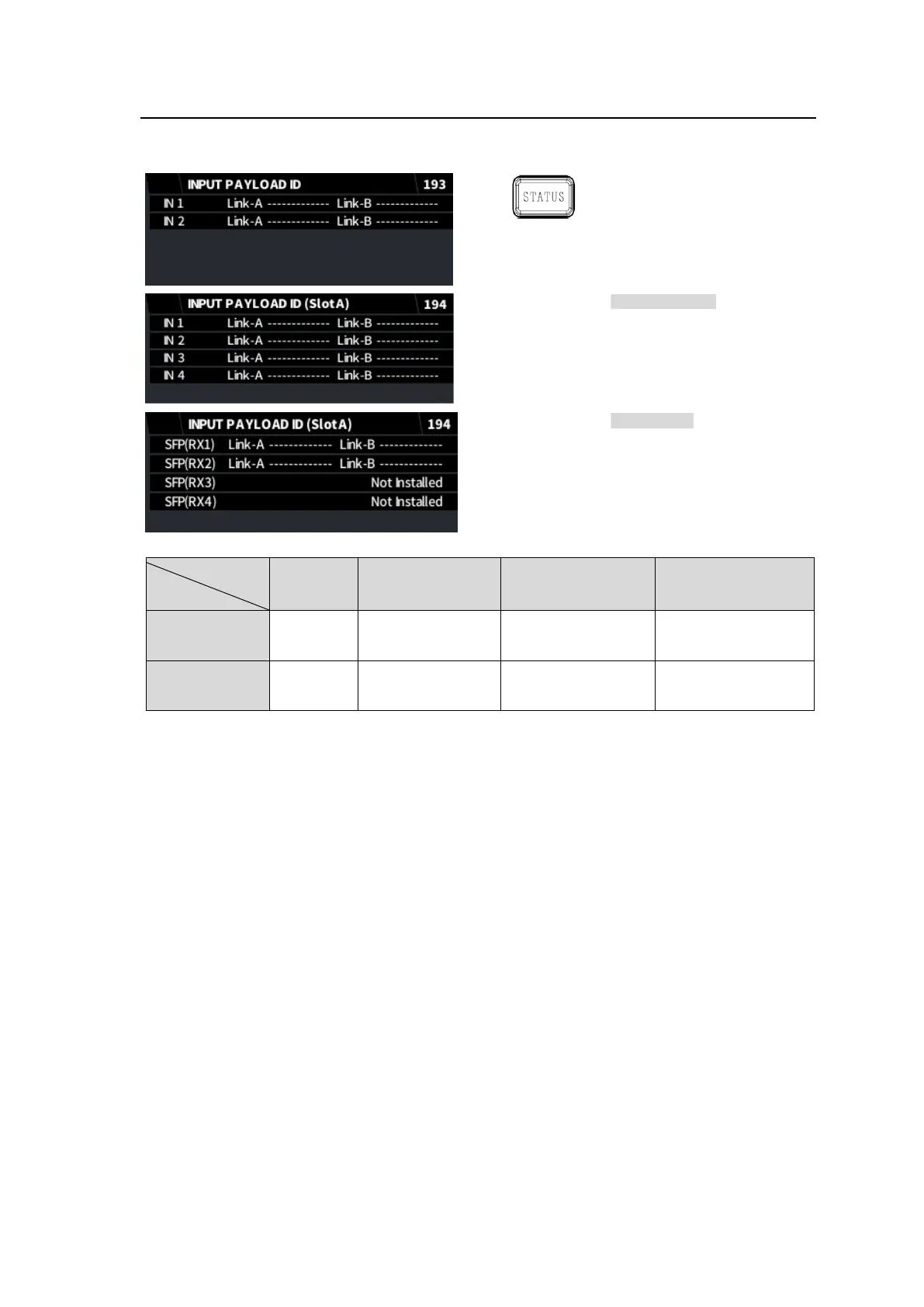

The Payload ID (Slot A) page is displayed when FA-96EX3G44-R or FA-96SFPC4 is installed.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Required
Option
FA-96EX3G44-R
FA-96SFPC4
SDI signal
Display
SD
HD
3G Level A
3G Level B
Link A data
No display
Payload ID
in Y signal
Payload ID
in Y signal
Payload ID
in Link A
Link B data
No display
No display
Payload ID
in C signal
Payload ID
in Link B
If no SFP modules are inserted into FA-96SFPC4 cages, ā€œNot Installedā€ is displayed.
