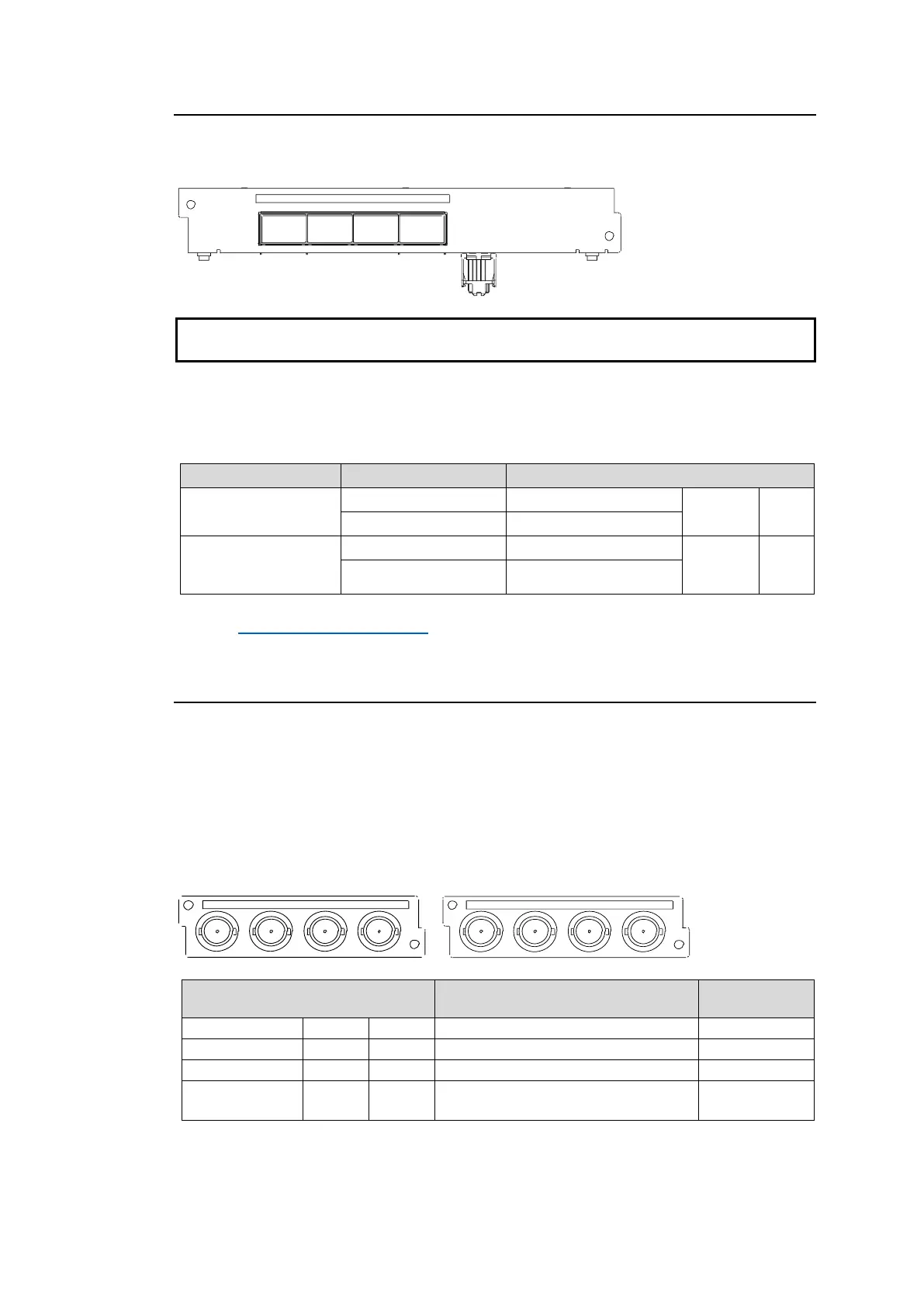

2-3-3. FA-96SFPC4 (4-Cage Card for SFP Modules)
Cage (connector ) card that can install up to 4 SFP or SFP+ (Small Form Factor Pluggable)
modules. Install the card to Slot A.
SFP
Tx3/4Tx1/2Rx4/3Rx2/1
NOTE
SFP/SFP+ modules are not supplied. Please prepare modules for yourself and consult your
FOR-A supplier for more details.
The installed module information is displayed on the Status tab page in the Windows GUI.
(See Sec. 11-7. “Status Tab Display.”)
The following Embrionix SFP modules have been tested and approved and are ready for use.
I/O
SFP module
Module type
Rx (IN1-2/IN3-4)
EB12LC2R-MN-P-PA
12G/6G/3G/HD/SD-SDI
Dual
receiver
SFP
optical
EB60LC2R-MN2-P
3G/HD/SD-SDI
Tx (OUT1-2/OUT3-4)
EB12LC2T-SN-13D
12G/6G/3G/HD/SD-SDI
Dual
trans-
mitter
SFP
optical
EB60LC2T-MN2-13F
3G/HD/SD-SDI
Use Singlemode fiber optic cables with LC connectors. For more details, visit Embrionix
website (https://www.embrionix.com/)
2-3-4. FA-96AES-UBL and 96AES-UBLC (Audio Expansion)
AES/EBU (digital) audio expansion card and cable that can add 4 ports respectively. Install a
card into Slot B and a cable into Slot B or C.
Installing an FA-96AES-UBL card adds 4 ports (8 channels) for input or output. Input or
output can be selected per 2 ports (4 channels) in the AES TERMINAL IN/OUT SET menu
(see Sec. 6-17) in the same manner as standard AES ports.
Installing an FA-96AES-UBLC cable adds 4 ports (8 channels) for output and sets all
standard AES ports to input.
FA-96AES-UBL (Expansion card) FA-96AES-UBLC (Expansion cable)
1/2 3/4 5/6 7/8
DIGITAL AUDIO IN/OUT
3/4 5/6 7/81/2
DIGITAL AUDIO OUT
Installed AES card/cable
Input / Output
Total number of
channels
Standard AES
-
-
I/O selectable per 4 channels
8
Standard AES
UBL
-
I/O selectable per 4 channels
16
Standard AES
-
UBLC
Std AES: 8-ch input, UBLC: 8-ch output
16
Standard AES
UBL
UBLC
Std AES: 8-ch input, UBLC: 8-ch output
UBL: I/O selectable per 4 channels
24
