179
14-3. Event Data Editing Example (Event Name Change)
Let's change Event Number 1 to "Studio_A 4K>HD" as shown below.
If using a new file:
(1) Create a csv file using a text editor.
(2) Type the text as shown below in the csv file.
Event,COM,EventName,Studio_A 4K>HD(newline character)
* Do NOT enter any trailing or leading spaces on commas or "CRLF."
* Max 15 characters for names (Front panel menu can show up to 10 characters.)
* Only alphanumeric characters and symbols (7-bit ASCII characters) are available.
* Strings are case sensitive.
(3) Save the csv file as 7-bit ASCII. If using the Windows Notepad, select ANSI for the
Encoding menu to save the file.
(4) Import the csv file to FA-9600 using the Web GUI to apply the change.
See Sec. 13-3-2. "Event Data" for how to import events to the FA-9600.
If using an existing event file:
(1) Export an event file from the FA-9600 to the Web GUI. Open the file using a text editor.
(See Sec. 13-3-2. "Event Data" for how to export events to the Web GUI.)
(2) Type the text above anywhere in the csv file.
(3)(4) (Same as above)

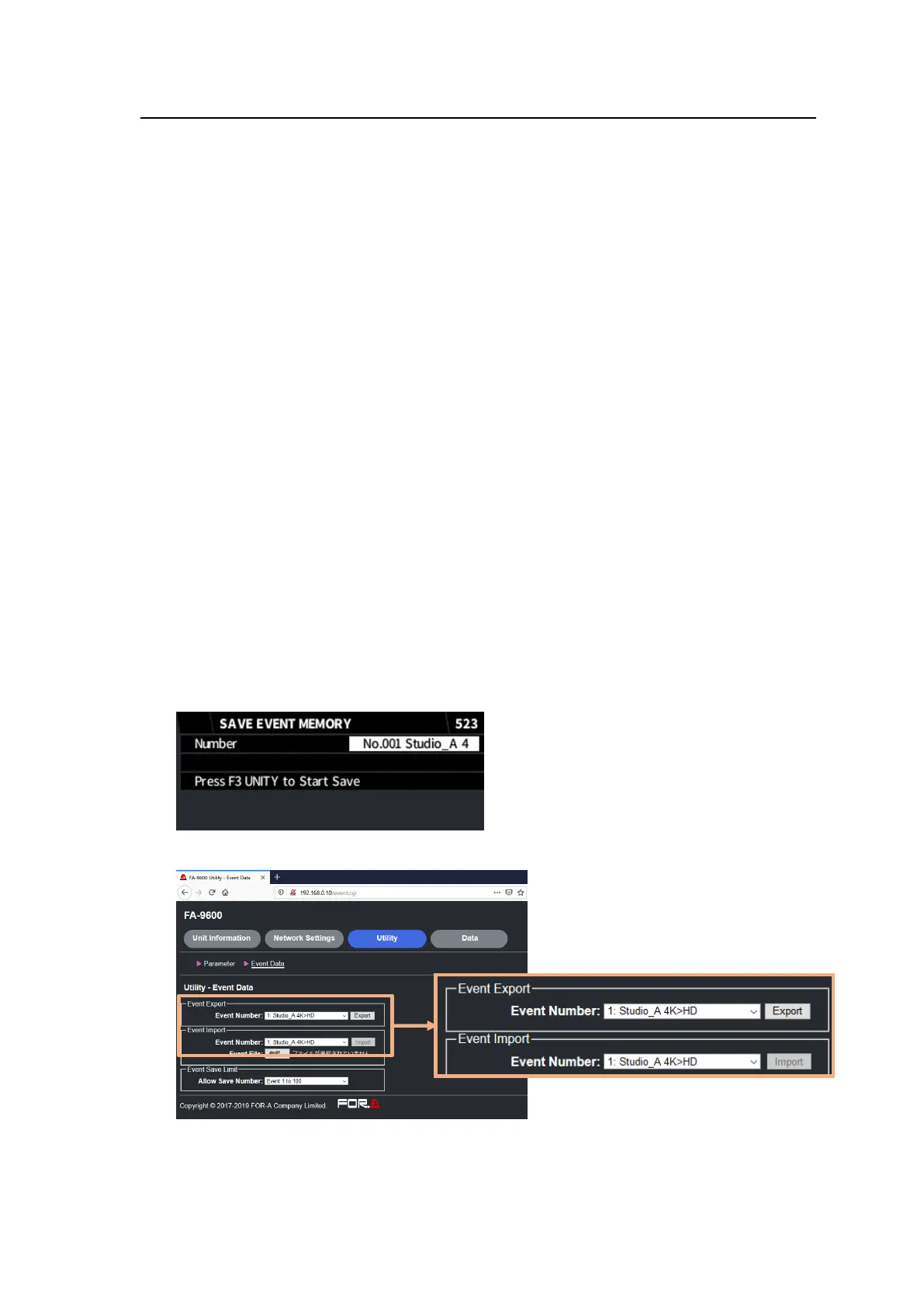

The event name will be displayed as shown below when it is successfully applied:
Front panel EVENT menu
[Utility > Event Data] menu in the Web GUI
