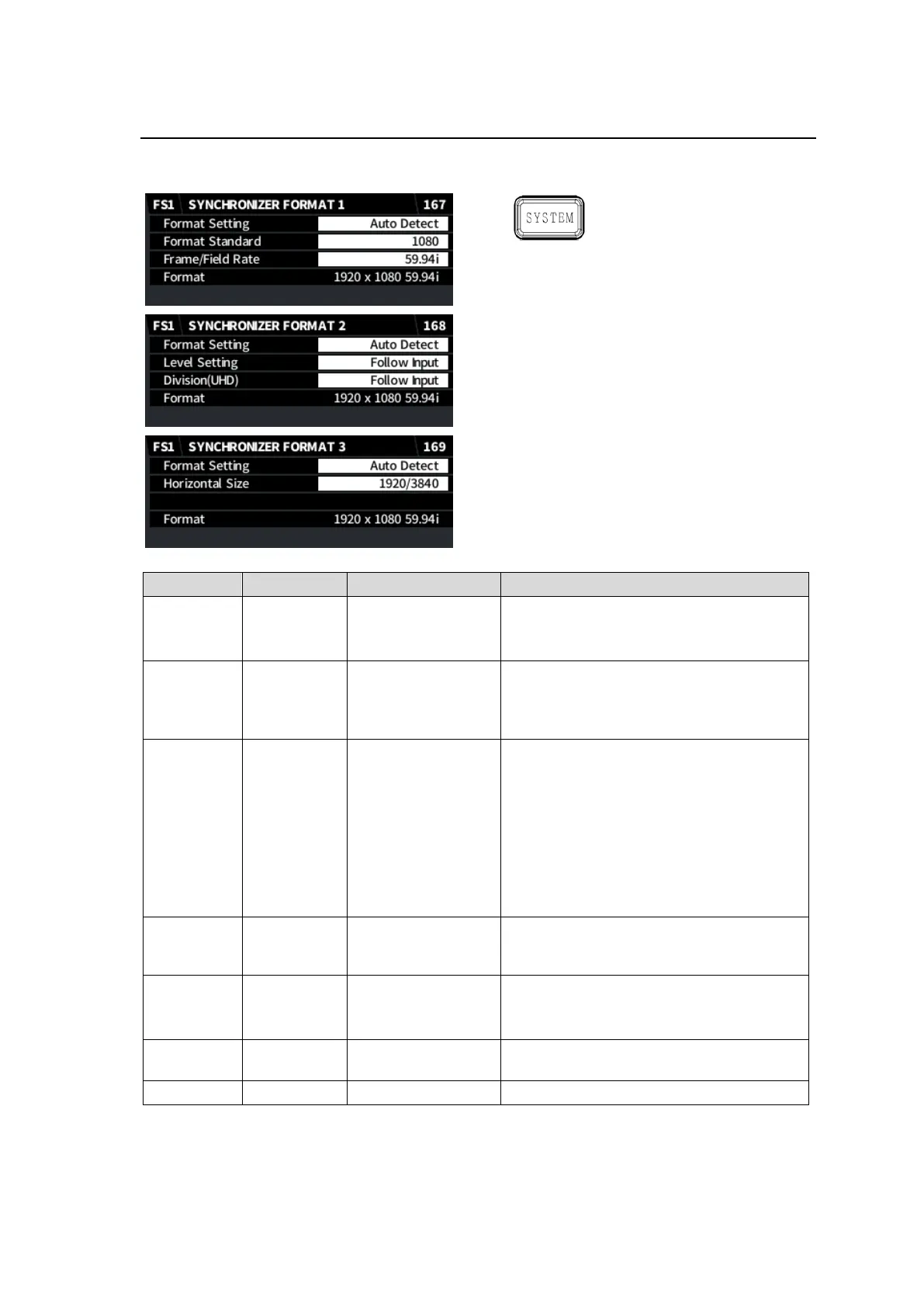

5-39. SYNCHRONIZER FORMAT
See Sec. “16-1. “Specifications” for the supported signal formats.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Item
Default
Setting
Description
Format
Setting
Auto Detect
Auto Detect
Manual
Selects the FS output format.
Auto Detect: FS input signal format.
Manual: Signal format specified below
Format
Standard
1080
SD
720
1080
2160
Specifies the vertical image resolution.
2160 available with FA-964K in
Simultaneous 4K/HD or 3D-LUT mode
(FS1 only)
Frame/Field
Rate
59.94i
60p, 59.94p, 50p
48p, 47.95p
30p, 29.97p
25p, 24p, 23.98p
60i, 59.94i, 50i
24PsF
23.98PsF
30PsF
29.97PsF
25PsF
Specifies the frame / field rate.
Level
Setting
Follow Input
Follow Input
Level A
Level B (Dual Link)
Specifies the SDI mapping level.
Division
(FA-964K)
Follow Input
Follow Input
SQD
2SI
Specifies the SDI image division method.
Available in Simultaneous 4K/HD or
3D-LUT mode (FS1 only)
Horizontal
Size
1920/3840
1920/3840
Displays the horizontal image resolution
(Display only)
Format
-
-
Displays the FS output format.
