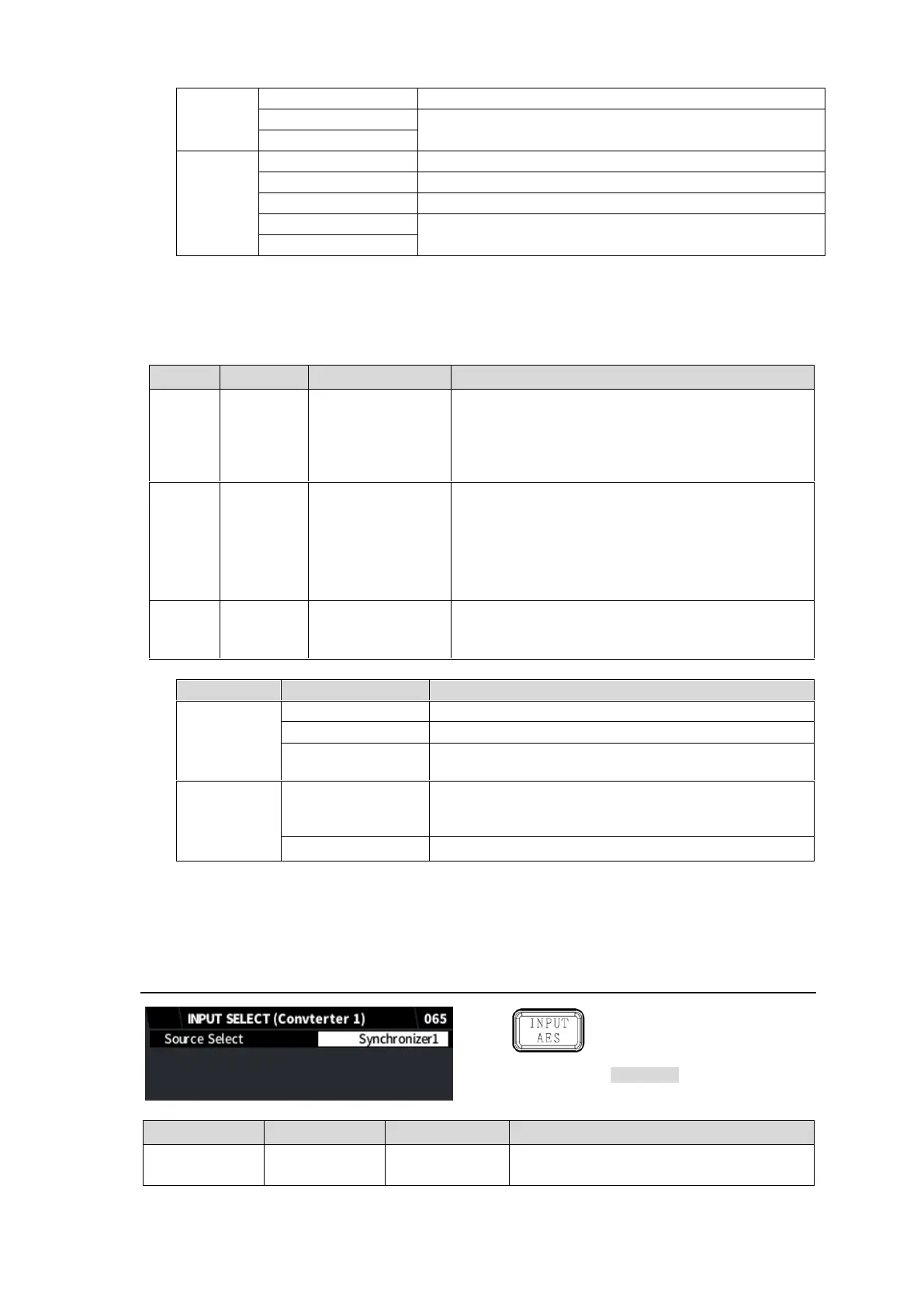

47
Auto Freeze
Freezes the last normal image displayed on the screen.
(*1)
SDI Output Mute(Link)
Freezes the last normal image displayed on the screen until the
video output is stopped.
(*1)
SDI Output Mute (Sep)
Square
Back Color (Link)
Outputs a monochrome video.
Back Color (Sep)
Outputs the input video displaying monochrome for the lost part.
Auto Freeze
Freezes the last normal image displayed on the screen.
SDI Output Mute (Link)
Freezes the last normal image displayed on the screen until the
video output is stopped.
(*1)
SDI Output Mute (Sep)
If a converter is used, both Back Color (Sep) and Back Color (Link) displays a monochrome video and
SDI Output Mute(Link) is automatically set if SDI Output Mute(Sep) is selected.
(*1)
Applied when Synchronizer Mode is set to Frame/AVDL. In other cases, it works in the same way
as Back Color (Link).
<Dual HD mode>
Item
Default
Setting
Description
Source
Select
IN1 (FS1)
IN2 (FS2)
IN1
IN2
HDMI IN
EX3G IN1 to IN4
SFP RX1 to RX4
Selects a video signal input to FS1 or FS2.
EX3G IN1 to EX3G IN4: Requires
FA-96EX3G44-R.
SFP RX1 to SFP RX4: Requires FA-96SFPC4.
Loss
Mode
Back
Color
Back Color
Auto Freeze
SDI Output Mute
Selects the output mode for input signal loss.
Back Color: Outputs a monochrome (set under
Back Color below) video.
Auto Freeze: Freezes the last normal output video.
SDI Output Mute: Outputs no signal so that the
FA-9600 downstream device can detect video loss.
Back
Color
Black
Black, Blue, Red,
Magenta, Green,
Cyan, Yellow
Selects a monochrome used for Loss Mode
settings.
HDMI Input / Output
HDMI In/Out
Loss Mode
Description
HDMI In
Back Color
Outputs monochrome (color set under Back Color) video.
Auto Freeze
Outputs monochrome (color set under Back Color) video.
SDI Output Mute
Outputs no video signals so that downstream devices can
detect signal loss.
HDMI Out
Back Color (Link)
Back Color (Sep)
Auto Freeze
Outputs the same video signals as those for SDI output.
SDI Output Mute
Outputs monochrome (color set under Back Color) video.
SFP Input / Output
Selecting SDI Output Mute for Loss Mode freezes video same as Auto Freeze setting.
5-14. INPUT SELECT (Converter 1)
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Required
option
FA-96UDC
Item
Default
Setting
Description
Source Select
Synchronizer1
Synchronizer1
Synchronizer2
Selects the Converter1 source signal.
