76

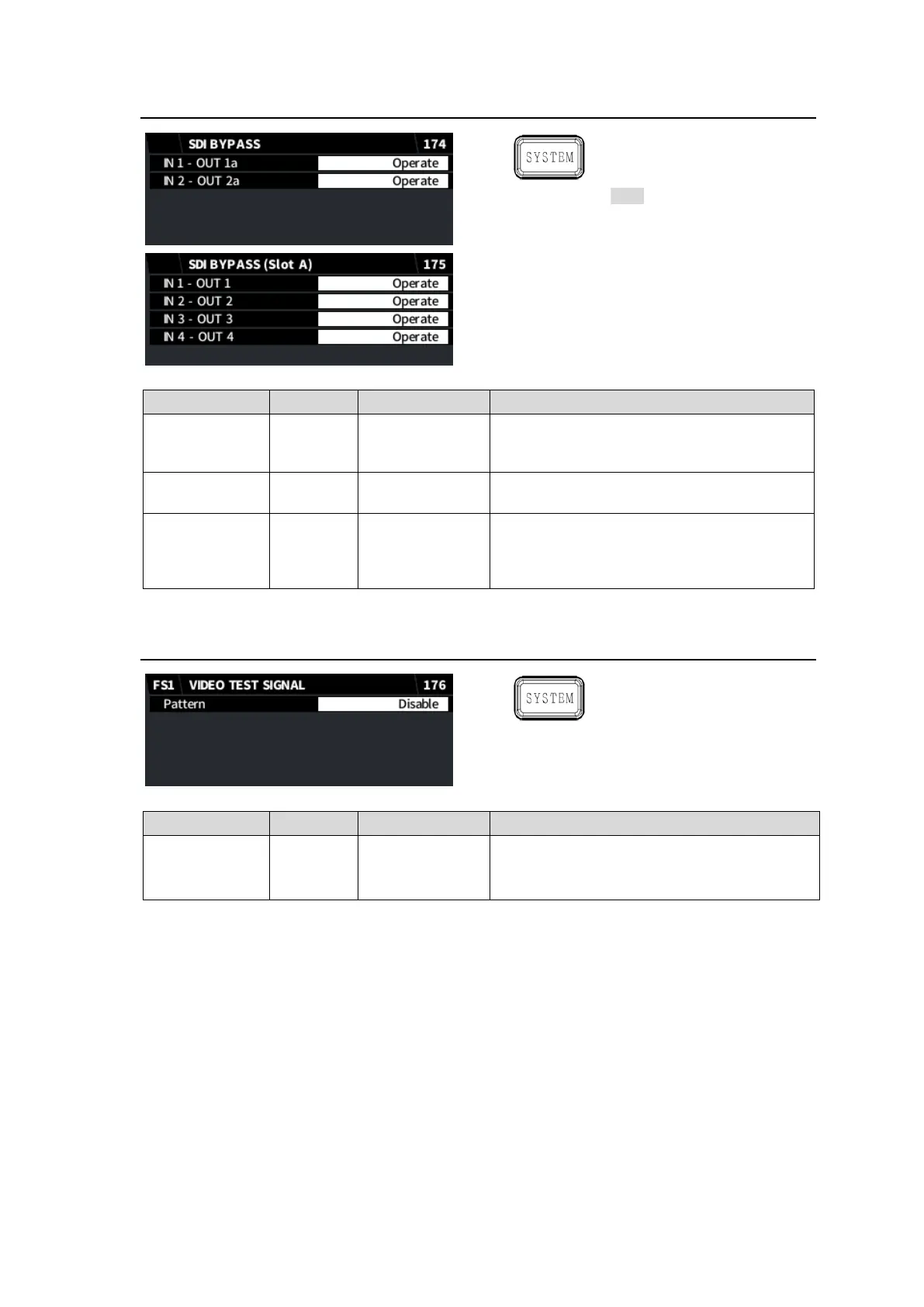

5-43. SDI BYPASS
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Required
Option
None
Item
Default
Setting
Description
IN 1 – OUT 1a
Operate
Operate
Active Through
Enables/disables SDI 1 active bypass
routing. Note that active bypass is ineffective
when unit power is off.
IN 2 – OUT 2a
Operate
Operate
Relay Bypass
Enables/disables SDI 2 relay bypass routing.
IN 1 – OUT 1
IN 2 – OUT 2
IN 3 – OUT 3
IN 4 – OUT 4
Operate
Operate
Relay Bypass
Enables/disables bypass routing for SDI 1-4
on FA-96EX3G44-R cards installed into Slot
A.
5-44. VIDEO TEST SIGNAL
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Item
Default
Setting
Description
Pattern
Disable
Disable
100% Color Bar
75% Color Bar
Outputs the selected test signal.
