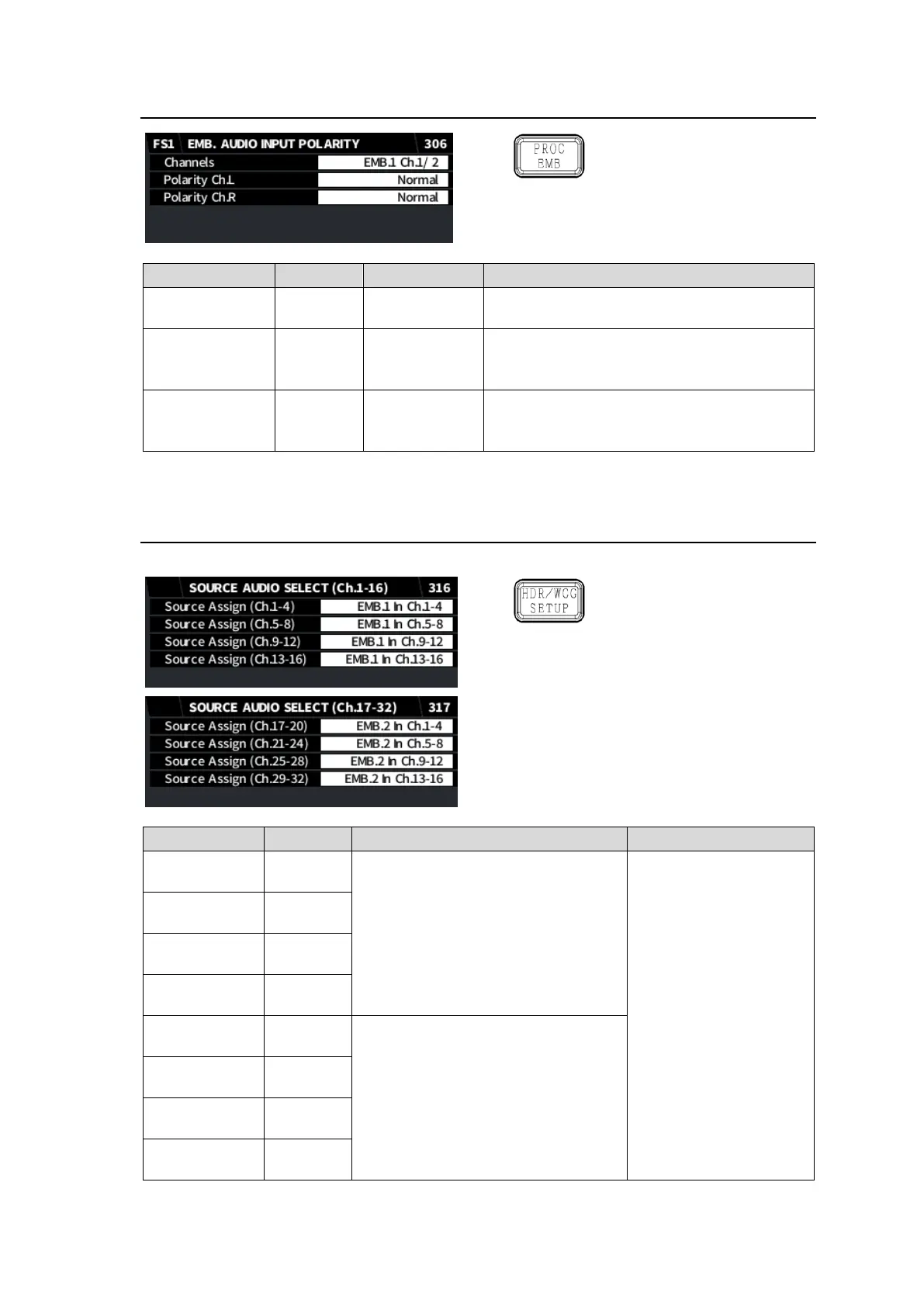

6-5. EMD. AUDIO INPUT POLARITY
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Item
Default
Setting
Description
Channels
-
Input Ch.1/2 to
Input Ch.15/16
Selects a channel pair from embedded audio
input.
Polarity Ch.L
Normal
Normal
Invert
Selects the L (odd number) channel polarity
for the selected channel pair.
Setting to Invert inverts the audio polarity.
Polarity Ch.R
Normal
Normal
Invert
Selects the R (even number) channel polarity
for the selected channel pair.
Setting to Invert inverts the audio polarity.
HDMI embedded audio channels always have normal polarity.
6-6. SOURCE AUDIO SELECT
This menu allows you to select 32 audio source channels processed on the FA-9600.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Item
Default
Setting
Description
Source Assign
(Ch.1-4)
EMB.1 In
Ch.1-4
EMB1 In Ch.1-4 to Ch.13-16
EMB2 In Ch.1-4 to Ch.13-16
AES In Ch.1-4 to Ch.5-8
OP(AES) In Ch.1-4 to Ch.5-8*
OP(ANA:B) In Ch.1-4**
OP(MADI) In Ch.1-4 to Ch.61-64***
Selects audio source
channels per 4 channels.
* OP(AES) In Ch.1-8
require FA-96AES-UBL.
If AES channels are set
to output, an apostrophe
(*) is displayed in front of
AES and cannot be
used.
** OP(ANA:B) In Ch.1-4
require FA-96ANA-AUD.
*** OP(MADI) In Ch.X-X
require FA-96MADI.
Source Assign
(Ch.5-8)
EMB.1 In
Ch.5-8
Source Assign
(Ch.9-12)
EMB.1 In
Ch.9-12
Source Assign
(Ch.13-16)
EMB.1 In
Ch.13-16
Source Assign
(Ch.17-20)
EMB.2 In
Ch.1-4
EMB1 In Ch.1-4 to Ch.13-16
EMB2 In Ch.1-4 to Ch.13-16
OP(ANA:B) In Ch.1-4**
OP(MADI) In Ch.1-4 to Ch.61-64***
Source Assign
(Ch.21-24)
EMB.2 In
Ch.5-8
Source Assign
(Ch.25-28)
EMB.2 In
Ch.9-12
Source Assign
(Ch.29-32)
EMB.2 In
Ch.13-16
