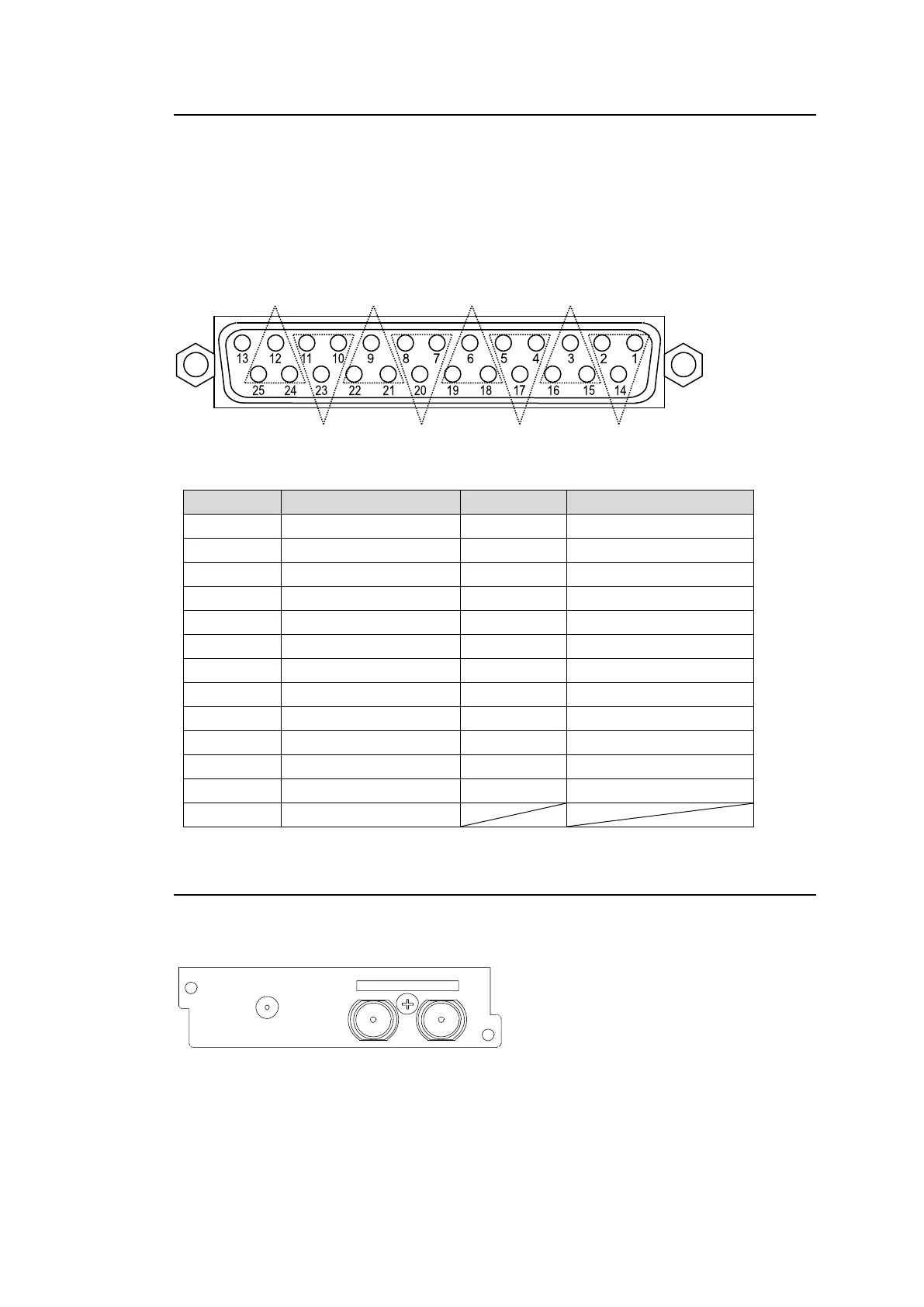

2-3-5. FA-96ANA-AUD (Balanced Analog Audio 4-In 4-Out Card)
Analog audio expansion card that can add 4 balanced inputs and outputs for each.
Respectively connect hot and cold lines to pins with plus (+) and minus (-) symbols. (See the
table below.)
Install a card into Slot B.
â—† FA-96ANA-AUD Connector (25-pin D-sub, female, with inch screws)
Connector Pin Assignments (Standard TASCAM)
Pin No.
Signal
Pin No.
Signal
1
CH4 OUT+
14
CH4 OUT-
2
CH4 OUT COM
15
CH3 OUT+
3
CH3 OUT-
16
CH3 OUT COM
4
CH2 OUT+
17
CH2 OUT-
5
CH2 OUT COM
18
CH1 OUT+
6
CH1 OUT-
19
CH1 OUT COM
7
CH4 IN+
20
CH4 IN-
8
CH4 IN COM
21
CH3 IN+
9
CH3 IN-
22
CH3 IN COM
10
CH2 IN+
23
CH2 IN-
11
CH2 IN COM
24
CH1 IN+
12
CH1 IN-
25
CH1 IN COM
13
NC
2-3-6. FA-96MADI (MADI Audio Card)
Audio expansion card that supports MADI (Multichannel Audio Digital Interface) audio using
75-ohm coaxial cable. Install a card into Slot B.
MADI
IN OUT
CH1 IN
CH3 IN
CH1 OUT
CH3 OUT
CH2 IN
CH4 IN
CH2 OUT
CH4 OUT
