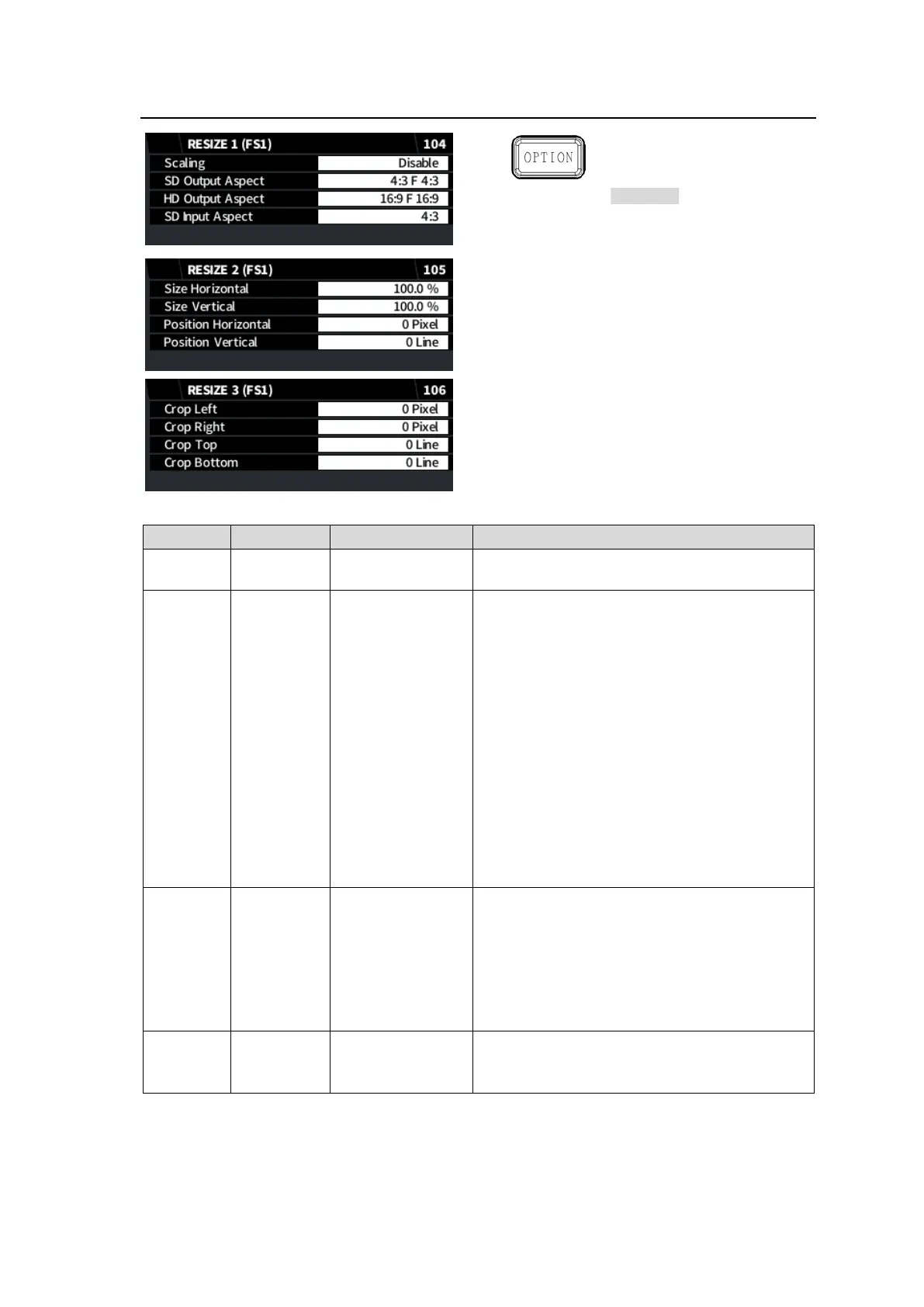

5-22. RESIZE 1, 2, 3 (FA-96UDC)
Simultaneous 4K/HD (FS1)
Dual HD
3D-LUT (FS1)
Required
Option
FA-96UDC
RESIZE 1
Item
Default
Setting
Description
Scaling
Disable
Disable
Enable
Enables/disables scaling or positioning up to 2K
size for Size, Position and Crop settings.
SD Output
Aspect
4:3 F 4:3
4:3 L 16:9 T
4:3 L 14:9 T
4:3 L>16:9
4:3 F 4:3
4:3 L 16:9 PRTD
4:3 L 14:9
4:3 F ALT 14:9
4:3 L ALT 14:9
4:3 L ALT 4:3
16:9 L>16:9
16:9 F 16:9
16:9 P 4:3
16:9 F PRTD
16:9 P 14:9
16:9 P ALT 14:9
16:9 F ALT 14:9
16:9 F ALT 4:3
Specifies the aspect ratio when converting
HD-SDI to SD-SDI signals.
HD Output
Aspect
16:9 F 16:9
16:9 L>16:9
16:9 F 16:9
16:9 P 4:3
16:9 F PRTD
16:9 P 14:9
16:9 P ALT 14:9
16:9 F ALT 14:9
16:9 F ALT 4:3
Specifies the aspect ratio when converting
SD-SDI to HD-SDI signals.
SD Input
Aspect
4:3
4:3
16:9
Selects the SD input aspect ratio.
If the input image is horizontally squeezed, set
to 16:9.
