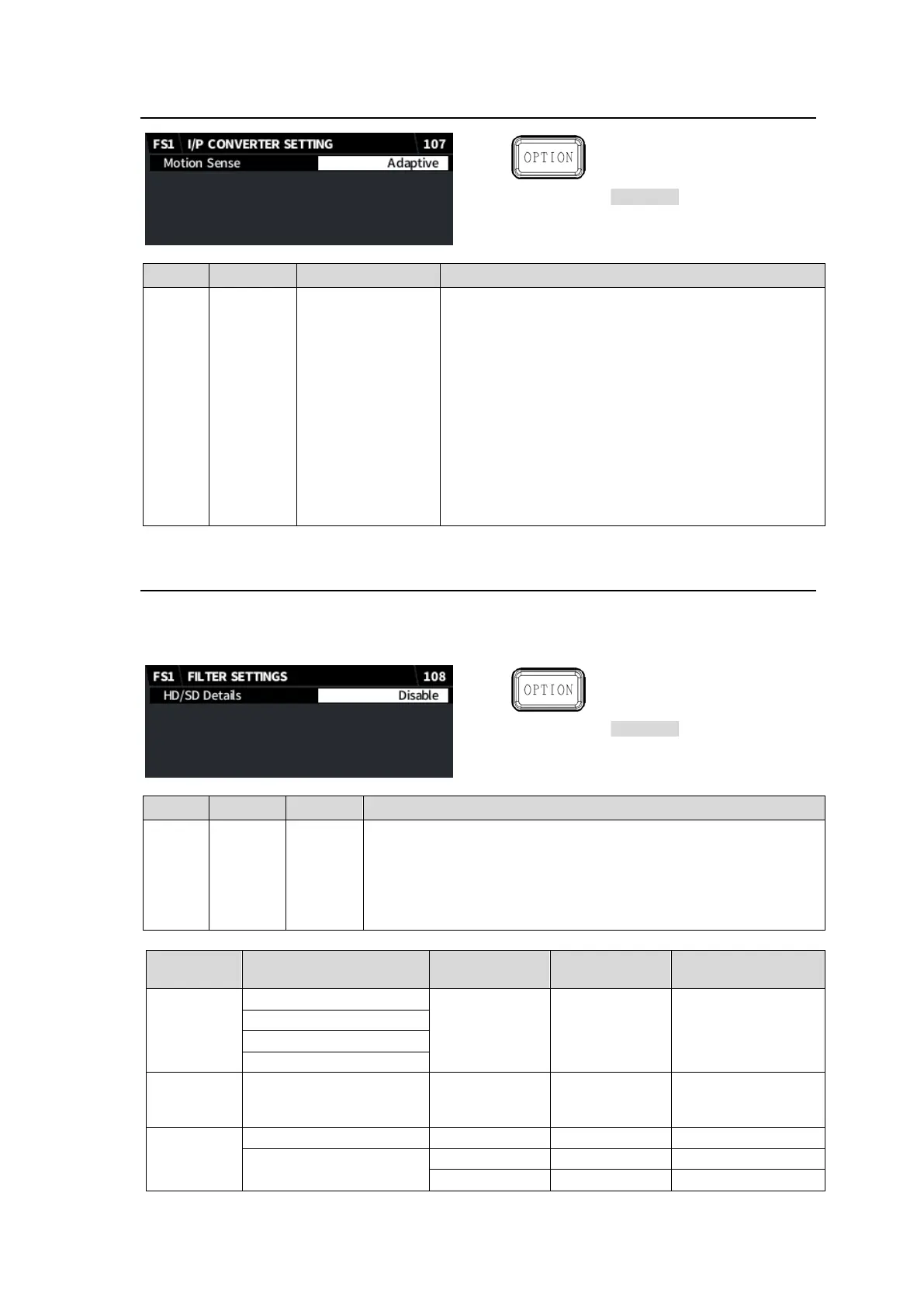

62
5-23. I/P CONVERTER SETTING (FA-96UDC)
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Required
Option
FA-96UDC
Item
Default
Setting
Description
Motion
Sense
Adaptive
Adaptive
Field
Frame(Odd 1st)
Frame(Even 1st)
Adaptive: Detects whether there is motion or no
motion in the scene, and generates an optimal
progressive image.
Field: Generates a progressive image from one field
of an interlaced image. The created image has no
motion artifacts, but vertical resolution will be reduced.
Frame(Odd 1st): Generates a progressive image
from two fields (odd and even) of an interlaced image.
Suitable for progressive segmented frame input shot
in progressive format.
Frame(Even 1st): Generates a progressive image
from two fields (even and odd) of and interlaced
image.
5-24. FILTER SETTINGS (FA-96UDC)
The menu requires FA-96UDC option and can enable/disable the following three filters: ANTI
ALIAS H/V (see Sec. 5-25), ENHANCE H/V (see Sec. 5-26) and NOISE REDUCER (see Sec.
5-27).
Simultaneous 4K/HD (FS1)
Dual HD
3D-LUT (FS1)
Required
Option
FA-96UDC
Item
Default
Setting
Description
HD/SD
Details
Disable
Disable
Enable
If using 2K signals (converting 2K to 2K), this parameter can
enable / disable Anti Alias, Enhance and Noise Reduce
together. However, all these functions are automatically enabled if
aspect conversion or scaling is enabled (see Sec. 5-22), and they
are automatically disabled if using 4K input and output, regardless
of this setting.
Filters’ process delay and when filters are enabled / disabled
Signal
Conversion
HD/SD Details
setting
3 Filters
Filters’ Process Delay
2160p/PsF
Level-A / B conversion
(Ignored)
Always disabled
None
P / PsF conversion
2SI / SQD conversion
Simple rate conversion
2160p/PsF
1080i/p/PsF
720p, SD
Format conversion
(w/ aspect ratio conversion)
(Ignored)
Always enabled
About a dozen lines
1080i/p/PsF
720p
SD
Scaling (See Sec. 5-22.)
(Ignored)
Always enabled
About a dozen lines
Format conversion
(w/o aspect ratio conversion)
Enabled
Enabled
About a dozen lines
Disabled
Disabled
None
