20

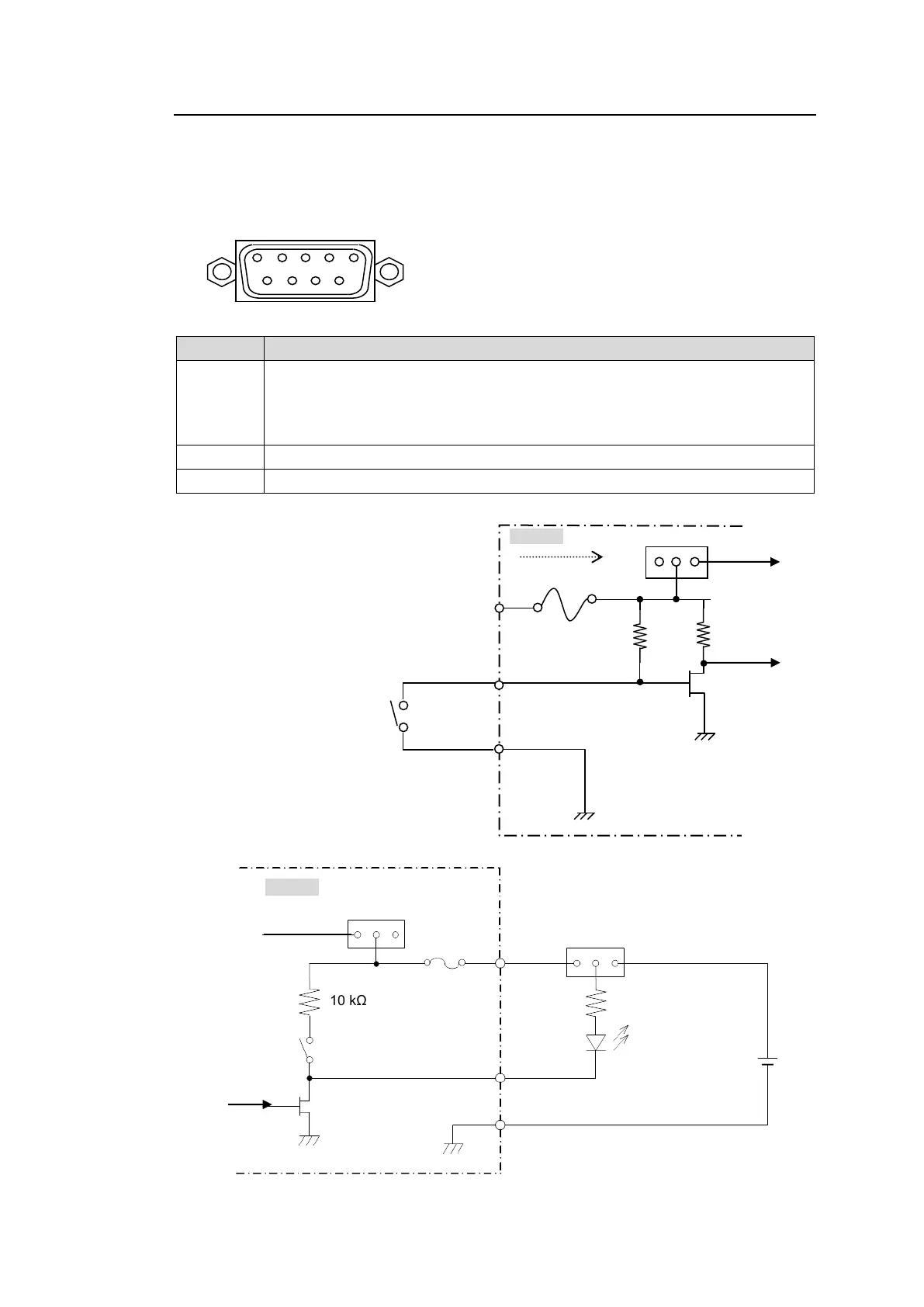

2-3-7. FA-96DB9-CBL (7 GPI Input/Output)
A GPI expansion cable that can be add 7 GPI input/output. Install the option to Slot E.
The FA-96DB9-CBL connector pin assignments are as shown in the table below.
Use the menu to select input or output function for each pin. (See Sec. 7-1. GPI UTILITY /
INPUT / OUTPUT.”)
FA-96DB9-CBL Connector (9-pin D-sub, female, with inch screws)
Connector Pin Assignments
Pin No.
Description
1
DC IN or DC OUT
DC IN or OUT (+5.0 V) set by the jumper pin: JP1 (See the next page.)
Factory default: DC OUT
Total max load current is 200 mA.
2-8
GPI 1 - 7 (Input or output)
9
GND (Signal ground)
GPI Input Circuit
Function ON: Pin shorted to ground
Function OFF: Pin opened
GPI input pulse width: 100 ms or more
GPI Output Circuit
10 kΩ
JP1
+5.0V
FUSE
PIN 1
PIN 2-8
+5-24V
External power
S2-1-7
Max 50 mA
PIN 9
3
1
FA-9600
1
3
PIN 9
PIN 2-8
FA-9600
+5.0V
JP1
PIN 1
FUSE
10 kΩ
3
4
5
1
2
8
9
7
6
