11-2-6. Ancillary Processor 1, 2

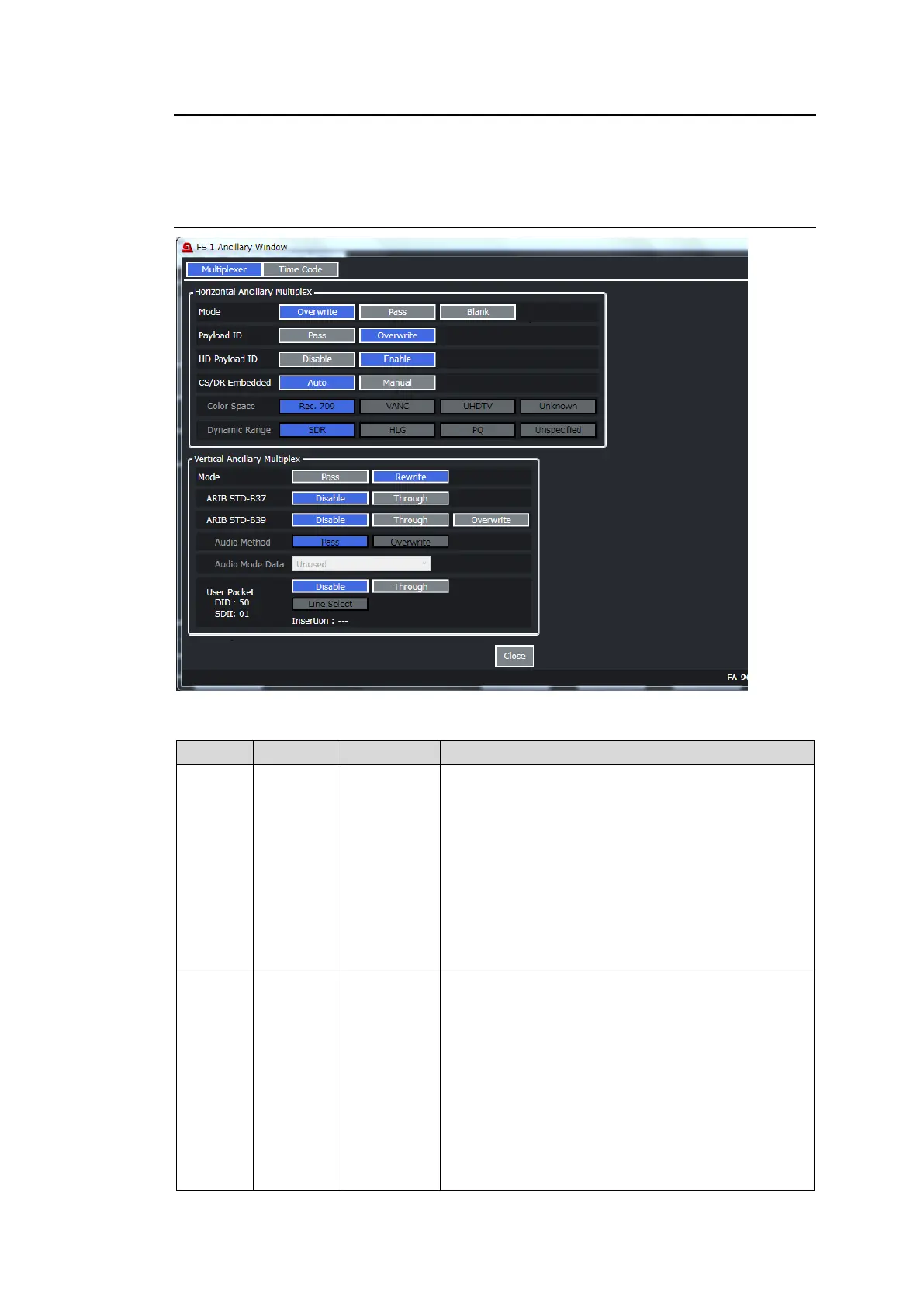

Click Ancillary Processor 1 or Ancillary Processor 2 in the Video Block to display the menu
window.
Switch the display by pressing Multiplexer or Time Code at the top of the window.
11-2-6-1. If Multiplexer Selected
Horizontal Ancillary Multiplex
Item
Default
Setting
Description
Mode
Overwrite
Overwrite
Pass
Blank
Selects the HANC data insertion mode to each FS
output.
Overwrite: Inserts the input HANC data in which
audio and timecode data are rewritten.
Pass: Inserts the input HANC data without
processing.
If input and output signal formats are different,
Blank” setting is automatically applied.
Blank: Clears HANC space and inserts only the
rewritten input audio and timecode data. See VANC
setting (below) for SD timecode processing.
Payload
ID
Overwrite
Pass
Overwrite
Selects payload identifier insertion mode.
Note that payload identifiers are always inserted if
output video signals are 4K or HD, regardless of
HANC and VANC settings and Payload ID codes in
input video.
Pass: Inserts the payload identifiers in the input
signal without change. If the input and output signal
formats are different, another payload code is
automatically inserted into the output signal
according to the following parameter settings.
Overwrite: Inserts payload ID code according to the
following parameter settings.
