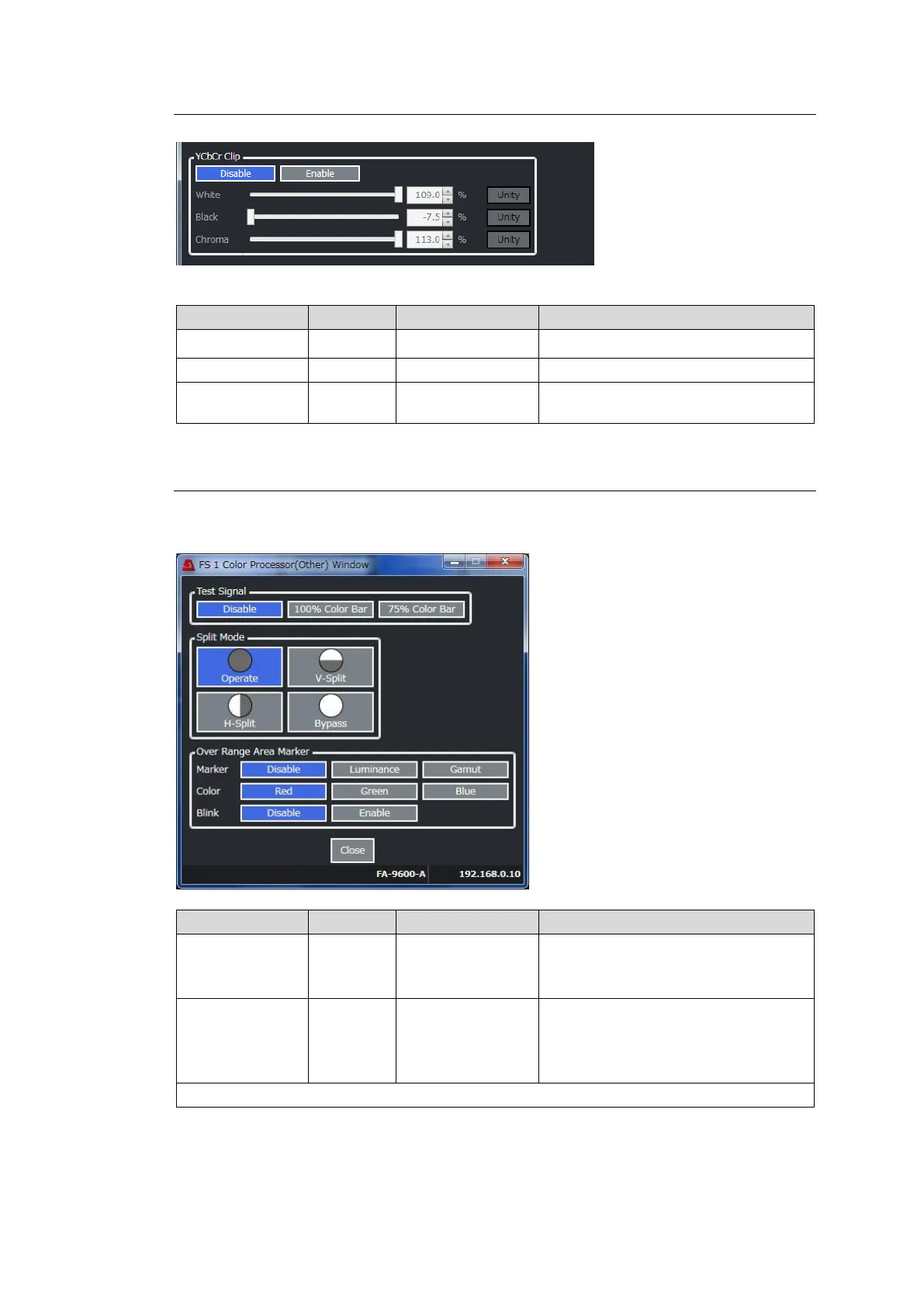

11-2-5-7. YCbCr Clip
Click Color Processor 1 or 2 in the Video Block and select YCbCr Clip to display the menu.
Use the Disable / Enable button to enable / disable YCbCr CLIP.
If enabled, the following parameters are available.
Item
Default
Setting
Description
White
109.0%
50.0 to 109.0%
Sets the upper Y signal limit.
Black
-7.5%
-7.5 to 50.0%
Sets the lower Y signal limit.
Chroma
113.0%
50.0 to 113.0%
Sets the upper and lower CbCr signal
limits.
11-2-5-8. Other
Click Color Processor 1 or Color Processor 2 in the Video Block and select Other to display
the window as shown below.
Item
Default
Setting
Description
Test Signal
Disable
Disable
100% Color Bar
75% Color Bar
Outputs the selected test signal.
Split Mode
Operate
Operate
V-Split
H-Split
Bypass
Selects the output image display
method.
The following settings require FA-96AHDR or AHDR2.
