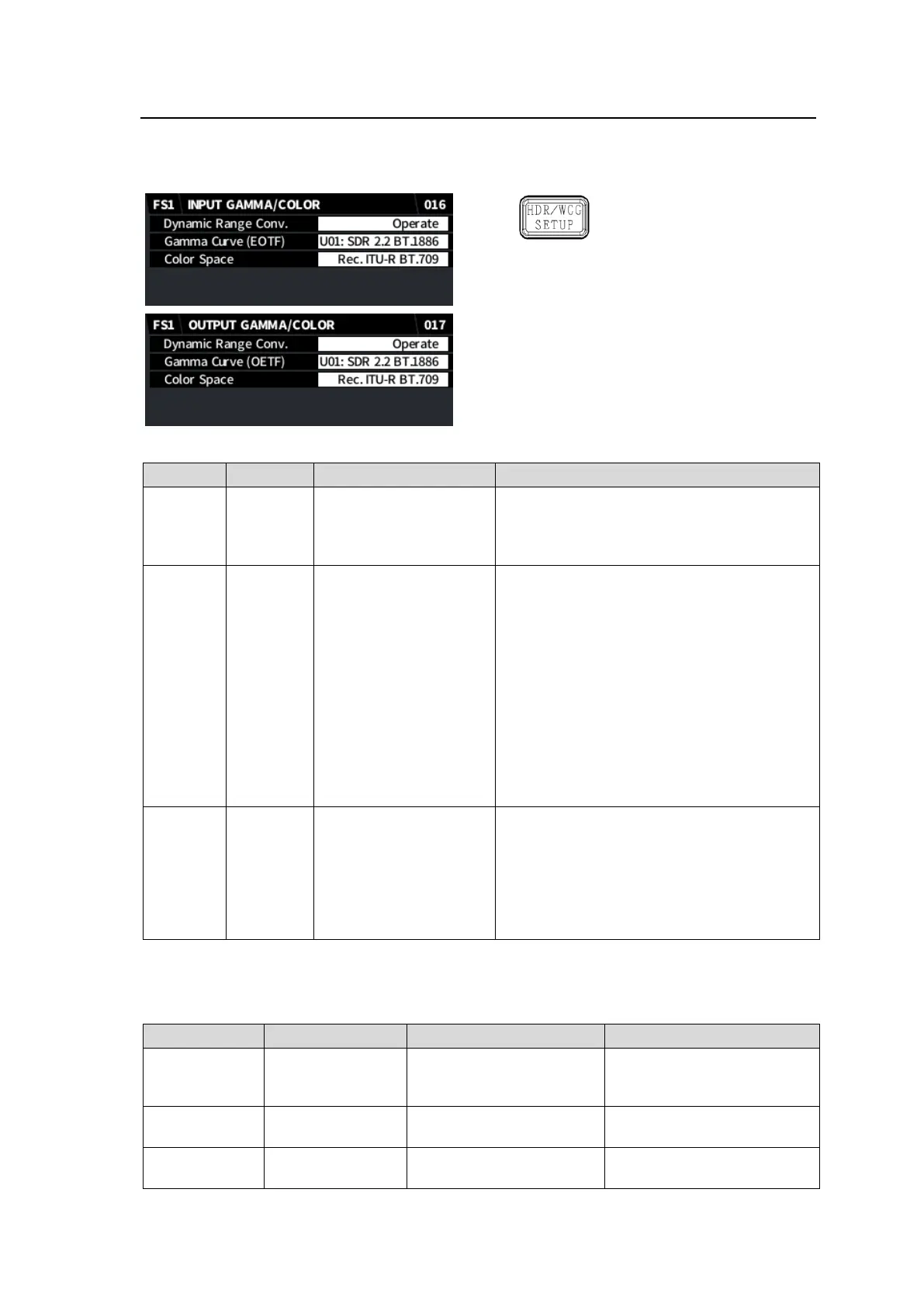

5-4. INPUT / OUTPUT GAMMA / COLOR
Input/output gamma and/or color space conversions require complex settings. To make settings
easier, preset settings using event function are provided. See Sec 4-1 Color Processor Setting
Examples.”
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
INPUT GAMMA/COLOR
Item
Default
Setting
Description
Dynamic
Range
Conv.
Bypass
Bypass
Operate
Operate: Performs the Dynamic Range/Color
Space processing and enables the Gamma
Curve and Color Space settings.
(*1)
Bypass: Bypasses the processing.
Gamma
Curve
(EOTF)
U01:
SDR 2.2
BT.1886
U01: SDR 2.2 BT.1886
U02: SDR 2.4 BT.1886
U03: HLG BT.2100
U04: HLG (RGB SG1.2)
U05: HLG (RGB SG1.4)
U06: ST 2084 (PQ)
U07: SDR 2.2 BT.709
U08: S-Log3
U09: 01_Canon Log 2
U10: 01_Canon Log 3
S-Log3 Live HDR
SDR(SONY)
Selects a gamma curve for input.
Gamma setting data as shown at left are
respectively stored in files named U01 to
U10.
Gamma data names and content can be
changed by editing files in the Web GUI. (See
Sec. 13-4. “Data.”)
These settings are shared by both input and
output gamma curve settings.
S-Log3 Live HDR and SDR(SONY) require
FA-96AHDR2 option.
If SDR(SONY) is selected, choose a curve in
the SR-Live menu (No. 021).
Color
Space
Rec.
ITU-R
BT.709
Rec. ITU-R BT.709
Rec. ITU-R BT.2020
U1: S-Gamut/Gamut3
U2:User2
U3:User3
U4:User4
U5:User5
Selects a color space for input.
U1 to U5 Gamut settings are stored in files
and these names and content can be
changed by editing files in the Web GUI. (See
Sec. 13-4. “Data.”)
These settings are shared by both input and
output gamut curve settings.
(*1) If Dynamic Range Conv. is set to Operate, super black below 0IRE in input video is clipped and not
passed through.
OUTPUT GAMMA/COLOR
Item
Default
Setting
Description
Dynamic
Range Conv.
Bypass
Bypass
Operate
(Same setting as in the
INPUT GAMMA/ COLOR
menu above)
Gamma Curve
(OETF)
U01:
SDR 2.2 BT.1886
(Same as INPUT GAMMA
/ COLOR menu)
Selects a gamma curve for
output.
Color Space
Rec. ITU-R BT.
709
(Same as INPUT GAMMA
/ COLOR menu)
Selects a color space for
output.
