11-2-5-6. RGB Clip / Knee

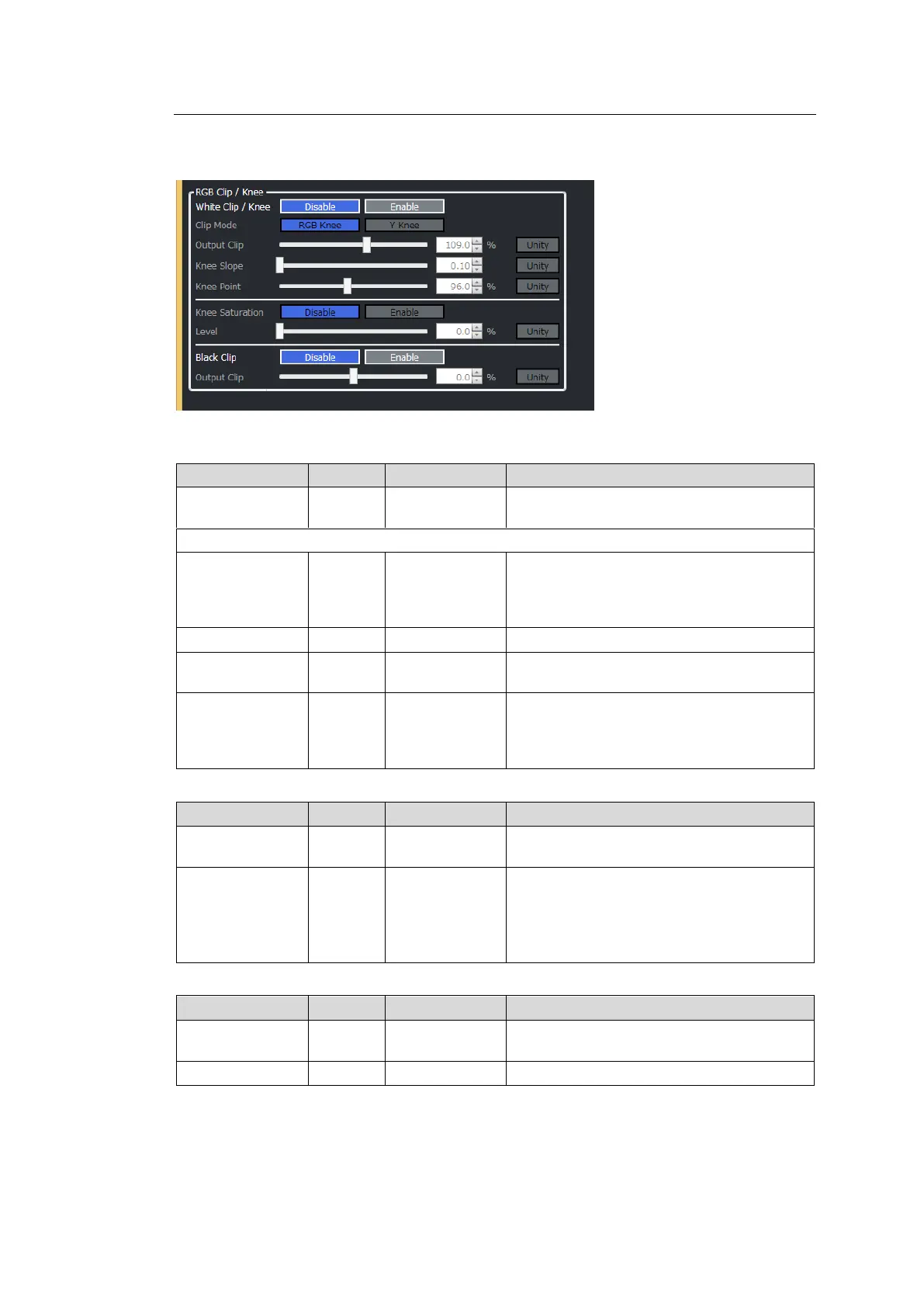

Click Color Processor 1 or Color Processor 2 in the Video Block and select RGB Clip /
Knee to display the window as shown below.
RGB Clip / Knee
Item
Default
Setting
Description
White Clip /
Knee
Disable
Disable
Enable
Enables / disables Knee function.
Following 3 parameters are available when White Clip / Knee is set to Enable.
Clip Mode
RGB
Knee
RGB Knee
Y Knee
Selects RGB or Y for knee correction
mode. Selecting Y Knee preserves colors
more vividly in the knee correction (high
luminance) areas.
Output Clip
109.0 %
50.0 - 150.0%
Sets the White threshold in RGB.
Knee Slope
0.10
0.10-1.00%
Sets the knee slope inclination
(compression ratio).
Knee Point
96.0 %
50.0 - 150.0%
Sets the knee slope start point. The
maximum and default values vary
depending on White Leve (RGB White
CLIP) setting.
Knee Saturation (Enabled when Clip Mode =Y Knee)
Item
Default
Setting
Description
Saturation
Disable
Disable
Enable
Enables / disables the Saturation Level
setting below.
Level
0 %
0 - 200%
Sets the Saturation Level for the knee
correction (high luminance) areas.
The smaller the value, the more colors are
desaturated. Setting the value more than
100% makes colors thicker.
Black Clip
Item
Default
Setting
Description
Disable /Enable
Disable
Disable
Enable
Enables/disables the Output Clip setting
below.
Output Clip
0.0%
-50.0 to 50.0%
Sets the Black threshold in RGB.
