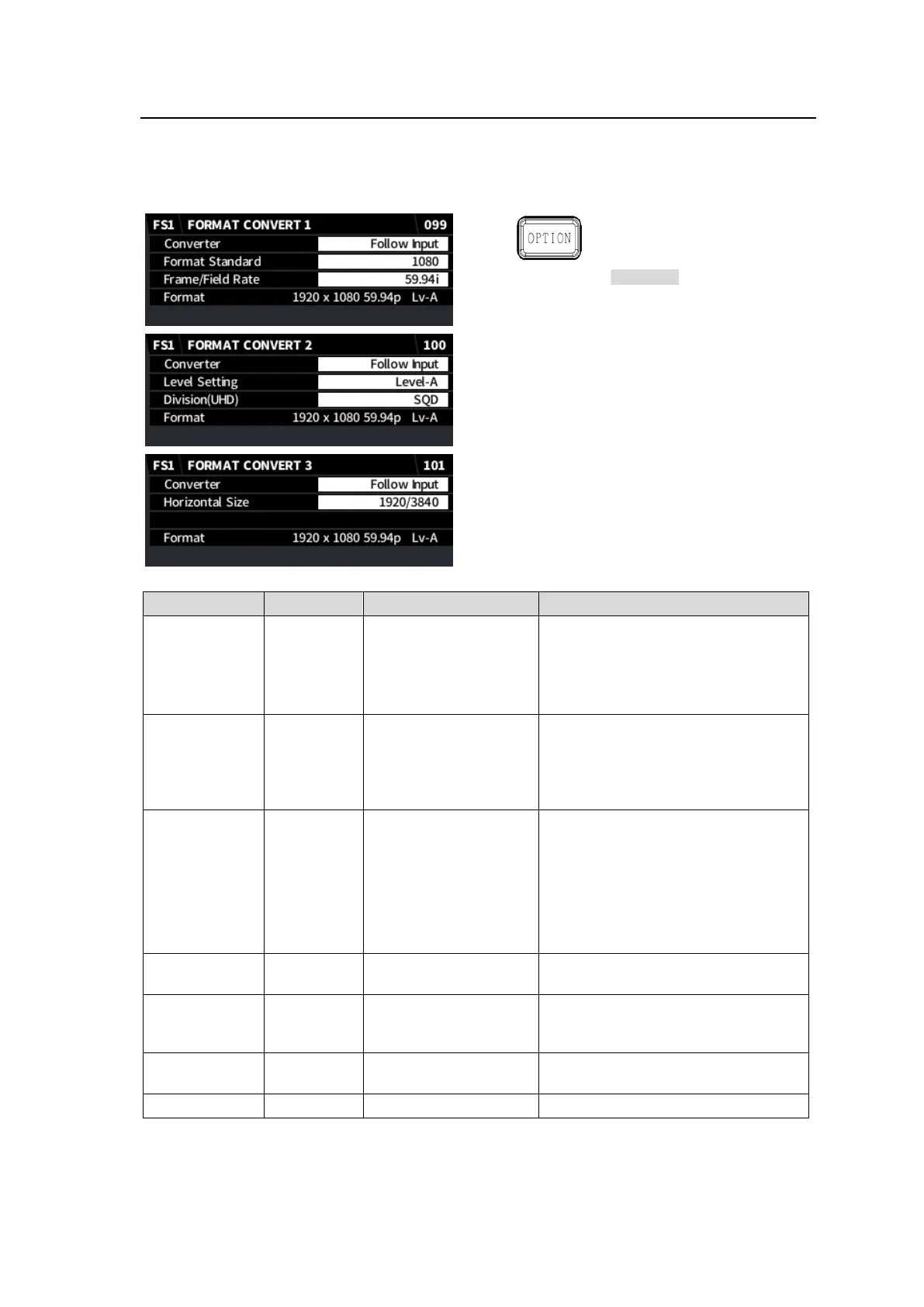

5-20. CONVERTER FORMAT (FA-96UDC)
This menu requires FA-96UDC to be installed.
See Sec. 5-20-1 Available Conversions on Converter 1 (FS1)” and Sec. 5-20-2 Available
Conversions on Converter 2 (FS2)” for more details.
Simultaneous 4K/HD (FS1)
Dual HD
3D-LUT (FS1)
Required
Option
FA-96UDC
Item
Default
Setting
Description
Converter
Follow Input
Follow Input
Manual
Specifies the converter output format.
Follow Input: Converter input signal
format
Manual: Signal format specified
below.
Format
Standard
1080
SD
720
1080
2160
Specifies the output format after
conversion.
2160 available with FA-964K in
Simultaneous 4K/HD and 3D-LUT
mode (FS1 only).
Frame/Field
Rate
59.94i
60p, 59.94p
50p, 48p, 47.95p
30p, 29.97p
25p, 24p, 23.98p
60i, 59.94i, 50i
24PsF, 23.98PsF
30PsF, 29.97PsF
25PsF
Specifies the frame/field rate.
Level Setting
Level-A
Level-A
Level-B
Selects the SDI mapping level.
Division (UHD)
(FA-964K)
2SI
SQD
2SI
Selects the SDI image division
method when 2160 is selected under
Format Standard.
Horizontal Size
1920/3840
1920/3840
Displays the horizontal image
resolution. (Display only)
Format
-
-
Displays the converter output format.
