123

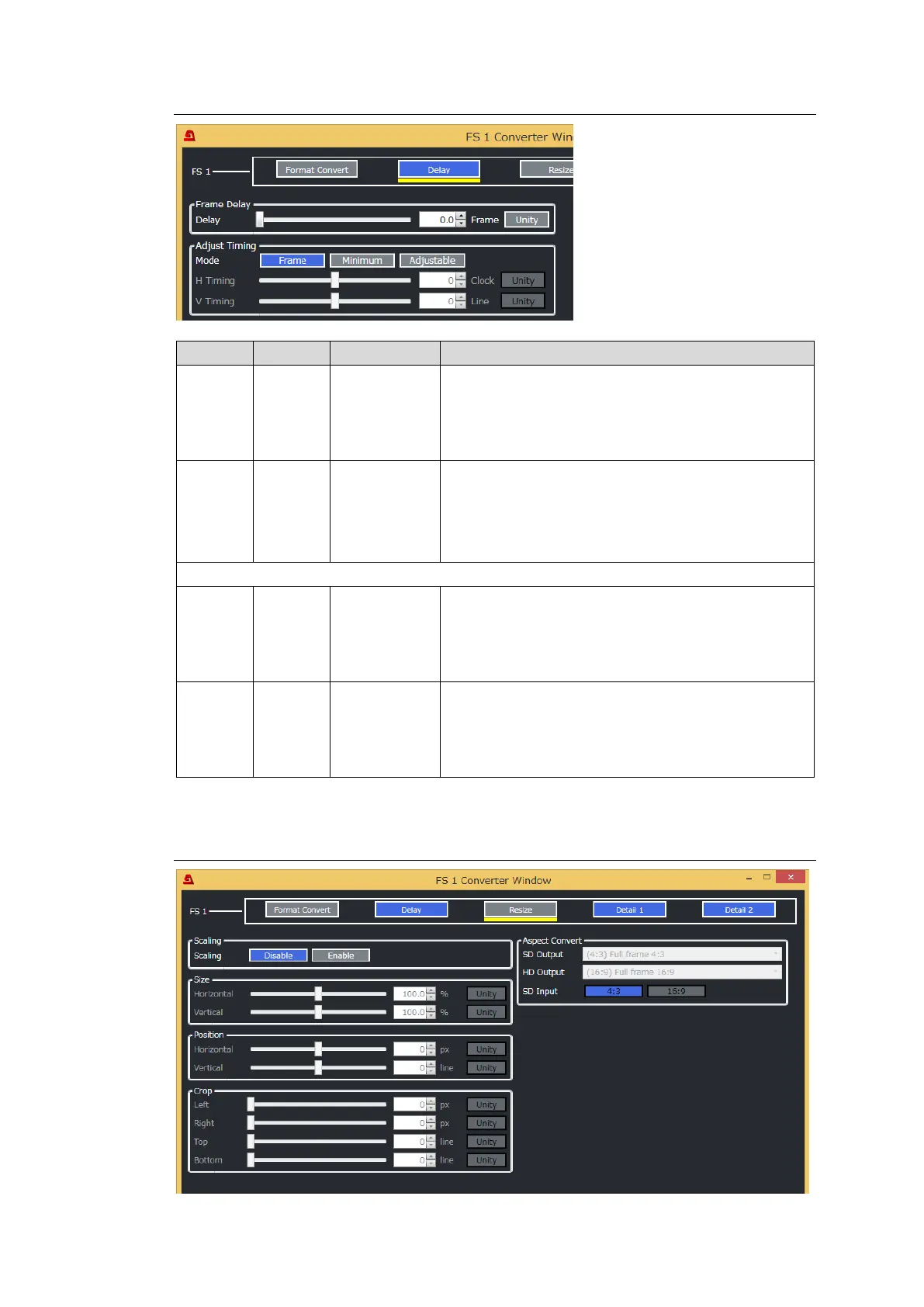

11-2-3-2. If Delay Selected
Item
Default
Setting
Description
Delay
(*1)
0.0
0.0 to 8.0
Allows you to add a delay to converter output in 0.5
frames.
<3G-Level B, 1080i and SD outputs>
Per 0.5 frames for progressive input or aspect
conversion and per one frames for other cases.
Mode
Frame
Frame
Minimum
Adjustable
Sets the conversion delay mode.
Frame: Applies the delay set under Delay.
Minimum: Applies the minimum delay.
Adjustable: Applies the adjustable delay based on
the Delay setting.
If Delay Mode is set to Adjustable, use the following parameters to adjust the output timing.
H Timing
0 Clock
-2750 to 2750
Clock
Finely adjusts the horizontal timing.
Adjustable range is defined by video format (see
Sec. 5-21. "ADJUST TIMING (FA-96UDC)") and one
line will be added or decreased internally if
exceeding the range.
V Timing
0 Line
-563 to 563
Line
Finely adjusts the vertical timing.
Adjustable range is defined by video format (see
Sec. 5-21. "ADJUST TIMING (FA-96UDC)") and the
vertical timing will be inverted internally (between
positive and negative) if exceeding the range.
(*1)
Unavailable if Delay mode is set to Normal. (See Sec. 11-1. “Selecting MU Modes.”).
11-2-3-3. If Resize Selected (Converter 1 Only)
