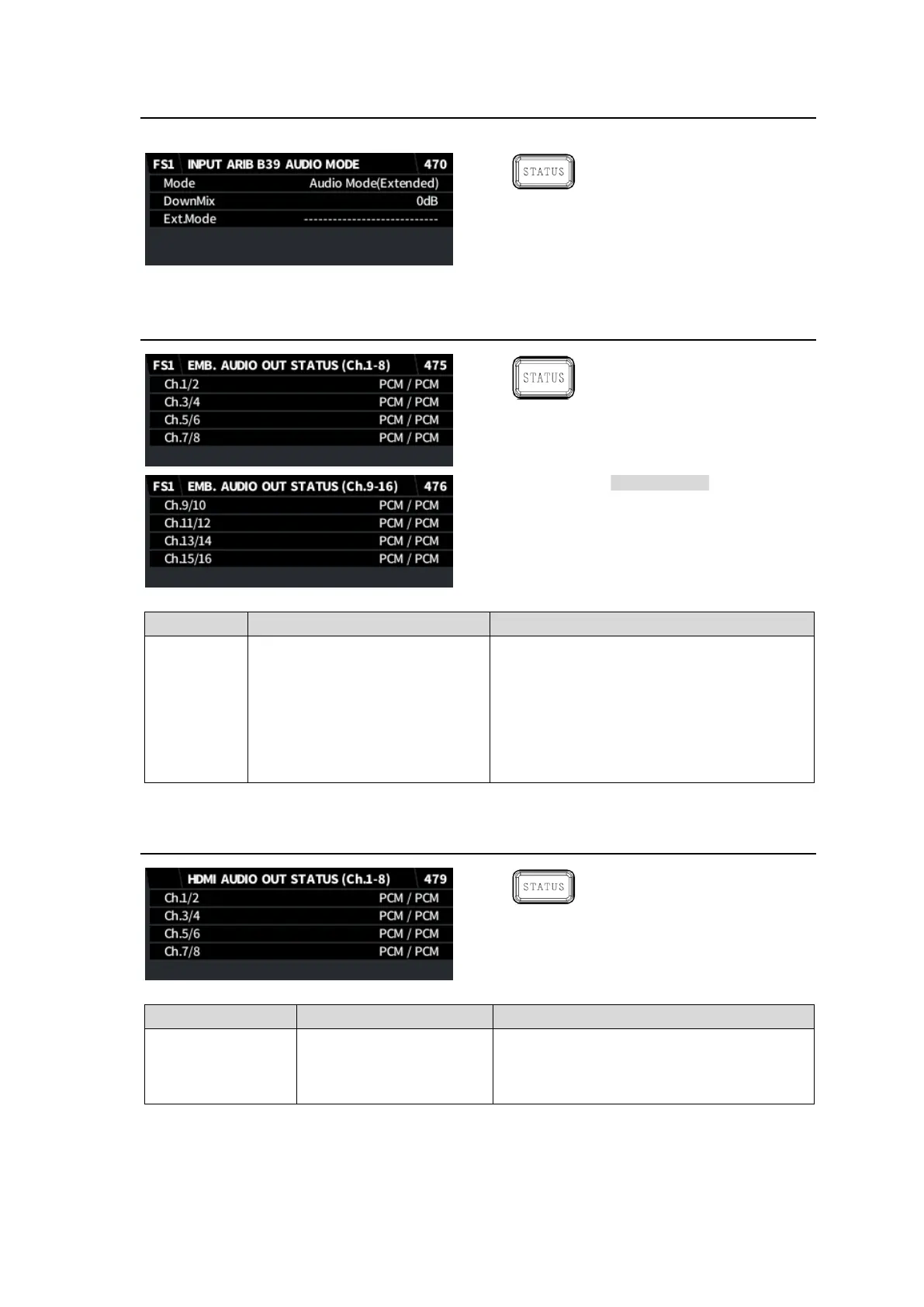

107
7-13. INPUT ARIB B39 AUDIO MODE
Displays the ARIB B39 Audio Mode in ancillary area of SDI input.
7-14. EMB. AUDIO OUT STATUS
Option
FA-96AES-UBL
Item
Display
Description
Ch.1/2
Ch.3/4
Ch.5/6
Ch.7/8
Ch.9/10
Ch.11/12
Ch.13/14
Ch.15/16
PCM, PCM (Async)
Mute, Mute (Async)
Dolby E, Dolby E (Async)
Non-PCM, Non-PCM (Async)
Blank
Displays each embedded audio channel
status of the FS1 or FS2 SDI output.
7-15. HDMI AUDIO OUT STATUS
Item
Display
Description
Ch.1/2
Ch.3/4
Ch.5/6
Ch.7/8
PCM
Mute
Blank
Not Supported
Displays HDMI output audio channel status.
