5-42-1. FRAME DELAY Difference between Old and New Versions
The FRAME DELAY function significantly changes in FA-9600 Version 3.3.
FA-9600 version
FRAME DELAY
Old versions (Legacy mode)
(until Version 3.2x)
The function is included in the FA-96UDC option and adds a
delay to Converter 1 and Converter 2 output respectively.
New versions (Normal)
(Version 3.3x and later)
The function is provided as standard and adds a delay to
FS1 and FS2 output respectively.

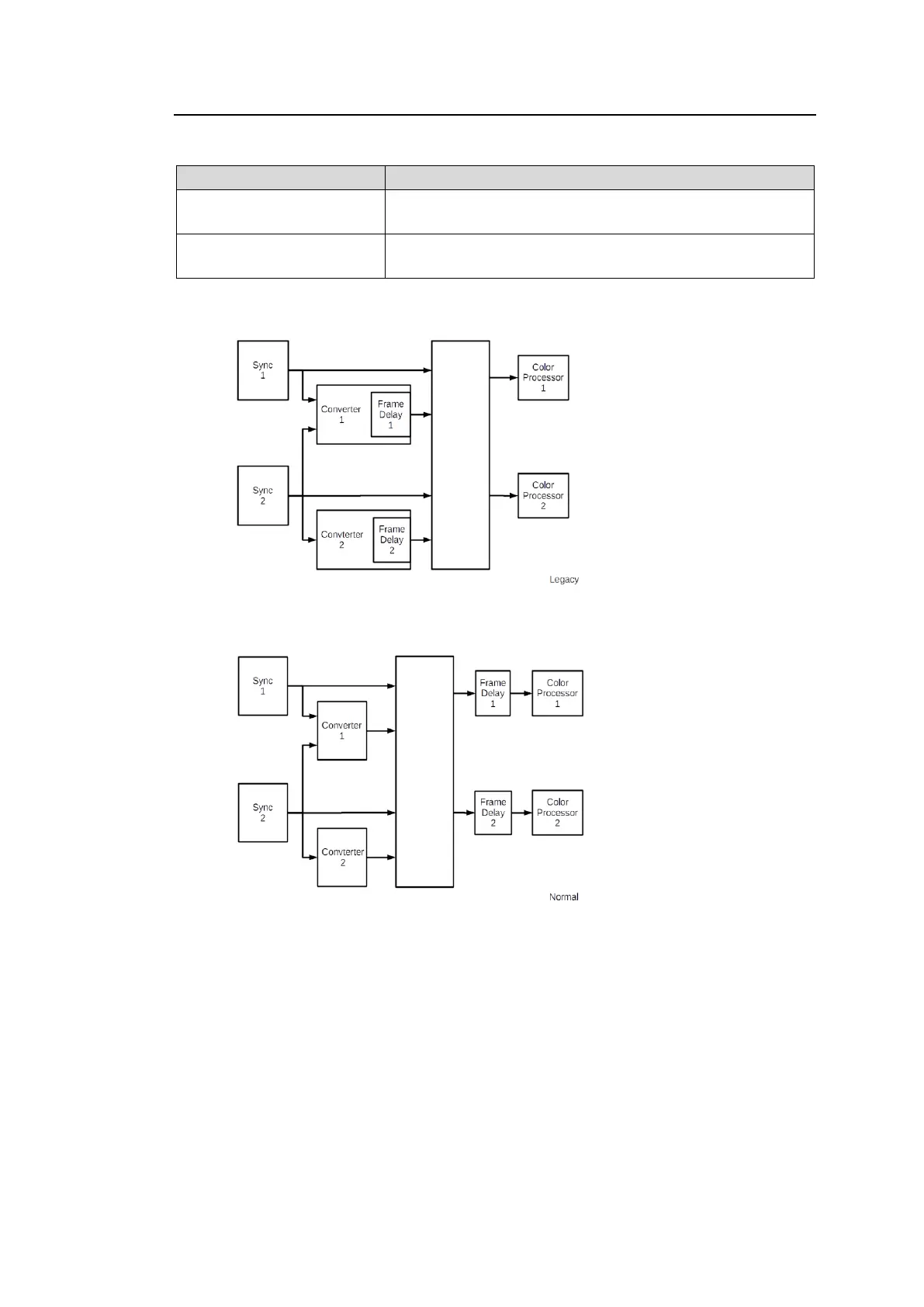

Legacy Mode Block Diagram
Normal Mode Block Diagram
 The FRAME DELAY values stored in the following events are ignored in new versions.
Event data stored in FA-9600 old versions (until V3.2x)
Event data created by the Event Editor or using event data list written in manuals of old
FA-9600 versions.
 To apply FRAME DELAY values in old versions to those in new versions
Recreate events using the new Event Editor or event data list in this manual.
 Refer to Sec. 8. “Event Memory” for details on how to save events.
 Refer to Sec. 14. “Event Data (CSV File)” for details on how to create events using
other methods.
