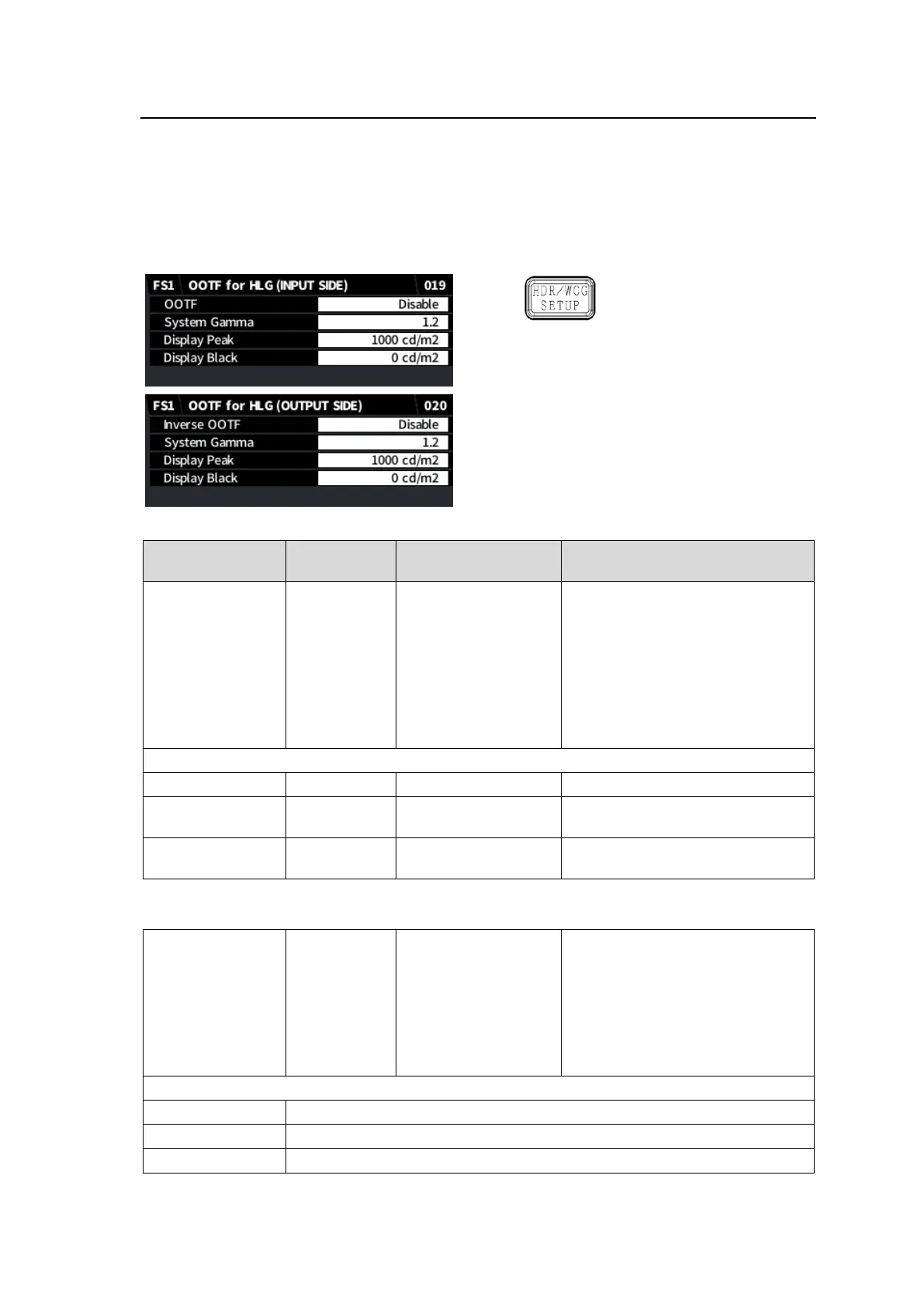

5-5. OOTF for HLG
This menu is enabled if Dynamic Range Conv. is set to Operate. (See Sec. 5-4 "INPUT / OUTPUT
GAMMA / COLOR.")
OOTF is applied as a display gamma (see ITU-R BT.2390) and effective when converting a signal
to or from an HLG signal (with BT.2100 gamma curve).
Set OOTF to Enable for input curve and Inverse OOTF to Enable for output curve, then adjust
other parameters.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
OOTF for HLG (INPUT SIDE)
Item
Default
Setting
(Steps)
Description
OOTF
Disable
Disable
Enable
Selecting Enable applies
correction when converting signals
from HLG to another gamma curve
referring to monitor brightness
range.
Selects the gamma and luminance
peaks below.
See Sec. 5-6-1. "About OOTF
Related Parameters."
After selecting Enable for OOTF, set the following parameters.
System Gamma
1.2
1.0 - 2.0
Sets the gamma value.
Display Peak
1,000 cd/m2
100 - 10,000 cd/m2
(100 cd/m2)
Sets the maximum luminance
peak for Display Light.
Display Black
0 cd/m2
0 - 100 cd/m2
(10 cd/m2)
Sets the minimum luminance peak
for Display Light.
OOTF for HLG (OUTPUT SIDE)
Inverse OOTF
Disable
Disable
Enable
Selecting Inverse OOTF applies
correction when converting signals
to HLG from another gamma curve
referring to monitor brightness
range. Selects the gamma and
luminance peaks below.
See Sec. 5-6-1. "About OOTF
Related Parameters."
After selecting Enable for Inverse OOTF, set the following parameters.
System Gamma
(Same as above)
Display Peak
(Same as above)
Display Black
(Same as above)
