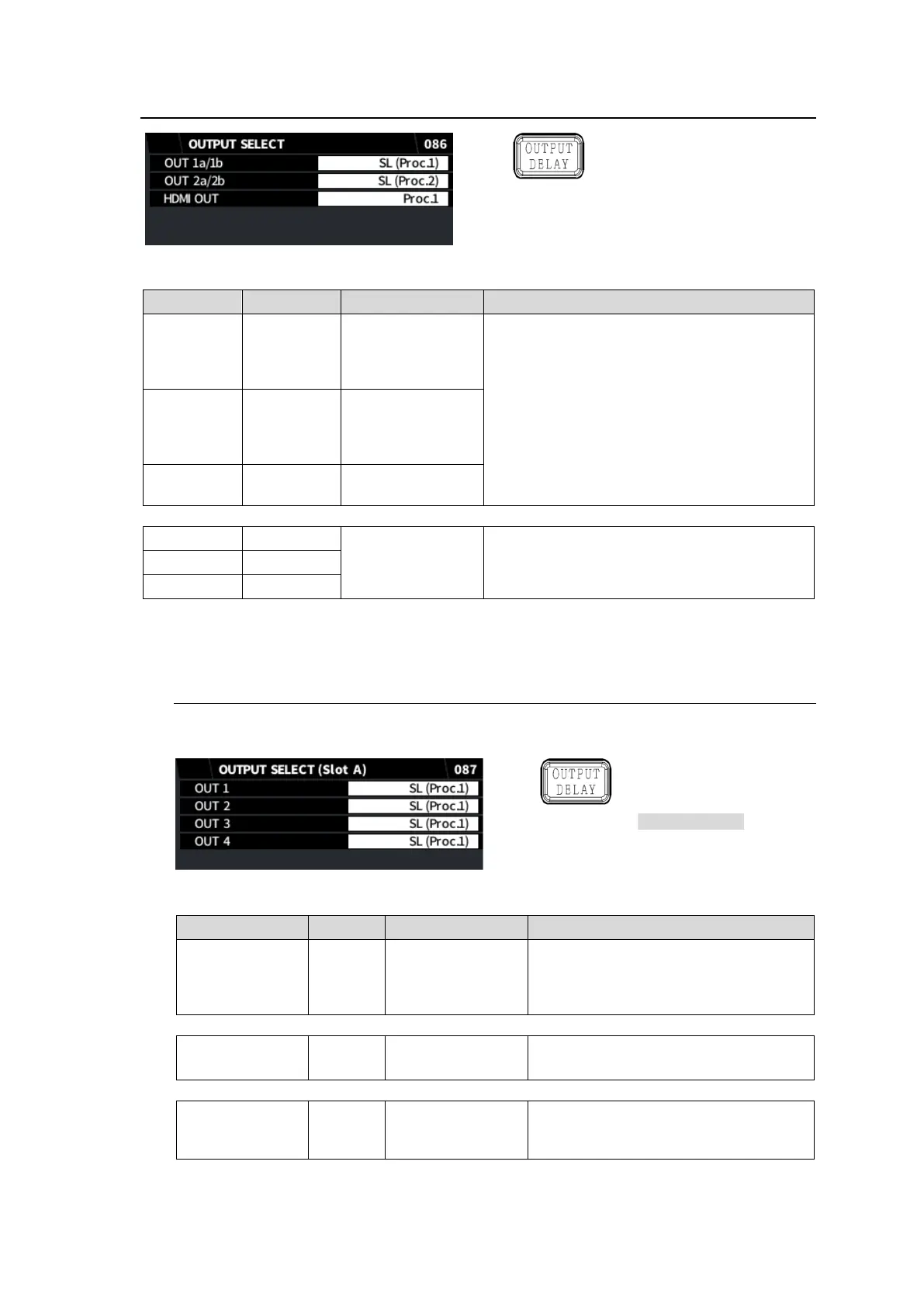

5-19. OUTPUT SELECT
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / Proc1)
<Simultaneous 4K/HD mode>
<3D-LUT mode>
Item
Default
Setting
Description
OUT 1a/1b
SL (Proc.1)
SL (Proc.1)
SL (Proc.2)
DL L1/L2(Proc.1)
QL L1/L2(Proc.1)
Assigns video signals (Color Processor
output) to output ports.
SL: Single Link signal
DL: Dual Link signal
(*1)
QL: Quad Link signal
(*1)
Proc. 1: Color Processor1 output (FS1)
(*1)
Proc. 2: Color Processor2 output (FS2) and
unavailable in 3D-LUT mode.
OUT 2a/2b
SL (Proc.2)
SL (Proc.1)
SL (Proc.2)
DL L1/L2(Proc.1)
QL L3/L4(Proc.1)
HDMI OUT
Proc.1
Proc.1
Proc.2
<Dual HD mode>
OUT 1a/1b
Proc.1
Proc.1
Proc.2
Assigns video signals (Color Processor
output) to output ports.
OUT 2a/2b
Proc.2
HDMI OUT
Proc.1
(*1) For 4K output, SDI link numbers can be manually assigned to each output port.
For HD/SD output, all ports distribute the same video signal regardless of selecting DL or QL.
5-19-1. OUTPUT SELECT (Slot A)
FA-96EX3G44-R Option
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Required
Option
FA-96EX3G44-R
< Simultaneous 4K/HD mode>
Item
Default
Setting
Description
OUT 1 to OUT4
Proc.1
SL (Proc.1)
(*1)
SL (Proc.2)
DL L1 (Proc.1)
(*2)
QL L1 (Proc.1)
(*2)
Assigns a video signal to each output
port.
<Dual HD mode>
OUT 1a to 4
Proc.1
Proc.1
Proc.2
Assigns a video signal to each output
port.
<3D-LUT mode>
OUT 1 to OUT4
Proc.1
SL (Proc.1)
(*1)
DL L1 (Proc.1)
(*2)
QL L1 (Proc.1)
(*2)
Assigns a video signal to each output
port.
