FOR-A FA-9600 Series User Manual

51

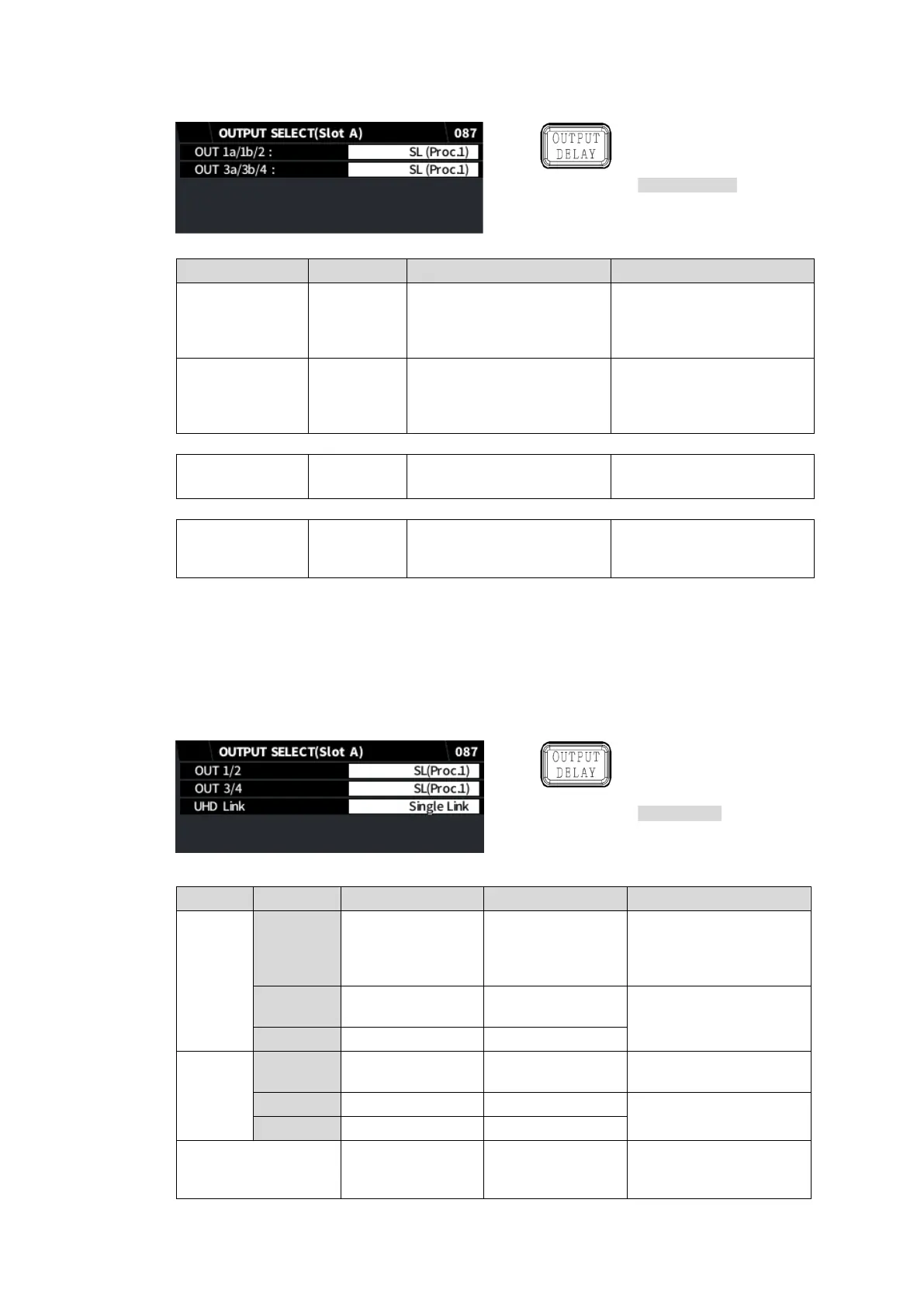

◆ FA-96EX12G06 Option
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / Proc1)
Required
Option
FA-96EX12G06
< Simultaneous 4K/HD mode>
Item
Default
Setting
Description
OUT 1a/1b/2
SL (Proc.1)
SL (Proc.1)
SL (Proc.2)
DL L1/L1/L1 (Proc.1)
(*2)
QL L1/L1/L2 (Proc.1)
(*2)
Assigns a video signal to
each output port.
OUT 3a/3b/4
SL (Proc.1)
SL (Proc.1)
SL (Proc.2)
DL L2/L2/L2 (Proc.1)
(*2)
QL L3/L3/L4 (Proc.1)
(*2)
Assigns a video signal to
each output port.
<Dual HD mode>
OUT 1a to 4
Proc.1
Proc.1
Proc.2
Assigns a video signal to
each output port.
<3D-LUT mode>
OUT 1 to OUT4
Proc.1
SL (Proc.1)
DL L1 (Proc.1)
(*2)
QL L1 (Proc.1)
(*2)
Assigns a video signal to
each output port.
(*1) For Quad Link 4K output, use either of the following settings:
Assign SL (Proc.1) to all four ports.
Respectively assign QL L1 to 4 to four ports.
(*2) For 4K output, SDI link numbers can be manually assigned to each output port.
For HD/SD output, all ports distribute the same video signal regardless of selecting DL or QL.
◆ FA-96SFPC4 Option
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / Proc1)
Required
Option
FA-96SFPC4
< Simultaneous 4K/HD mode>
Item
(UHD link)
Default
Setting
Description
OUT 1/2
Single
SL (Proc.1)
SL (Proc.1)
SL (Proc.2)
SL(P1)/SL(P2)
SL(P2)/SL(P1)
Assigns a video signal to
each output port.
Dual
DL L1/L2 (Proc 1)
DL L1/L2 (Proc 1)
SL (Proc.2)
Output video signal
(Fixed)
Quad
-
QL L1/L2 (Proc 1)
OUT 3/4
Single
SL (Proc.1)
(Same as
OUT1/2)
Assigns a video signal to
each output port.
Dual
-
DL L1/L2 (Proc 1)
Output video signal
(Fixed)
Quad
-
QL L3/L4 (Proc 1)
UHD Link
Single Link
Single Link
Dual Link
Quad Link
Selects the UHD 4K SDI
link format for output.
