90

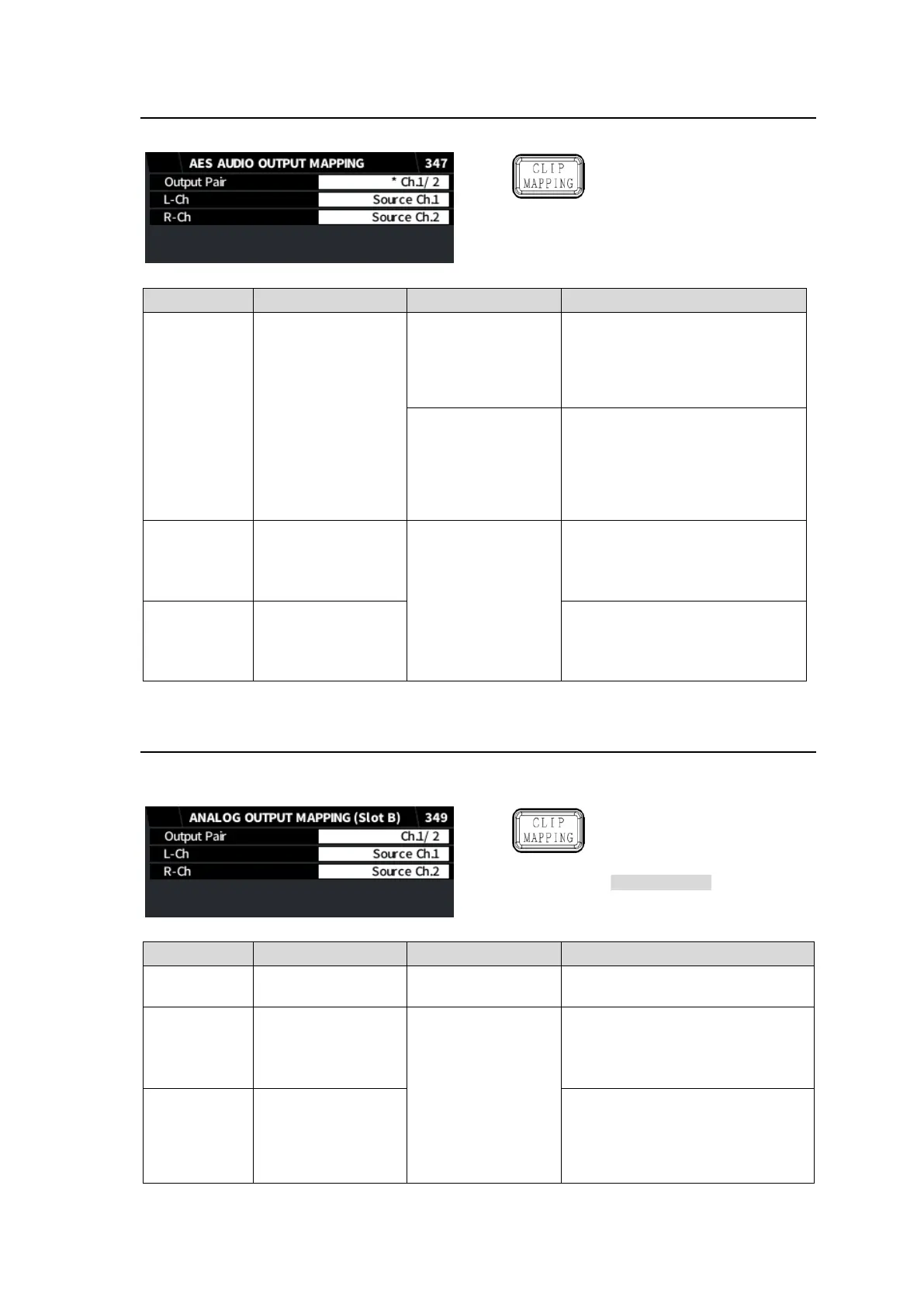

6-12. AES AUDIO OUTPUT MAPPING
Allows you to select AES output audio from the same audio sources as those for SDI output.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Item
Default
Setting
Description
Output Pair
-
Ch.1/2-7/8
Selects an output channel pair.
If an asterisk (*) is displayed in
front of channels, they are used
as input and cannot be used for
output.
(OP) Ch.1/ 2-7/8
Selects an output channel pair.
(FA-96AES-UBL required)
If an asterisk (*) is displayed in
front of channels, they are used
as input and cannot be used for
output.
L-Ch
Ch.1: Source Ch.1
Ch.3: Source Ch.3
Ch.5: Source Ch.5
Ch.7: Source Ch.7
Source Ch.1-32
500Hz Tone
1kHz Tone
Silence
Downmix 1_L
Downmix 1_R
Downmix 2_L
Downmix 2_R
Mono Sum 1-16
Selects the L channel source.
R-Ch
Ch.2: Source Ch.2
Ch.4: Source Ch.4
Ch.6: Source Ch.6
Ch.8: Source Ch.8
Selects the R channel source.
6-13. ANALOG AUDIO OUTPUT MAPPING
Allows you to select analog output audio from the same audio sources as those for SDI output.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Required
option
FA-96ANA-AUD
Item
Default
Setting
Description
Output Pair
-
Ch.1/2
Ch.3/4
Selects an output channel pair.
L-Ch
Ch1: Source Ch.1
Ch3: Source Ch.3
Source Ch.1-32
500Hz Tone
1kHz Tone
Silence
Downmix 1_L
Downmix 1_R
Downmix 2_L
Downmix 2_R
Mono Sum 1-16
Selects the L channel source.
R-Ch
Ch2: Source Ch.2
Ch4: Source Ch.4
Selects the R channel source.
