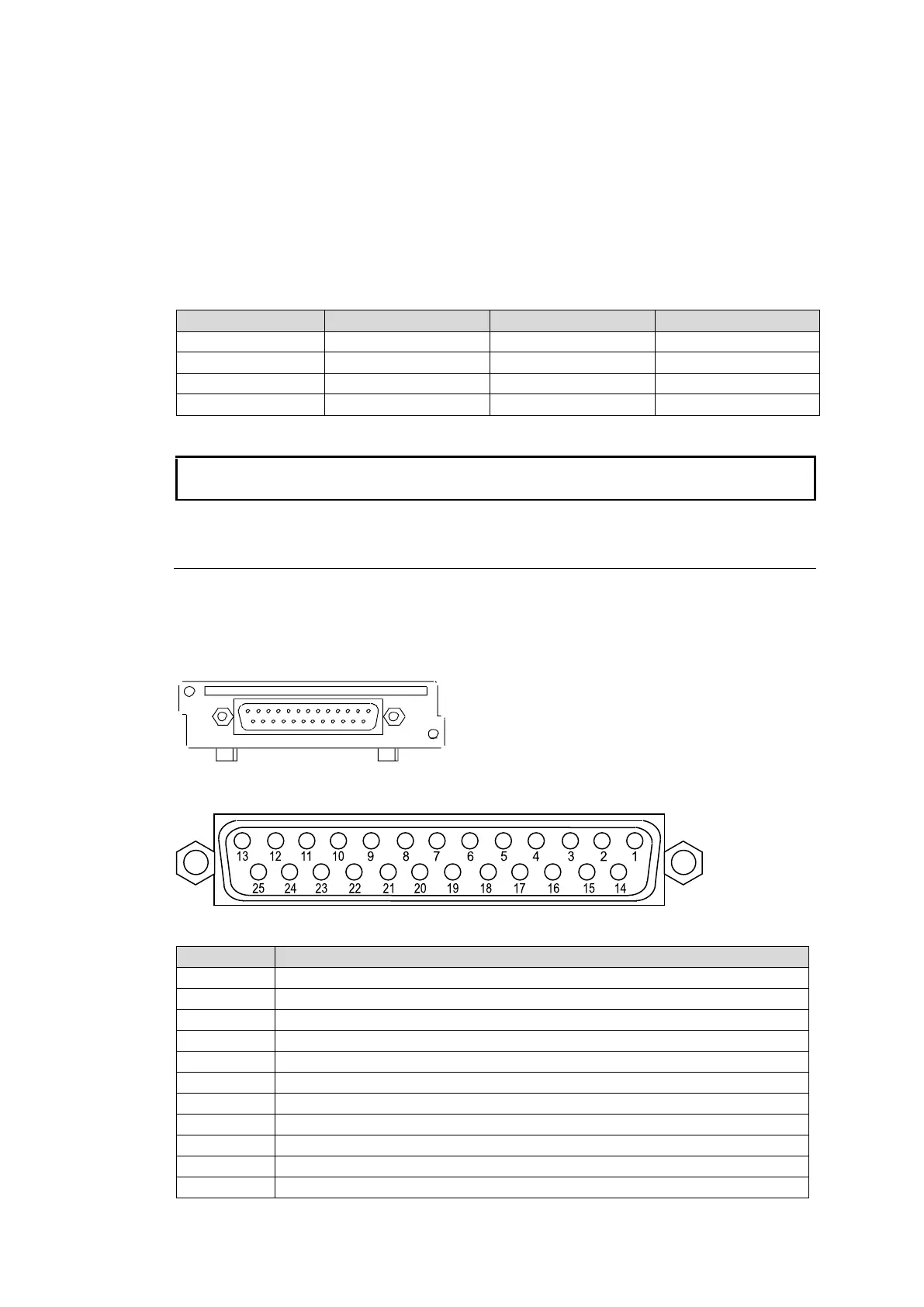

21
Jumper Setting
JP1: Switches between internal and external power.
1-2 shorted: DC IN (External power input)
2-3 shorted: DC OUT (Internal power output)
Dipswitch Settings
S2: 7 dipswitch pins turn output on/off.
Off: Push-pull output (factory default setting)
On: Open-drain output
Dipswitch Pin Assignments
Dipswitch pin
Controlled output
Dipswitch pin
Controlled output
S2-1
GPI OUT 1
S2-5
GPI OUT 5
S2-2
GPI OUT 2
S2-6
GPI OUT 6
S2-3
GPI OUT 3
S2-7
GPI OUT 7
S2-4
GPI OUT 4
IMPORTANT
Loadable current for the GPI output circuit: Max 50 mA.
External power supply voltage: +5 to +24V DC
2-3-8. FA-96GPI (10 Inputs and 10 Outputs)
GPI interface card that provides 10 inputs and 10 outputs.
Each input/output terminal is function-assignable. To assign functions, see Sec. 7-1 GPI
UTILITY/INPUT/OUTPUT.
Install to Slot B or C.
GPI
FA-96GPI Connector (25-pin D-sub, female, with inch screws)
Connector Pin Assignments
Pin No.
Description
1
GND (Signal ground)
2
GPI OUT 1
3
GPI OUT 2
4
GPI OUT 3
5
GPI OUT 4
6
GPI OUT 5
7
GND (Signal ground)
8
GPI IN 1
9
GPI IN 2
10
GPI IN 3
11
GPI IN 4
1
