1. Prior to Starting
1-1. Overview
The FA-9600 multi-purpose signal processor provides dual channel SD/HD frame synchronizer,
with optionally supporting UHD 4K signals through Quad-Link 3G-SDI
(*1,*2)
, Single-Link 12G-SDI
(*1)
and HDMI 2.0
(*1)
interfaces.
More than a basic frame synchronizer, the FA-9600 is equipped with various converting capabilities
including up-/down-conversions
(*3)
. A newly developed color processing circuit supports the latest
gamut and dynamic range specifications, and allows to interchange various video signals. Offering
a wide range of audio processing, core features of remapping and gain adjustment.
The FA-9600 can be expanded by adding optional cards that make it an ideal standalone solution
at transmission centers, in mobile production trucks, production studios, news stations, and other
nonlinear editing and playout production environments.
(*1)
FA-964K required
(*2)
FA-96EX3G44-R required
(*3)
FA-96UDC required
POWER
EVENT
LOCK
FS2
FS1
F4F3F2
UNITYUNITYUNITYUNITY
F1
GENLOCK
DC POWER
FAN ALARM
ON/OFFDISP
FA-9600
OPTION
MAPPING
CLIP
DELAY
OUTPUT
DWN MIX
CC
STATUSSYSTEM
GAIN
ANC
AES
INPUT
HDR/WCG
VIDEO
AUDIO
EMB
PROC
ANALOG
SETUP
FRAME SYNCHRONIZER
ON
OFF
AC100-240V 50/60Hz IN
12
IN2 OUT2a OUT2b
IN1 OUT1a OUT1b
IN OUT
1/2 7/85/63/4
3G/HD/SD-SDILAN 12G/6G/3G/HD/SD-SDI
GENLOCK IN
HDMI
DIGITAL AUDIO IN/OUT
B DA C
E

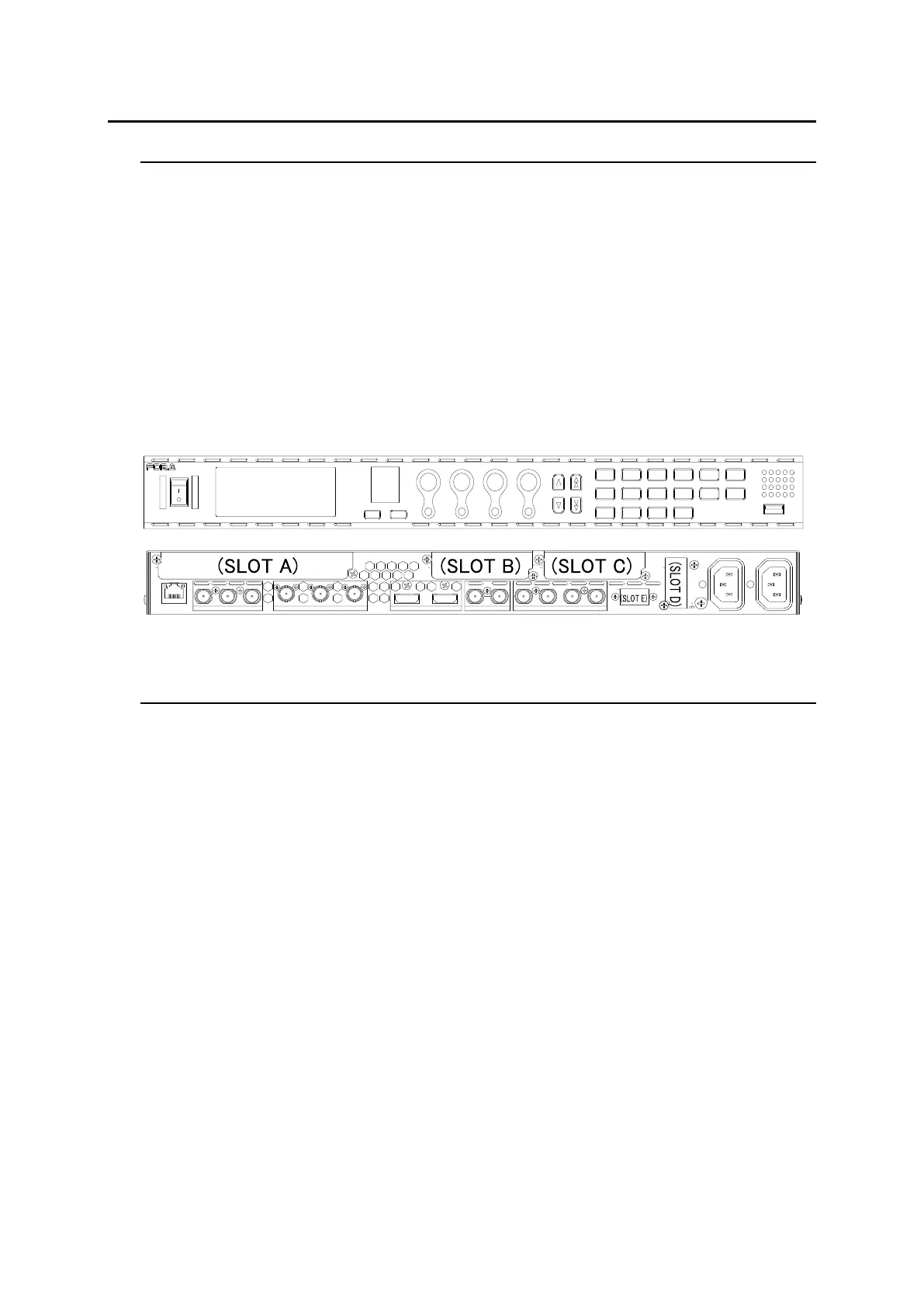

FA-9600 front and rear panels
1-2. Key Features
Dual channel signal processor (FS) with 2 inputs and 4 outputs for each
FA-964K option allows 4K/60p signals processing in either one of two FS channels
Optional cards allow the latest 12G-SDI interface
(*1)
and support from SD to 4K/60p
(*2)
HDMI ports as standard for various connectivity purposes
New Color Processor
ITU-R BT.2020 (WCG) and ITU-R BT.709 processing and conversion.
Various HDR/ SDR EOTF and OETF reduce differences with external devices.
Custom EOTF / OETF log curves and color space data upload from computer
Dynamic Range conversion for Display light, OOTF (HLG)
(*4)
SR-Live for HDR
(*5)
supported conversion
(*4)
Optional FA-96UDC converter
Up-/down-/IP-conversions
(*3)
, ranging from SD to HD/4K
(*2)
SQD / 2SI
(*2,*3)
and 3G-SDI Level-A/B
(*3)
conversion
4K conversion between Single-, Dual- and Quad-Link SDI signals (Gearbox)
(*2, *6)
Robust frame synchronizer with audio and SDI error correction
GUI software (full) and web browser (limited) control and SNMP monitoring (Support planned
in the future)
Miscellaneous options
-Digital audio input/output expansion card / Digital audio expansion cable
-Analog audio expansion
-MADI audio expansion
-3G-SDI input/output expansion
-12G-SDI 6-output expansion
-SFP cage card for 4 modules
