163
Normal
Normal
Invert
Sets the GPI alarm output signal logic.
Normal: Active low
Invert: Active high

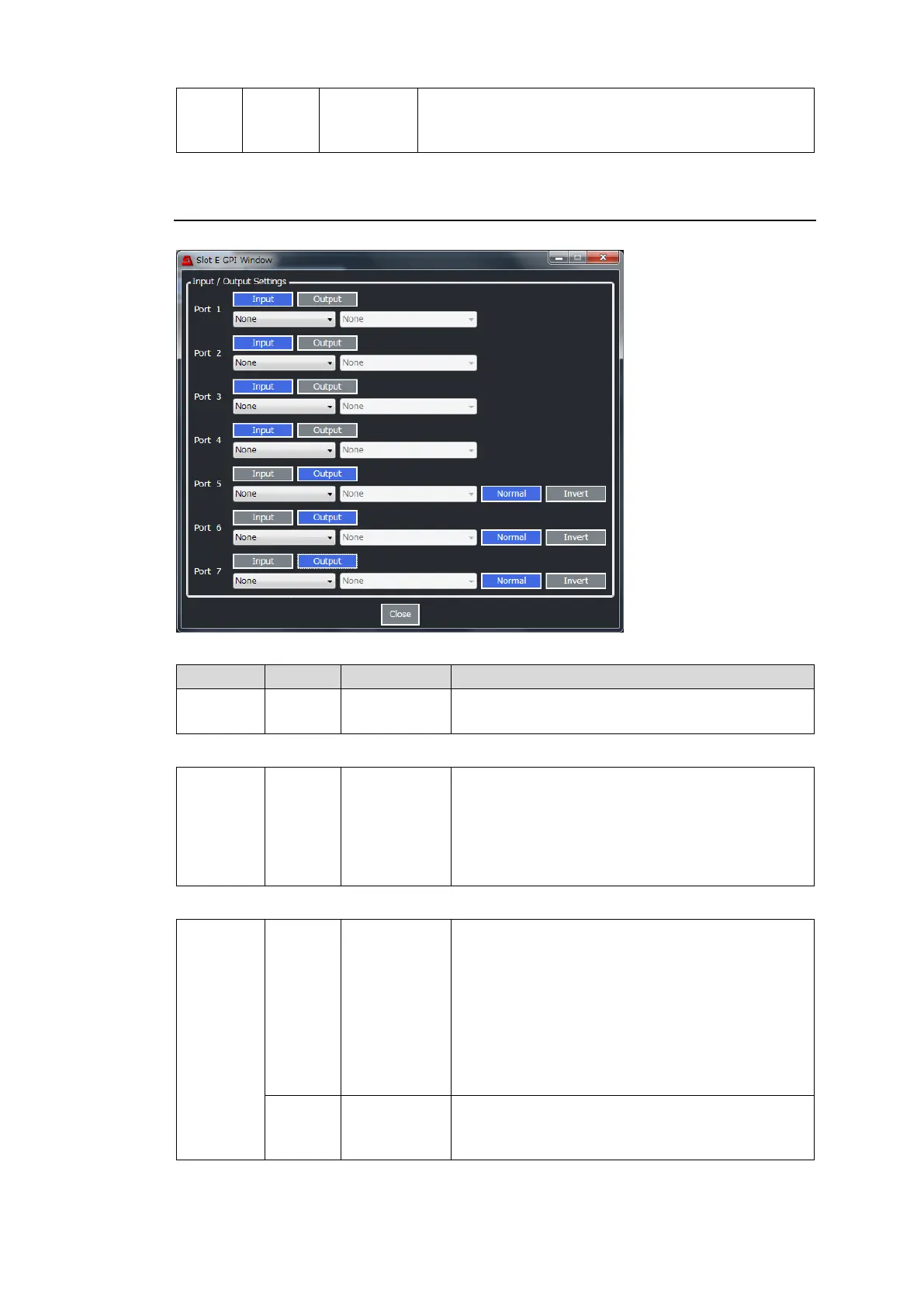

11-4-2. GPI Setting Screen (Slot E)
Click Slot E in the GPI tab window to display the setting screen.
Input / Output Settings
Item
Default
Setting
Description
Port 1-7
Input
Input
Output
Selects input or output for each GPI terminal.
Input Settings
Port 1-7
None
None
Event Save
Event Load
Assigns input functions to GPI pins.
None: No function
Event Save: Saves settings to event by selecting
an event number. (Event1-100)
Event Load: Loads settings from event by
selecting an event number. (Default, Event1-100)
Output Settings
Port 1-7
None
None
Unit Alarm
Video In
Audio In
Event Tally
Assigns output functions to GPI pins.
None: No function
Unit Alarm: Selects alarms for status notification.
Video In: Selects a video input for status
notification.
Audio In: Selects an audio input for status
notification.
Event Tally: Selects an event numbers used to
compare to FA-9600 settings.
Normal
Normal
Invert
Sets the GPI alarm output signal logic.
Normal: Active low
Invert: Active high
