FOR-A FA-9600 Series User Manual

22
12
GPI IN 5
13
DC IN or DC OUT
DC IN or OUT (+5.0 V) set by the jumper pin: JP1 (See the next page.)
Factory default: DC OUT
Total max load current is 500 mA.
14
GPI OUT 6
15
GPI OUT 7
16
GPI OUT 8
17
GPI OUT 9
18
GPI OUT 10
19
GND (Signal ground)
20
GPI IN 6
21
GPI IN 7
22
GPI IN 8
23
GPI IN 9
24
GPI IN 10
25
NC

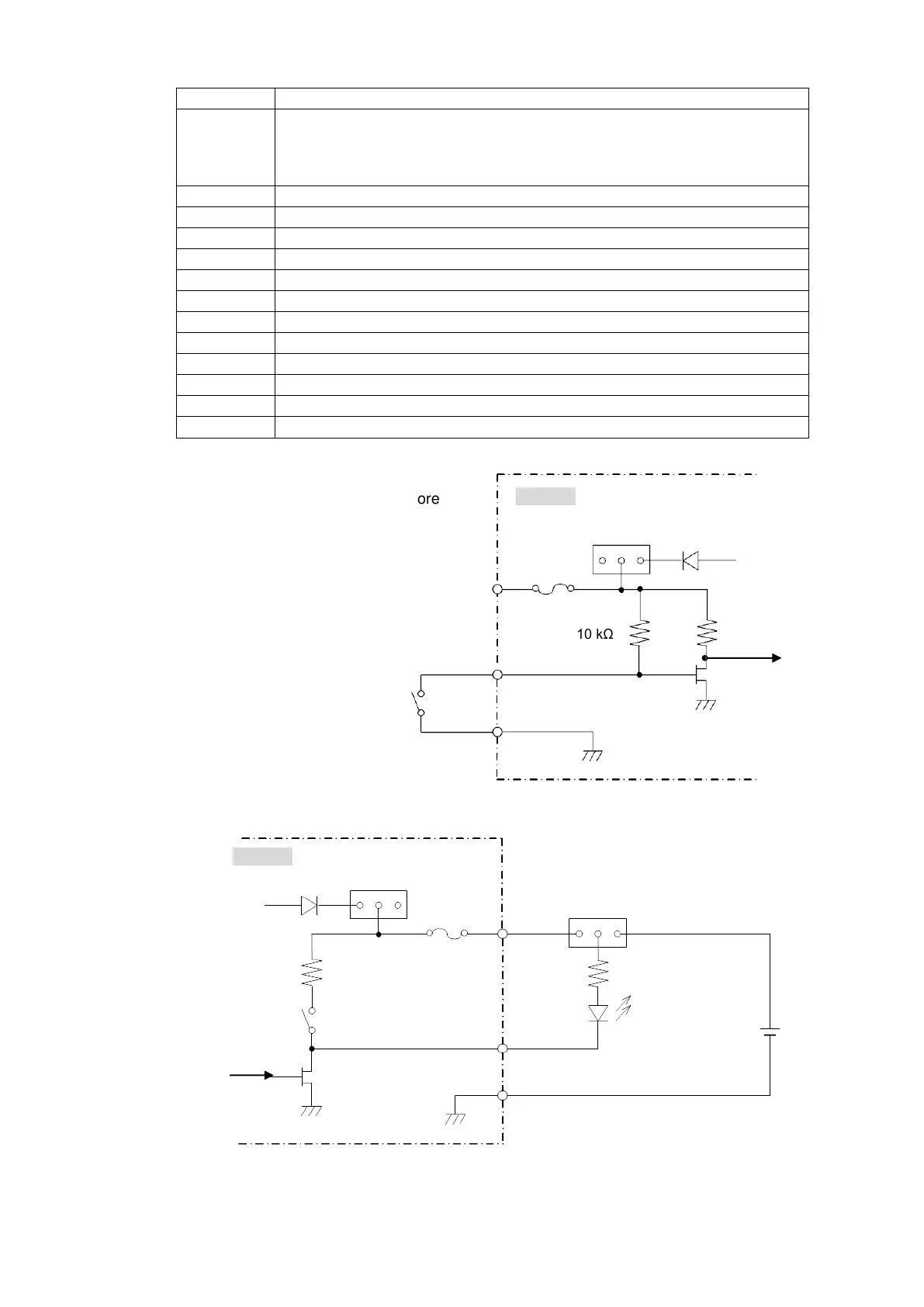

◆ GPI Input Circuit
GPI input pulse width: 100 ms or more
◆ GPI Output Circuit
10 kΩ
JP1
+5.0 V
FUSE
1
3
13 PIN
PIN 8-12, 20-24
PIN 1, 7, 19
FA-9600
JP1
+5.0 V
FUSE
PIN 13
PIN 2-6, 14-18
+5-24 V
External power
SW1 (1-4)
SW2 (1-4)
SW3 (1-2)
Max. 50 mA
PIN 1, 7, 19
3
1
FA-9600
10 kΩ
