Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)

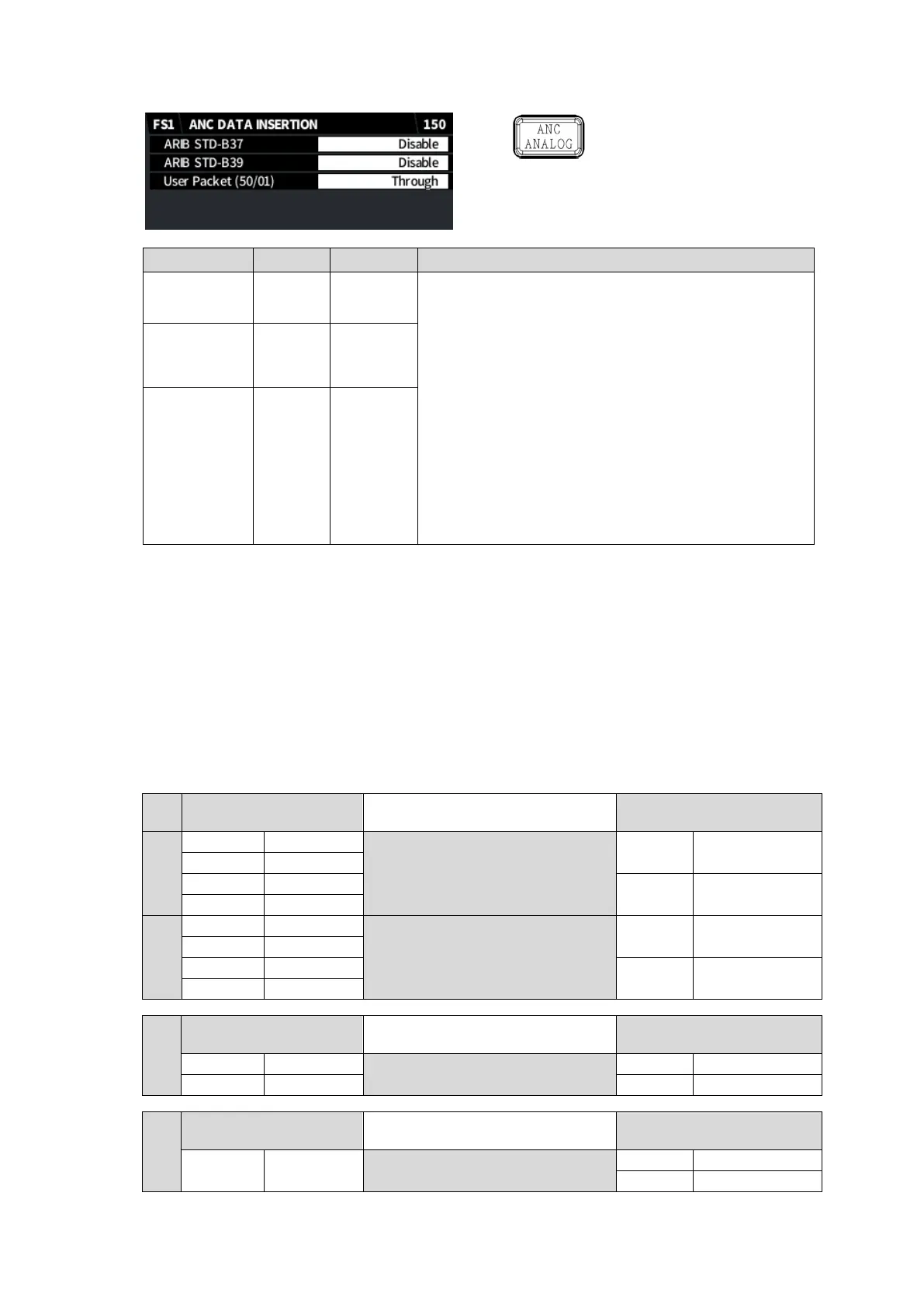

Disable: Disables ANC data insertion.
Through: The packet data is extracted from the SDI
signal and inserted directly into an appropriate place on
the SDI output whose line number varies depending on
the signal format. The packets may be lost or
overlapped due to timing alignment, if the input signal is
not synchronized with the reference.
User packet insertion line can be specified in the ANC
USER PACKET menu (see Sec. 5-38).
Overwrite: Inserts the packet defined in ARIB STD-B39
by partially rewriting the input data (video mode / audio
(expansion) mode). The additional information should
be set under Audio Method and Audio Mode Data in the
"AUDIO MUX MODE (ARIB STD-B39)" menu. (See
Sec. 6-4)
Disable
Through
Overwrite
User Packet
(DID/SDID)
(*1)
(*1) Planned for future support
<Process Delay>
This process requires up to 2 frames. So, if the synchronizer operates in Line or AVDL mode, where
the I/O delay is smaller, the packets may be delayed against video by 2 frames. To compensate for
such a situation, use the converter delay line to add a delay to video. If video signals are delayed by
more than 2 frames due to conversion process, the delay time is automatically added to ANC
packet data.
<User Packet Insertion on Format Conversions>
I: Interlace and 3G Level-B
P: Progressive
PsF: Segmented frame
P to P conversion
(Framerate reduced by half)
Allows one packet per 2 frames.
Allows one packet per 2 frames.
P to I(PsF) conversion
(more than 30 frames)
60/59.94/50i(30/29.97/25PsF)
Inserts frame packets to fields.
P to P conversion
(Framerate doubled)
Inserts one packet per 2 frames
