2D Mode
5.13 Trapezoid Mode
Advantage of the Trapezoid mode:
The scan area is increased in relation to the linear display by steering the ultrasound lines in the border
of the probe.

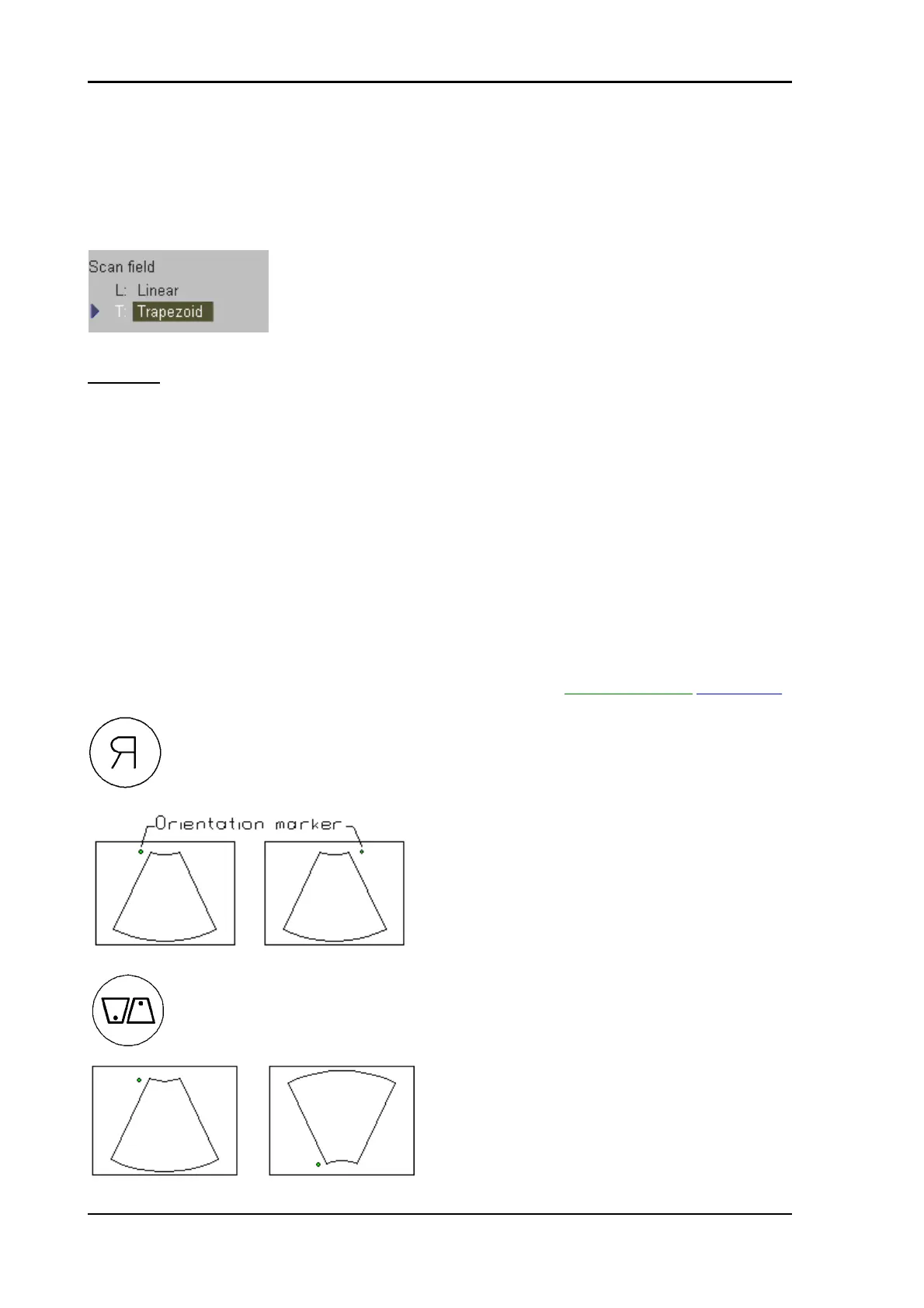

Selection of Linear- or Trapezoid mode display
The actual mode is marked (e.g., Trapezoid).
Remarks:
* This key appears automatically in the 2D mode menu, if the selected probe is capable
of Trapezoid mode.
* Trapezoid mode is possible in Doppler- and Color mode without restrictions.
5.14 Image Orientation
(Left/ Right, Up/ Down)
With this function the image orientation on the screen in relation to the patient is alternated between
left and right without rotating the scan head itself. The orientation marker shows the actual orientation.
For the relationship between marker and design of the probe, review: Probes and Biopsy
(chapter 20).
Press the [left/right] key on the control panel to alternate between left and right image
orientation.
Press the [up/down] key on the control panel to alternate between up and down image
orientation.
