14.7.4.9.2 To measure all Items at a Time
1. Press the [Calc] key.

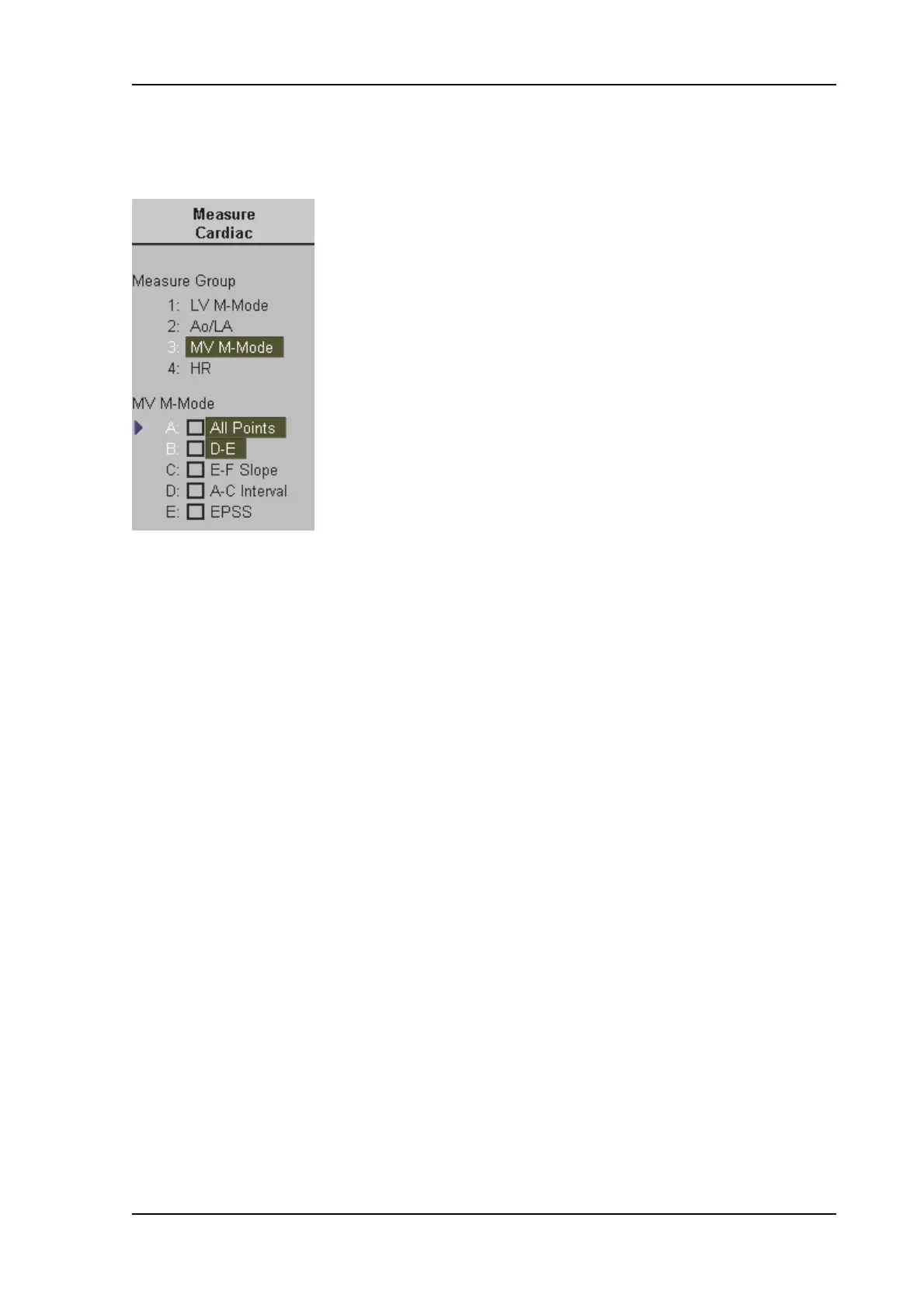

The Cardiac calculations menu appears in the menu area.
2. Select [MV M-Mode] and select [All Points].
3. The +
D
cursor appears on the M Mode image.
Move the cursor to the D point and press the right or left trackball
key to fix the mark.
4. The +
E
cursor appears on the screen.
Move the cursor to the E point and press the right or left trackball
key to fix the mark.
5. The +
F
cursor appears on the screen.
Move the cursor to the F point and press the right or left trackball key to fix the mark.
6. The +
A
cursor appears on the screen.
Move the cursor to the A point and press the right or left trackball key to fix the mark.
7. The +
C
cursor appears on the screen.
Move the cursor to the C point and press the right or left trackball key to fix the mark.
8. The +
EPSS
cursor appears on the screen.
Move the cursor to the EPSS point and press the right or left trackball key to fix the mark.
D : End of systolic, immediately before the opening of the Mitral Valve.
E : The anterial leaflet of the mitral valve opens, it peaks at E.
F : Lowest point of the initial diastolic closing.
A : In atrial systole, blood is propelled through the mitral orifice and the mitral leaflets reopen.
The peak of this phase of mitral valve motion is indicated as A.
C : Complete closure occurs after the onset of the ventricular systole.
EPSS Distance between the Mitral Valve E point and the posterior edge of the interventricular
septum at the same point in time.
