Basic Measurements
13.1 Basic Operations
Note: Measurements are possible in read mode only.

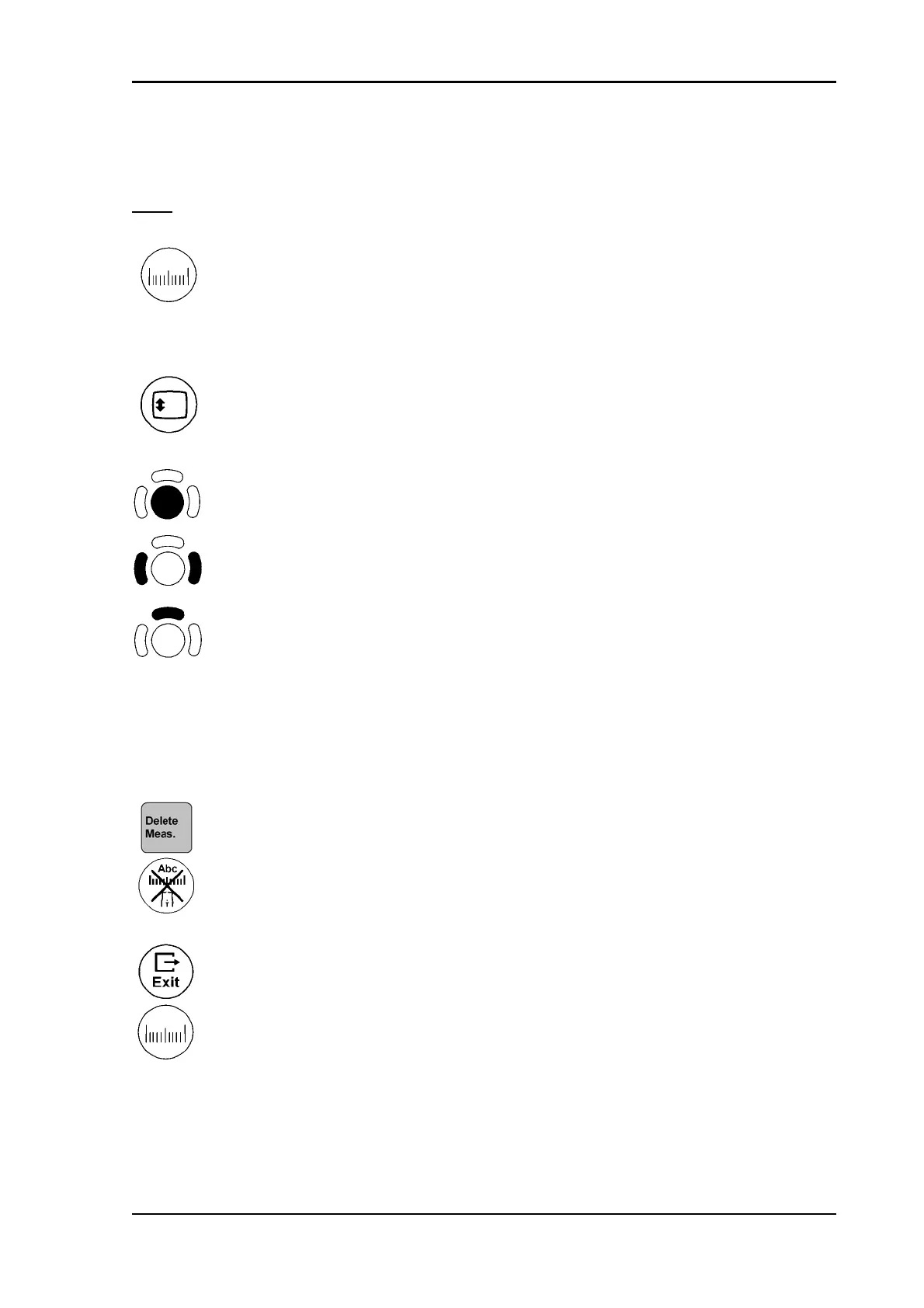

By pressing the [Caliper] key on the control panel the Basic Measurement function is
switched on.
Selection of the desired measurement marks is done with the navigation wheel or by
pressing the corresponding keyboard shortcut.
If the [Trackball Menu Navigation] key is illuminated, the trackball is consequently
assigned to select the menu items in the menu area on the left side of the screen.
Pressing the left or right trackball key [Set] starts selected menu function.
Positioning of measuring marks is done with the trackball.
Entering and storage of measuring marks is done with the right or left trackball key
[Set].
To change measuring marks before completion press the upper trackball key [Change].
• Moving the trackball after completion of a measurement activates the next measurement.
• When the result display is full, (max. 4) the first measurement will be overwritten first.
• When starting a new scan previously set measuring marks are erased.
To erase measurement results:
- press the [Delete Meas.] key on the keyboard,
- or press the [Clear all] key on the control panel
To exit the Basic Measurement program:
- press the [Exit] key on the control panel,
- or press the [Caliper] key on the control panel
Voluson
®
730Pro - Operation Manual
105831 Rev. 0 13-3
