12.1.4 Chroma Map
This defines the relation between echo amplitude (input) and Chroma value (Color tone and
saturation) in a look-up table. The brightness is defined by the actual Gray Map. You can select from a
total of 5, an independent map for each one of the 2D-, D-, M-, or 3D-Imaging modes.
(for example: Candle for 2D Imaging and blue for M-Imaging, etc.)

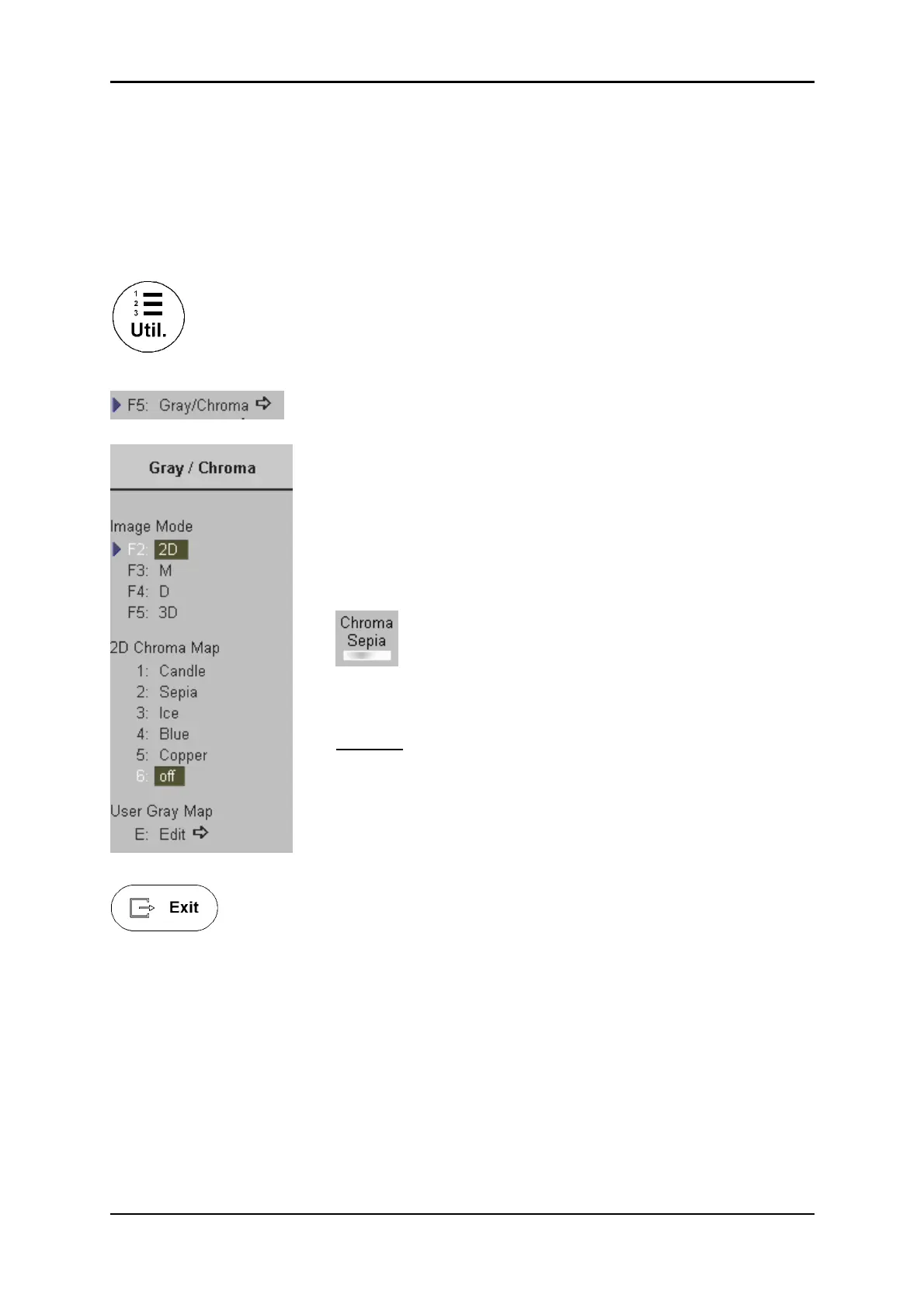

1. Press the [Utilities] key regardless which mode is active.
2. Select [Gray/Chroma]. The “Gray Chroma” menu will appear.
3. Select the mode to be colored (2D, M, D, 3D).
key illuminated: Chroma map selection assigned to this mode.
4. Highlight and select a Chroma map.
The selected Chroma map is switched on and
assigned to the selected mode.
Remarks
:
The input for the Chroma map are the values given by the actual gray
map.
Therefore the Chroma map can be modified by altering the gray map.
Return to the last active menu.
