Utilities

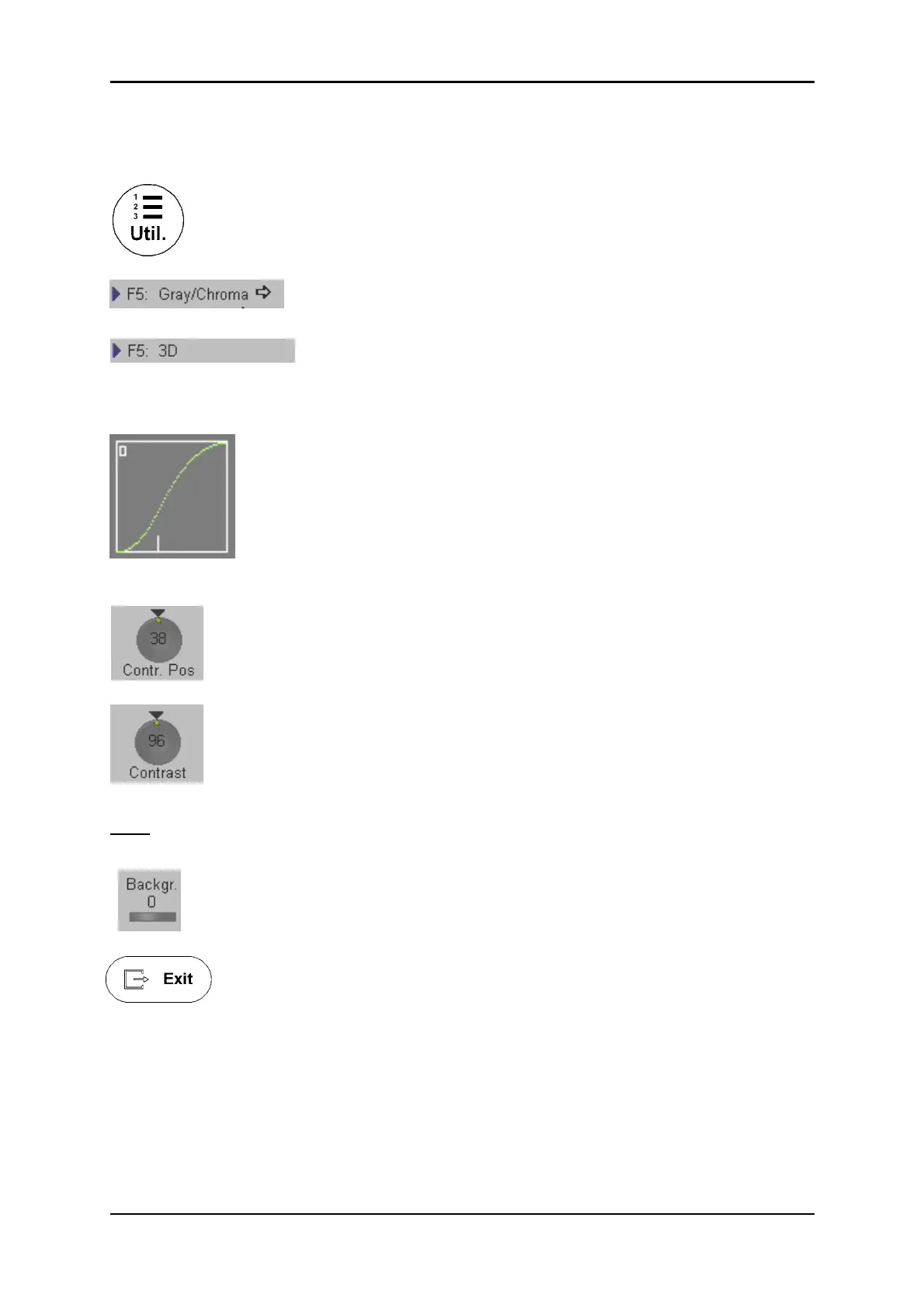

12.1.2 3D Gray Map
1. Press the [Utilities] key after a volume acquisition.
2. Select [Gray/Chroma] to display the “Gray Chroma” menu.
3. Select the [3D] Gray map display mode.
Graphic display on screen:
This graphic is provided only for the 3D/4D image.
Horizontal axis: gray values from 0 to 255
Vertical axis : brightness from black to white
4. Set the start point of gamma curve bend.
5. Set the contrast of the curve.
Note:
These settings require an alert observation of the influence on the 3D image!
Adjust the contrast of the screen background from dark to bright. This function is only of
significance in B scanning, when a part of the screen background is visible.
Return to the last active menu.
Voluson
®
730Pro - Basic User Manual
12-4 105831 Rev. 0
