Volume Mode
Note:
For faster rotating press on the digipots control (switch function: slow rotation , fast rotation).

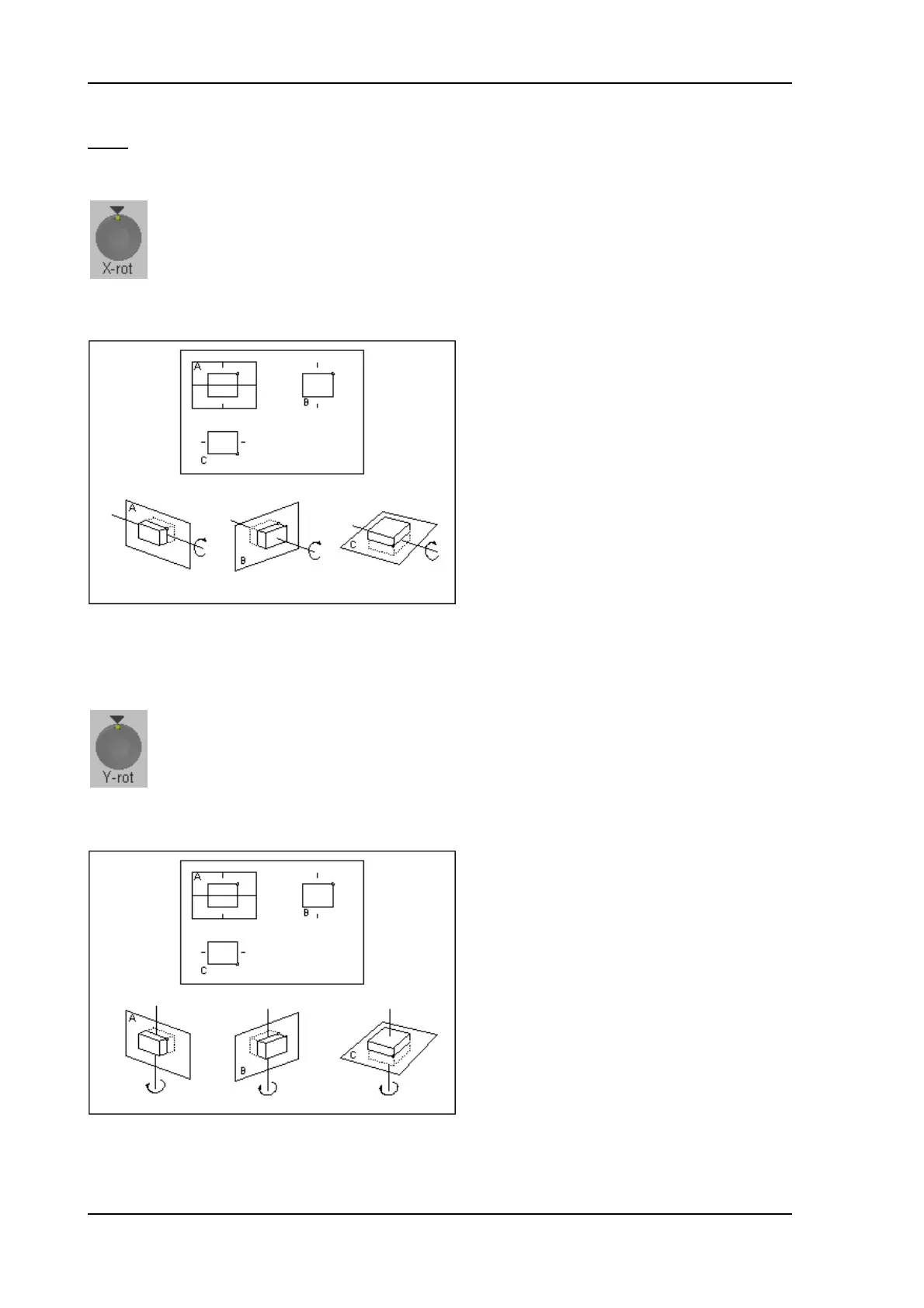

Rotation about the X-axis of a reference image (e.g. A).
Clockwise turn of the [X-axis] rotary control :
By the clockwise rotation of the volume body in relation to the screen plane (as shown) the new
sectional planes are calculated in real time and displayed on screen.
Rotation about the Y-axis of the reference image (e.g. A).
Clockwise turn of the [Y-axis] rotary control :
By the clockwise rotation of the volume body in relation to the screen plane (as shown) the new
sectional planes are calculated in real time and displayed on screen.
Voluson
®
730Pro - Basic User Manual
11-20 105831 Rev. 0
