Volume Mode

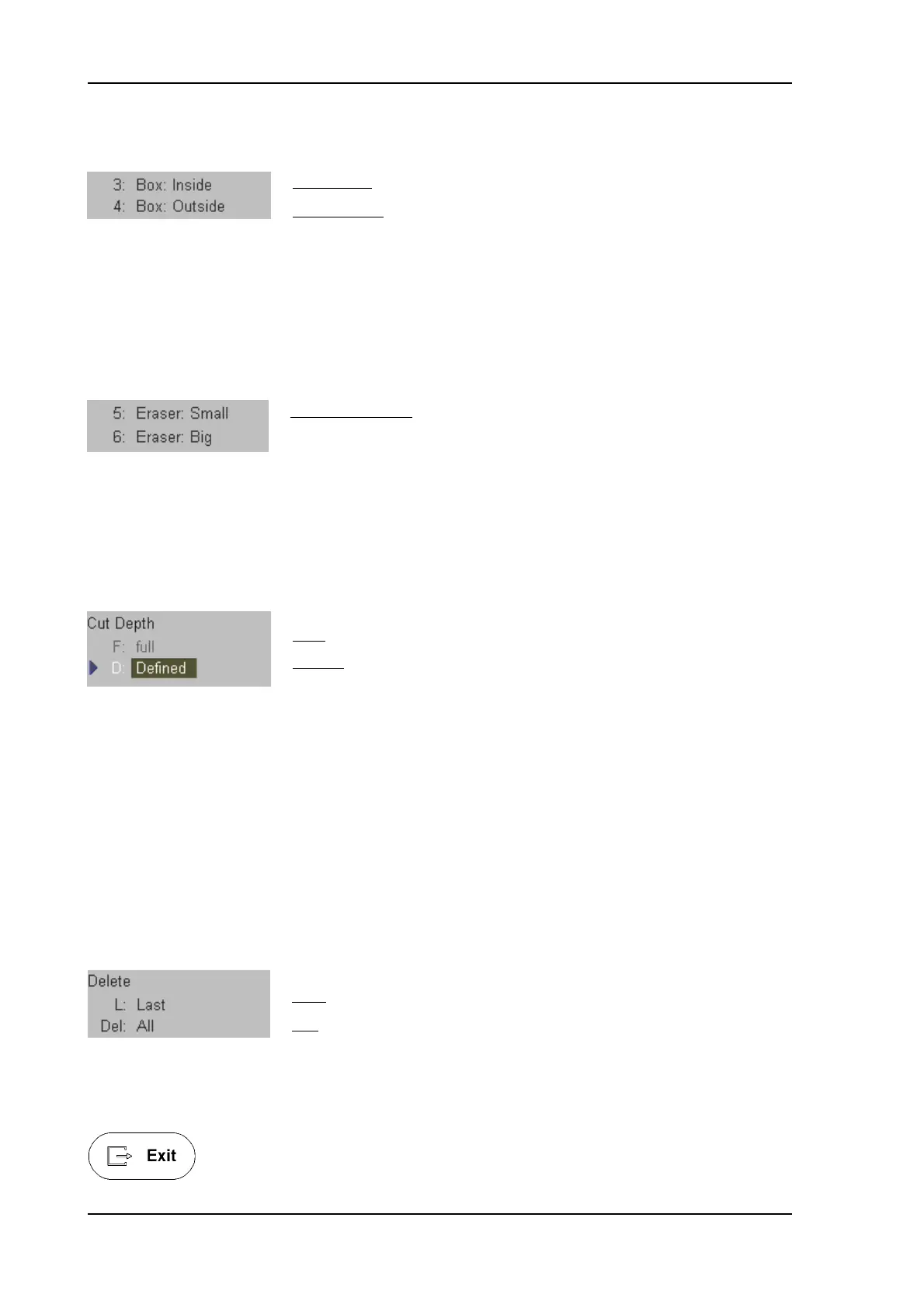

• Box inside, Box outside
Box Inside:
All information inside the box will be cut.
Box Outside:
All information outside of the box will be cut.
Position the left upper point with the trackball and enter it with the right or left trackball key [Set].
Position the right lower point with the trackball in a diagonal fashion to create a box.
The red trace of the box is displayed immediately. Press the right or left trackball key [Set] again.
The region inside/outside the box will be cut from the 3D rendered image.
• Eraser
Eraser Small/Big:
All information underneath the eraser will be cut.
Position the first point, enter it with the right or left trackball key [Set] and move the eraser over the
part the of image to be erased. Press the right or left trackball key [Set] again.
The region underneath the eraser will be cut from the 3D rendered image.
4. Cut Depth
Full:
The whole depth of the selected region will be cut.
Define: Select the cut [Depth] you want with the flip switch control.
Position the first point, enter it with the right or left trackball key [Set] and move the cross along the
desired trace. Press the right or left trackball key [Set] again Use the [Depth] key to define the cut.
To finish: Press the right or left trackball key [Done].
The region underneath the trace will be cut from the 3D rendered image.
5. Perform the next cut
Rotate rendered image to another position and continue with points 2. to 4. again.
6. Cut Undo
Last:
Erases the last cut done (one after the other).
All:
Erases all cuts performed.
7. Switch off MagiCut mode
Press this key on the control panel. The “Static 3D” menu appears again.
