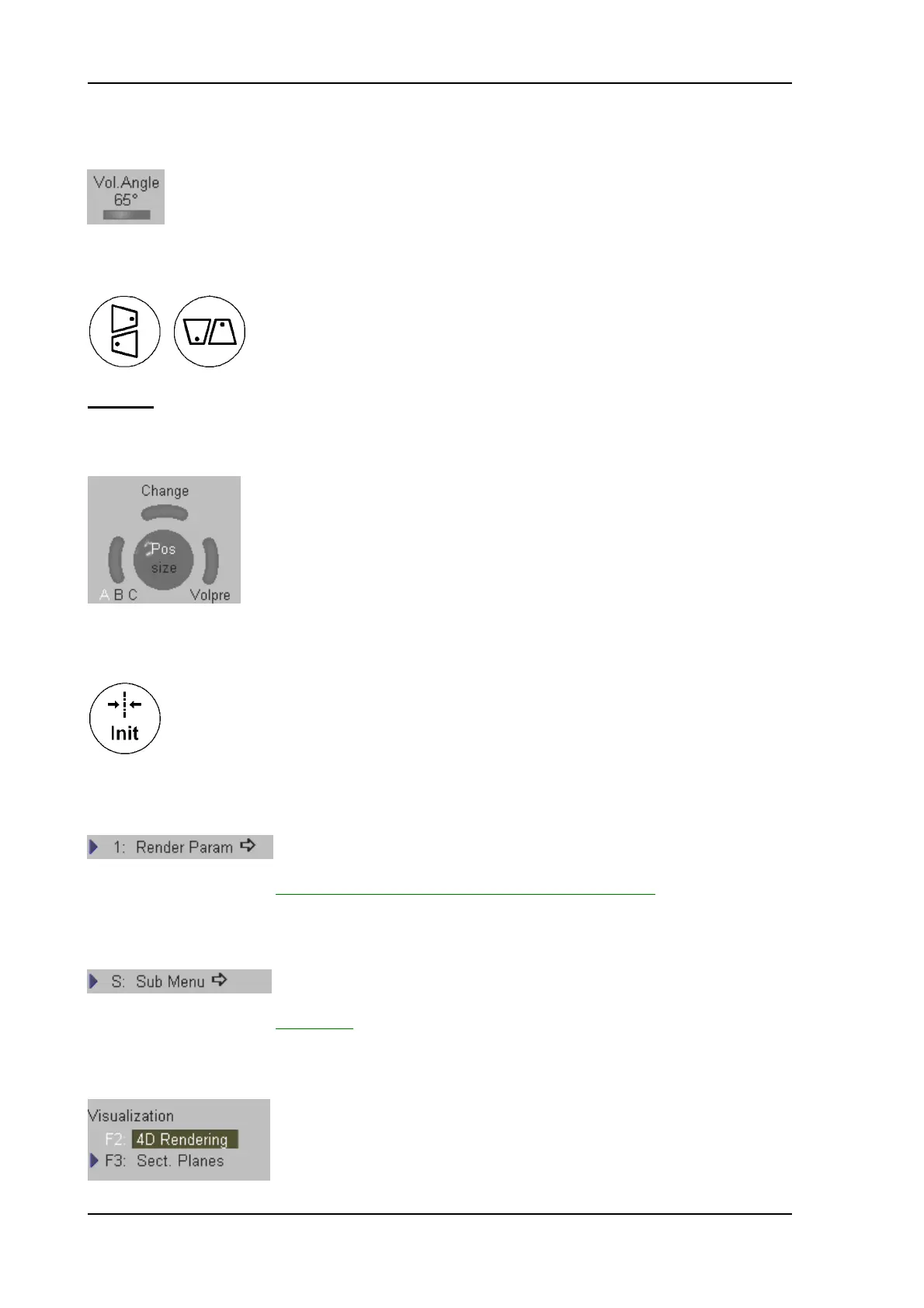

Volume Mode
To set the Volume Angle
Set the volume sweep angle.
Image Orientation of Real Time 4D image
With these keys on the control panel the image orientation of the 3D image
can be changed.
The image orientation of the sectional planes is also changed.
Remark:
The 3D image orientation can be changed in read- or write mode.
Choosing a Reference Image
With this function the Reference Image can be changed.
Choosing a reference image automatically determines the control functions
of the rotary controls and the trackball for the liberal adjustment of a
sectional plane. The one chosen for reference is marked yellow. The image
plane is highlighted by a box.
To select the Init position
Pressing the [Init] key on the control panel resets the rotations of a volume section to
the initial (start) position.
The center of rotation lies in the middle of the central ultrasound line (in the middle of
the scanned volume body, respectively).
To select the Render Mode
Select the [Render Param] item.
The “Render Mode” menu appears in the menu area on the monitor.
For further details review: Render Parameter – Basic Mode and Render Algorithm
(chapter 11.4.2).
To invoke the Sub Menus
Select the [Sub Menu] item.
The “3D/4D Sub Menu” appears in the menu area on the monitor.
For further details review: Sub Menus
(chapter 11.3).
To change between different “Visualization” modes
Select the available items during / after Real Time 4D acquisition
to change to different “Visualization” modes.
Voluson
®
730Pro - Basic User Manual
11-62 105831 Rev. 0
