Operation Manual - Routing Protocol
Quidway S3500 Series Ethernet Switches Chapter 3 RIP Configuration
Huawei Technologies Proprietary
3-12
3.4.2 Networking diagram
Ethernet
Network address:
110.11.2.2/24
Network address:
117.102.0.0/16
Network address:
196.38.165.0/24
Interface address:
110.11.2.1/24
Interface address:
117.102.0.1/16
Interface address:
155.10.1.1/24
Network address:
155.10.1.0/24
Interface address:
196.38.165.1/24
SwitchA
SwitchB
SwitchC

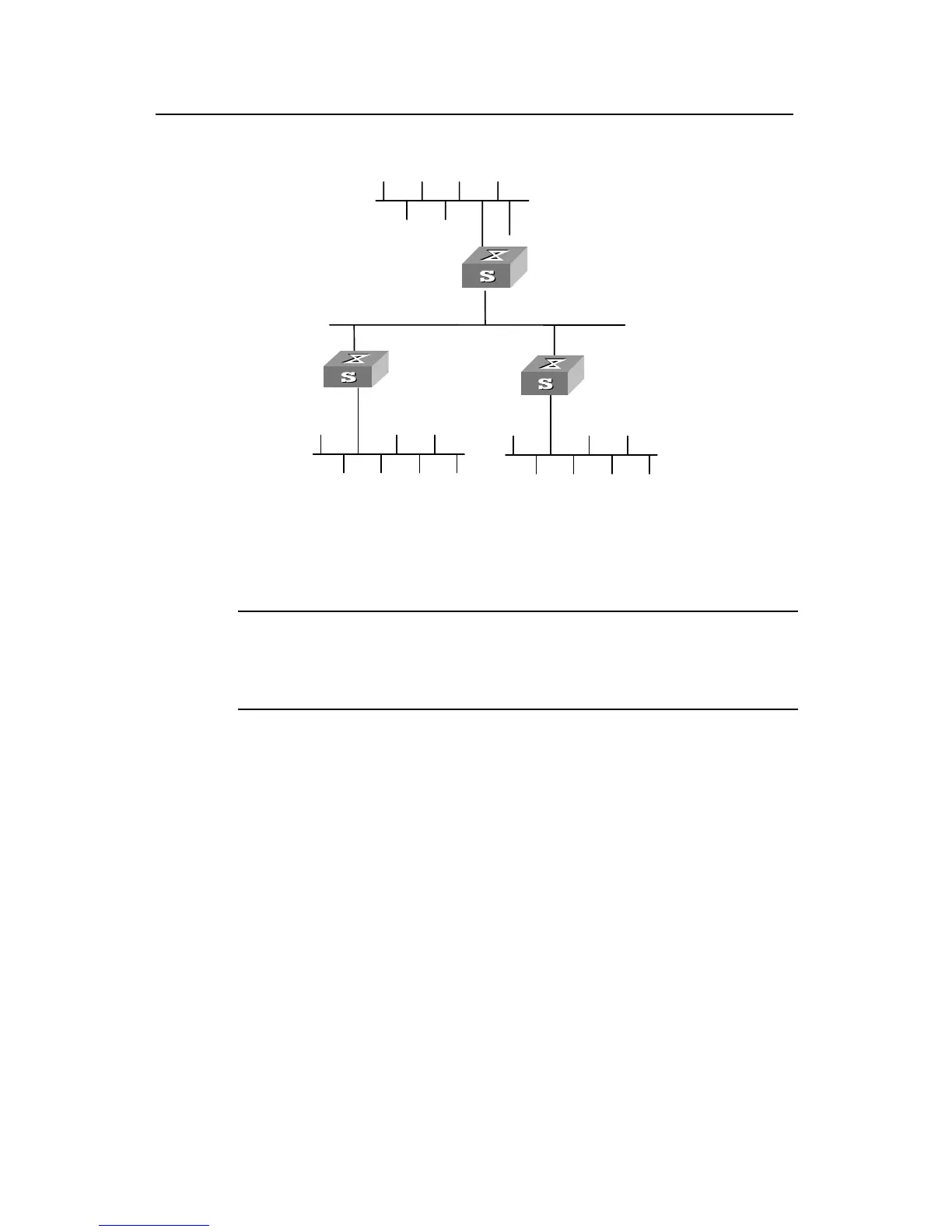

Figure 3-1 RIP configuration networking
3.4.3 Configuration procedure
 Note:
The following configuration only shows the operations related to RIP. Before performing
the following configuration, please make sure the Ethernet link layer can work normally.
1) Configure Switch A:
# Configure RIP
[Switch A] rip
[Switch A-rip] network 110.11.2.0
[Switch A-rip] network 155.10.1.0
2) Configure Switch B:
# Configure RIP
[Switch B] rip
[Switch B-rip] network 196.38.165.0
[Switch B-rip] network 110.11.2.0
3) Configure Switch C:
# Configure RIP
